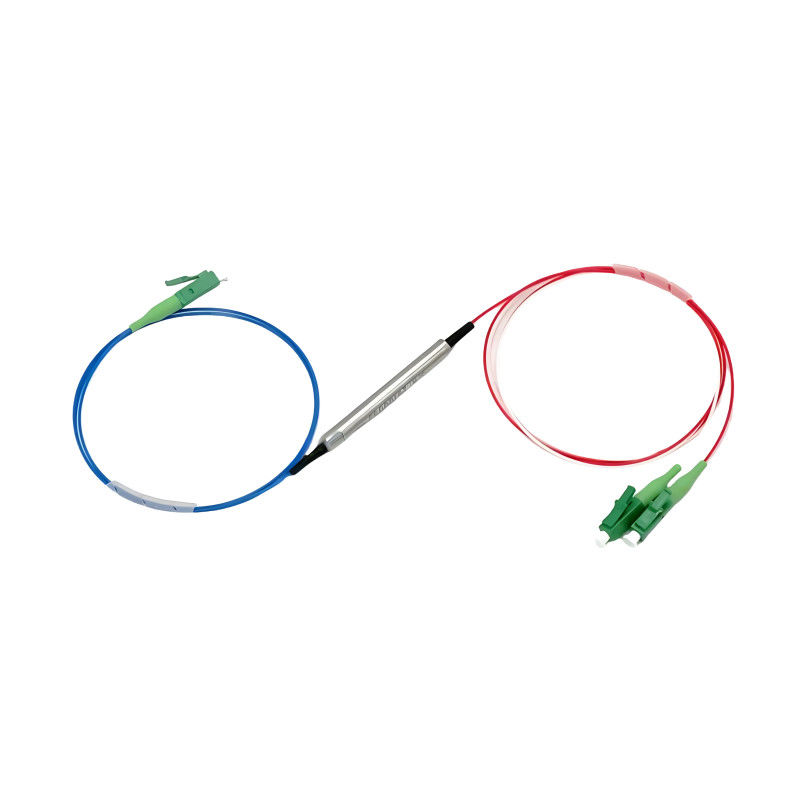

High Isolation 3 Port Optical Circulator 1310 or 1550nm Precision Tuned Wavelength Alignment Telecom Grade Low IL Design

High Isolation Optical Circulator

Telecom Grade Optical Circulator

3 Port Optical Circulator

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC ISO9001

Model Number:

HJY-OC-1550-3P-4

Request A Quote

Product Details

Wavelength Range:

1310nm Or 1550nm

Storage Temperature:

-40℃ To +85℃

Operating Temperature:

-5℃ To +70℃

Configuration:

3port, 4port

Package Dimension:

Stainless Steel Tube 5.5*50mm

Connector Type:

FC/APC, FC/PC, SC/APC, SC/PC, LC/APC, LC/PC

Highlight:

High Isolation Optical Circulator

Telecom Grade Optical Circulator

3 Port Optical Circulator

Payment & Shipping Terms

Minimum Order Quantity

10 pcs

Price

1~999

Packaging Details

Roll, Neutrial Packing or with OEM LOGO

Delivery Time

5~8 working days

Payment Terms

T/T,Western Union,L/C

Supply Ability

100,000 pcs

Multi Scenario 3 Port Circulator 1310nm or 1550nm High Power Handling 30dBm Lab Industrial Hybrid Design

Get Best Price

Video

Broad Spectrum 3 Port Optical Circulator 1310nm or 1550nm AR Coated Interfaces Data Center Grade Reliability

Get Best Price

Video

Ultra Low Insertion Loss Tri Port Circulator 1310 or 1550nm Wide Operating Bandwidth Laser and Telecom Compatible

Get Best Price

Video

Industrial Temp 3 Port Fiber Circulator 1310 or 1550nm Polarization Insensitive Optics DWDM EDFA System Ready

Get Best Price

8613556217949

francesgdut@gmail.com

Contact Now

Product Description

High Isolation 3 Port Optical Circulator 1310 or 1550nm Precision Tuned Wavelength Alignment Telecom Grade Low IL Design

HJY's Optical Circulator is a non-reciprocal passive device that directs light signals sequentially between ports (e.g., Port 1→2, Port 2→3, Port 3→1). It utilizes Faraday rotation and birefringent crystals to enable bidirectional optical routing with minimal loss. Key features include low insertion loss, high isolation, and compact design, making it ideal for telecommunications, fiber sensing, and dense wavelength-division multiplexing (DWDM) systems.

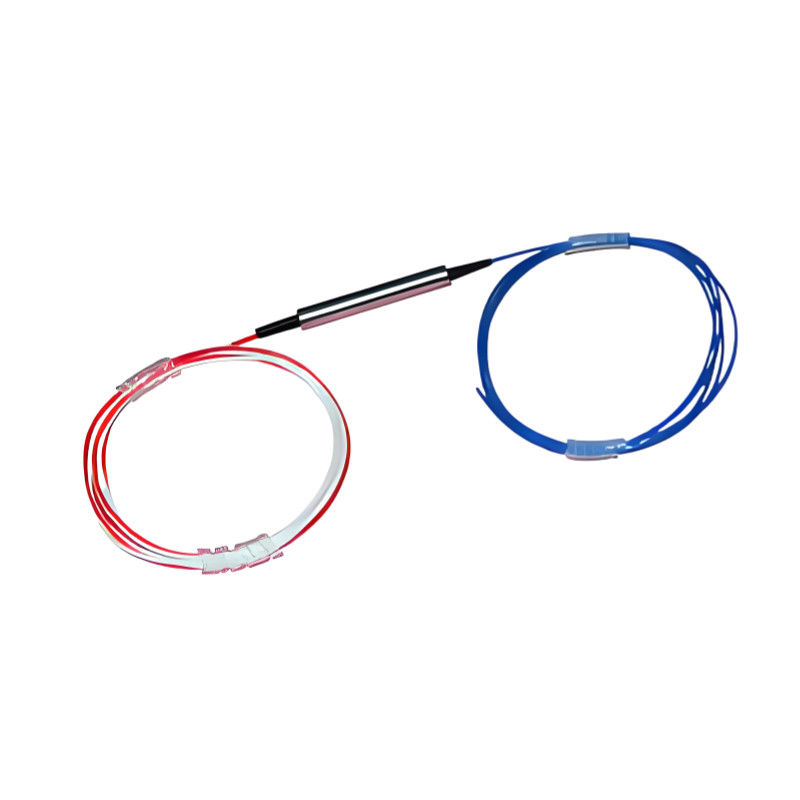

High Isolation 3 Port Optical Circulator 1310 or 1550nm Precision Tuned Wavelength Alignment Telecom Grade Low IL Design 0

Features	Application
•High Channel Isolation •Low Insertion Loss •High Return Loss •High Stability and Reliability	•Optical Fiber Amplifier •CATV Optical Fiber Link •Optical Fiber System testing •Dispersion Compensation

Application Diagram:

Circulator can be used to send optical signals through a single fiber in two directions. As the picture shows: A circulator is located at both ends of the fiber. Each circulator functions to add a signal in one direction while removing the signal in the other. see the example to the left.

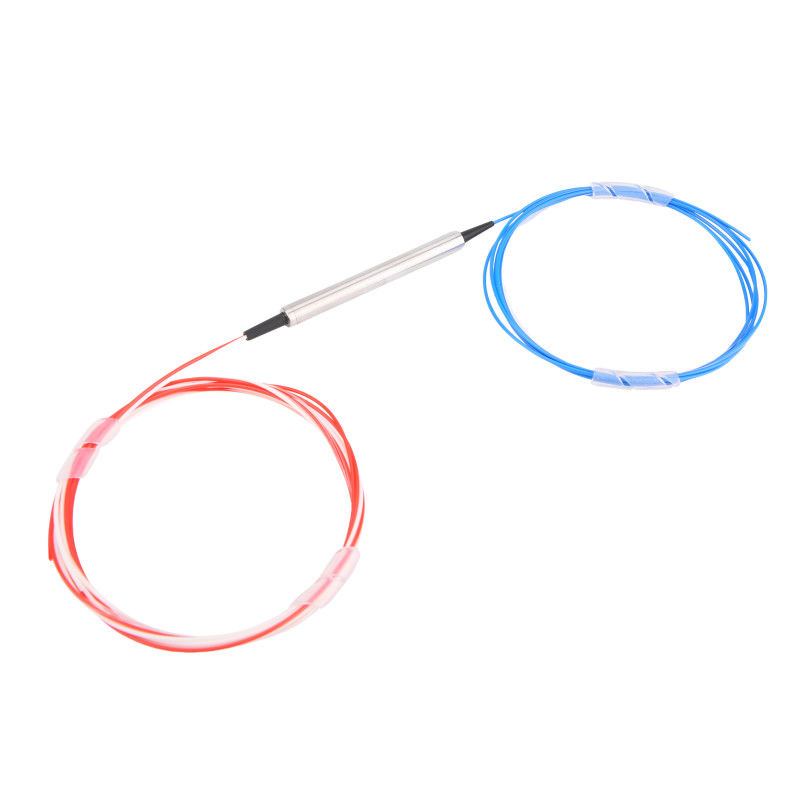

High Isolation 3 Port Optical Circulator 1310 or 1550nm Precision Tuned Wavelength Alignment Telecom Grade Low IL Design 1

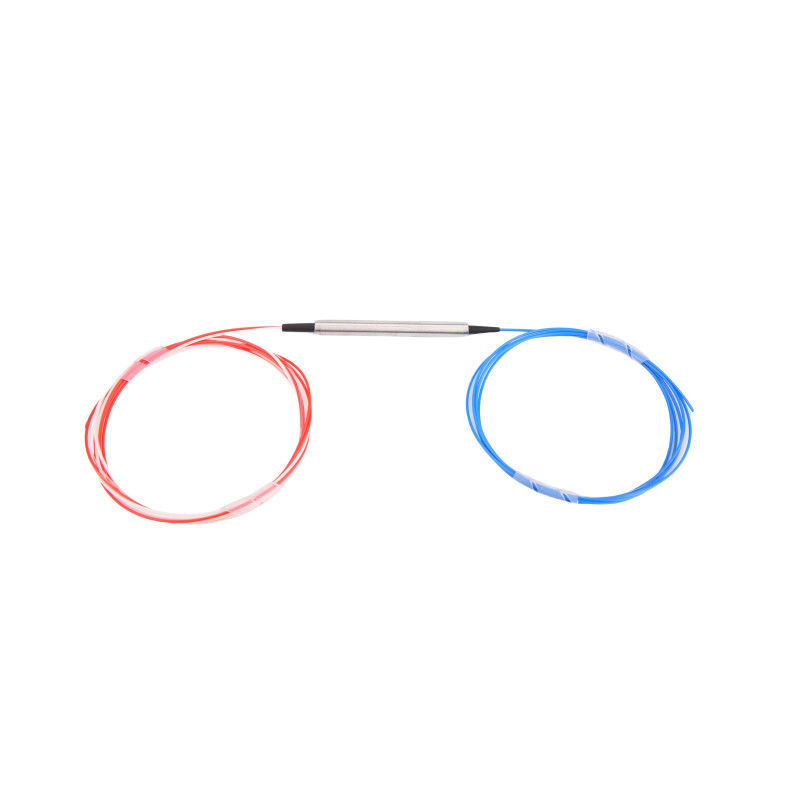

High Isolation 3 Port Optical Circulator 1310 or 1550nm Precision Tuned Wavelength Alignment Telecom Grade Low IL Design 2

Category	Types	Key Features
Port Configuration	3-Port	Standard unidirectional flow (Port 1→2→3→1)
	4-Port	Extended routing for complex network topologies
Application Grade	Telecommunication-Grade	High reliability for long-haul networks
	Industrial-Grade	Ruggedized for harsh environments (e.g., sensing)

Parameter		1310	1550	C&L	1610
Operation Wavelength (nm)		1280~1340	1520~1580	1525 ～ 1610	1580~ 1660
Configuration		Port1 to Port 2； Port2 to Port3
Grade		P
Insertion Loss(dB)	Typical	0.6
	Maximum	0.8
Channel Max. Isolation (dB)		50
Channel Min. Isolation(dB)		40
Directivity( (dB)		50
PDL (dB)		<0.15
PMD(ps)		<0.1
RL (dB)		>50
Bandwidth (nm)		+/-30
Max Operating Power (mW)		500
Operating Temperature (℃)		0~+70
Storage Temperature (℃)		-40~+85
Fiber type		Corning SMF-28e
Dimension (mm)		1． Φ5.5xL50 ( bare fiber or 900um Loose tube
		2. L90xW20xH9.5( 2.0mm or 3.0mm Cable)

‌Ordering Information‌

‌Model No.‌	‌Wavelength (nm)‌	‌Port Configuration‌	‌Insertion Loss (dB)‌	‌Isolation (dB)‌	‌Package Type‌
HJY-OC-1310-3P	1310	3-Port	≤ 0.8	≥ 50	Miniature
HJY-OC-1550-3P	1550	3-Port	≤ 0.8	≥ 50	Miniature
HJY-OC-1310-4P	1310	4-Port	≤ 1.0	≥ 45	Miniature
HJY-OC-1550-4P	1550	4-Port	≤ 1.0	≥ 45	Miniature
