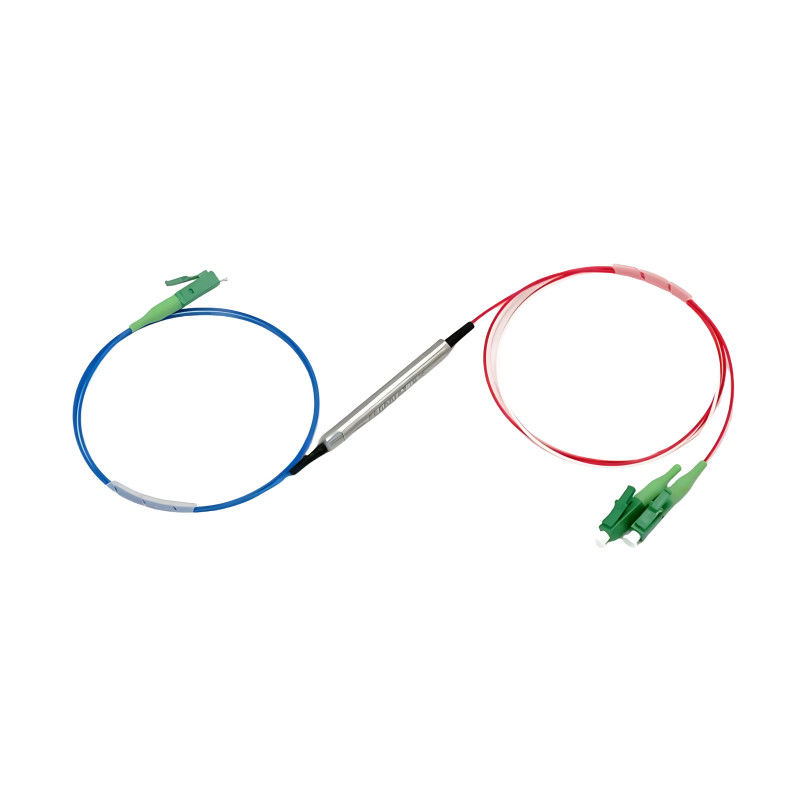

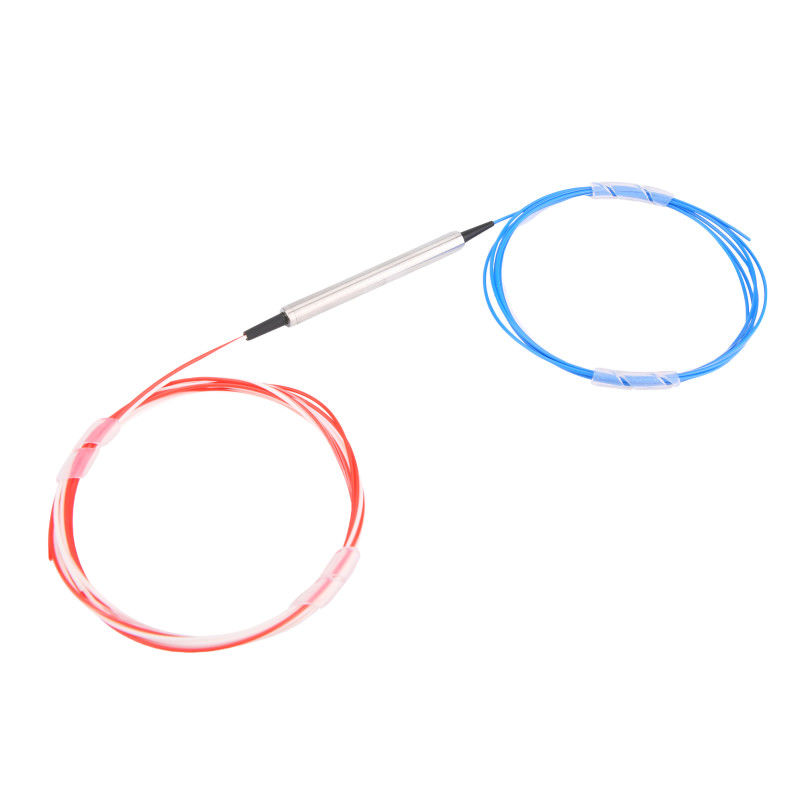

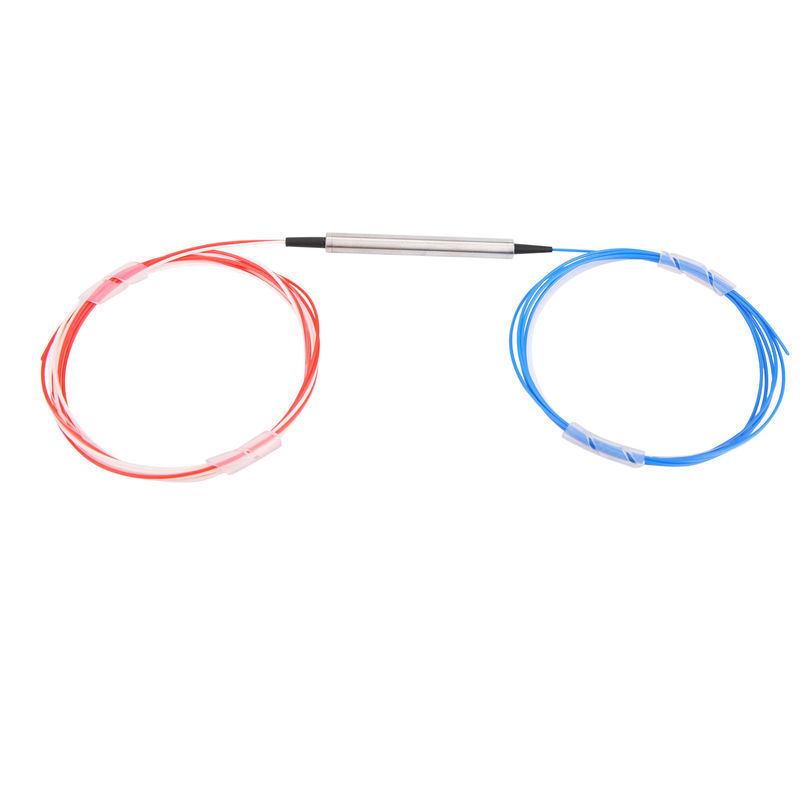

Compact and High-Performance 1310nm or 1550nm 3 Port Optical Circulator In Optical Communication

1310nm Optical Circulator

1550nm 3 port optical circulator

1310nm circulator in optical communication

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC ISO9001

Model Number:

3 Ports Optical Circulator

Request A Quote

Product Details

Insertion Loss:

≤0.8dB

Pdl:

≤0.2dB

Wavelength Range:

1310nm - 1550nm

Storage Temperature:

-40℃ To +85℃

Isolation:

≥40dB

Operating Temperature:

-5℃ To +70℃

Return Loss:

≥50dB

Highlight:

1310nm Optical Circulator

1550nm 3 port optical circulator

1310nm circulator in optical communication

Payment & Shipping Terms

Minimum Order Quantity

10 pcs

Price

1~999

Packaging Details

Roll, Neutrial Packing or with OEM LOGO

Delivery Time

5~8 working days

Payment Terms

T/T,Western Union,L/C

Supply Ability

100,000 pcs

Multi Scenario 3 Port Circulator 1310nm or 1550nm High Power Handling 30dBm Lab Industrial Hybrid Design

Get Best Price

Video

Broad Spectrum 3 Port Optical Circulator 1310nm or 1550nm AR Coated Interfaces Data Center Grade Reliability

Get Best Price

Video

Ultra Low Insertion Loss Tri Port Circulator 1310 or 1550nm Wide Operating Bandwidth Laser and Telecom Compatible

Get Best Price

Video

Industrial Temp 3 Port Fiber Circulator 1310 or 1550nm Polarization Insensitive Optics DWDM EDFA System Ready

Get Best Price

8613556217949

francesgdut@gmail.com

Contact Now

Product Description

Compact and High-Performance 1310nm or 1550nm 3 Port Optical Circulator In Optical Communication

HJY's Optical Circulator is a non-reciprocal passive device that directs light signals sequentially between ports (e.g., Port 1→2, Port 2→3, Port 3→1). It utilizes Faraday rotation and birefringent crystals to enable bidirectional optical routing with minimal loss. Key features include low insertion loss, high isolation, and compact design, making it ideal for telecommunications, fiber sensing, and dense wavelength-division multiplexing (DWDM) systems.

Category	Types	Key Features
Port Configuration	3-Port	Standard unidirectional flow (Port 1→2→3→1)
	4-Port	Extended routing for complex network topologies
Application Grade	Telecommunication-Grade	High reliability for long-haul networks
	Industrial-Grade	Ruggedized for harsh environments (e.g., sensing)

Parameter		1310	1550	C&L	1610
Operation Wavelength (nm)		1280~1340	1520~1580	1525 ～ 1610	1580~ 1660
Configuration		Port1 to Port 2； Port2 to Port3
Grade		P
Insertion Loss(dB)	Typical	0.6
	Maximum	0.8
Channel Max. Isolation (dB)		50
Channel Min. Isolation(dB)		40
Directivity( (dB)		50
PDL (dB)		<0.15
PMD(ps)		<0.1
RL (dB)		>50
Bandwidth (nm)		+/-30
Max Operating Power (mW)		500
Operating Temperature (℃)		0~+70
Storage Temperature (℃)		-40~+85
Fiber type		Corning SMF-28e
Dimension (mm)		1． Φ5.5xL50 ( bare fiber or 900um Loose tube
		2. L90xW20xH9.5( 2.0mm or 3.0mm Cable)

‌Ordering Information‌

‌Model No.‌	‌Wavelength (nm)‌	‌Port Configuration‌	‌Insertion Loss (dB)‌	‌Isolation (dB)‌	‌Package Type‌
HJY-OC-1310-3P	1310	3-Port	≤ 0.8	≥ 50	Miniature
HJY-OC-1550-3P	1550	3-Port	≤ 0.8	≥ 50	Miniature
HJY-OC-1310-4P	1310	4-Port	≤ 1.0	≥ 45	Miniature
HJY-OC-1550-4P	1550	4-Port	≤ 1.0	≥ 45	Miniature
