8+1 Channel Compact CCWDM MUX Module – Free-Space CWDM Multiplexer

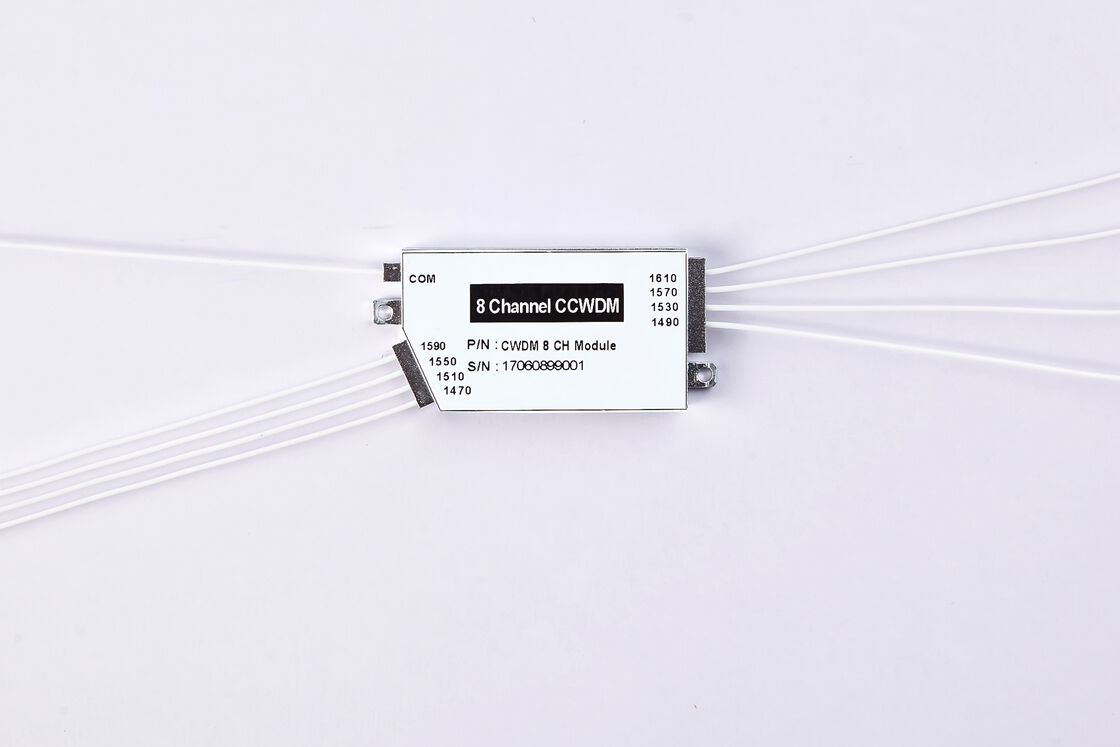

The Huajiayu HJY 8+1 channel Compact Coarse Wavelength Division Multiplexer (CCWDM) is a high-performance passive optical module built on a free-space optics platform. Inside the device, adjacent signal channels are cascaded by parallel beams instead of fibers, which delivers ultra-low insertion loss, excellent channel isolation, and a remarkably compact aluminum housing less than one quarter the size of a conventional CWDM module.

This 8+1 channel CCWDM multiplexes eight CWDM channels on the ITU-T G.694.2 20 nm grid (1471–1611 nm) plus one independent 1310 nm upgrade port, making it an ideal choice for adding wavelength capacity to metro, access, broadband and data center networks while saving valuable rack space.

Key Features

• Ultra-low insertion loss ≤1.25 dB and low polarization dependent loss ≤0.2 dB
• Highly compact footprint – package dimensions only L44 * W25 * H6 mm
• Ultra stable and highly reliable free-space optical design
• Extended operating temperature range –40 to +85 °C
• Excellent channel isolation: ≥35 dB adjacent, ≥45 dB non-adjacent
• Polarization insensitive and protocol / data-rate transparent

Typical Applications

• Optical Add/Drop Multiplexing (OADM)
• Telecom backbone networks
• Metro and access networks
• Broadband and CATV networks
• Data center interconnect (DCI)
• Passive optical LAN (POL)

Performance Specifications

Specifications are measured at room temperature for devices without connectors, excluding connector, splice and end-face losses.

Ordering Information

Build your part number with Huajiayu sales: CCWDM – Channel No. – Pigtail Type – Fiber Length – Dimension – Connector.

• Channel No.: 04 = 4 Channel, 08 = 8 Channel, 18 = 18 Channel
• Pigtail Type: 0 = 250 µm, 1 = 900 µm
• Fiber Length: 0 = 0.5 m, 1 = 1.0 m, 2 = 1.5 m, 3 = others
• Dimension: 1 = L55 * W45 * H6, 2 = L44 * W25 * H6
• Connector: 1 = FC/PC, 2 = FC/APC, 3 = SC/PC, 4 = SC/APC, 5 = LC/PC, 6 = LC/APC, 7 = E2000/APC

Notes

All specifications are typical values measured under controlled laboratory conditions at 23 °C and may vary with connector option, pigtail length and operating environment. Custom wavelengths, channel counts and packaging are available on request. Huajiayu Technology reserves the right to change specifications without prior notice.
