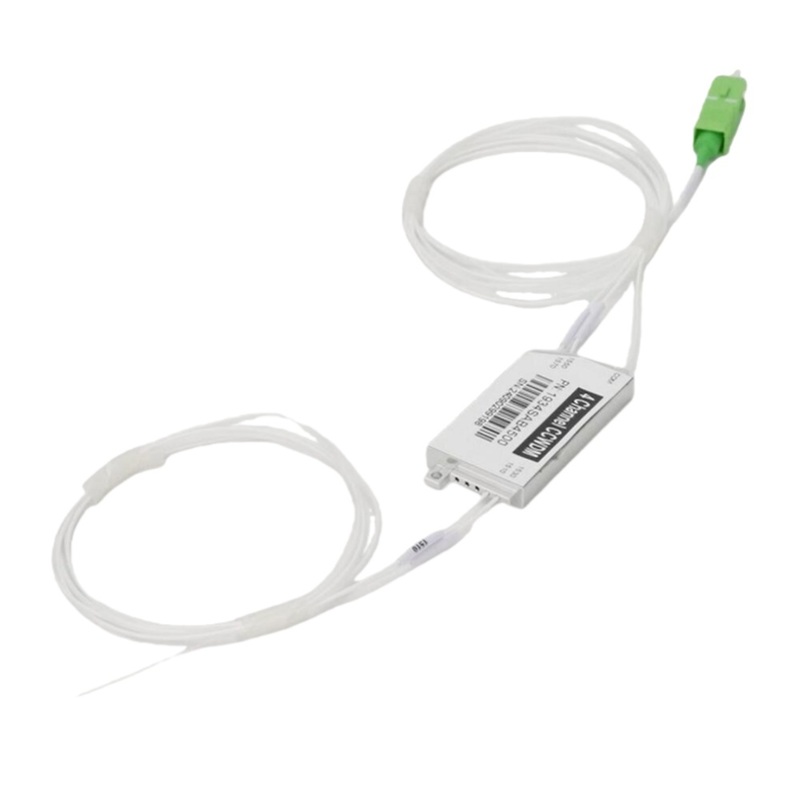

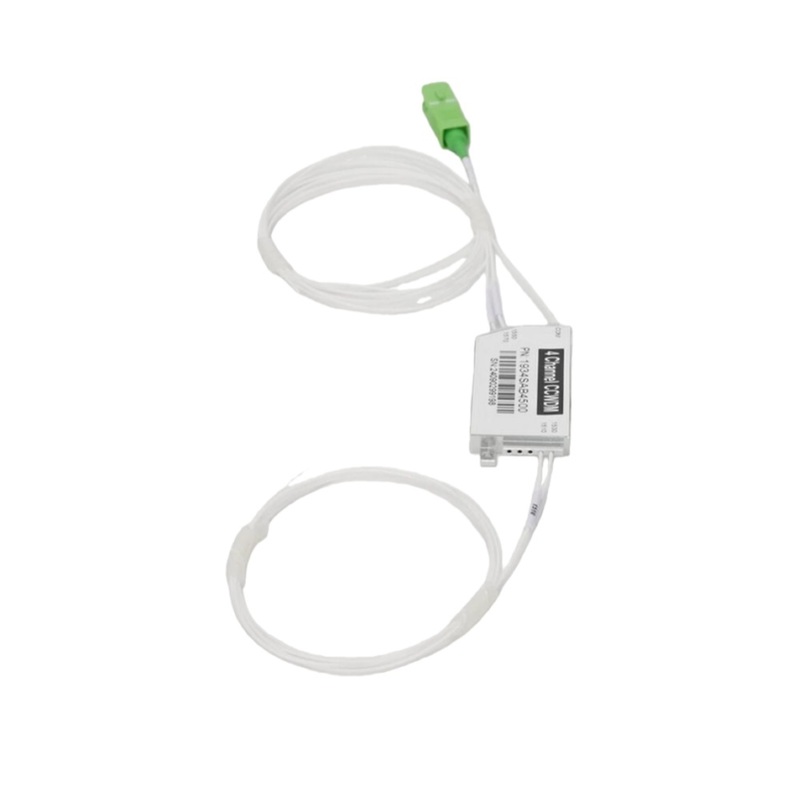

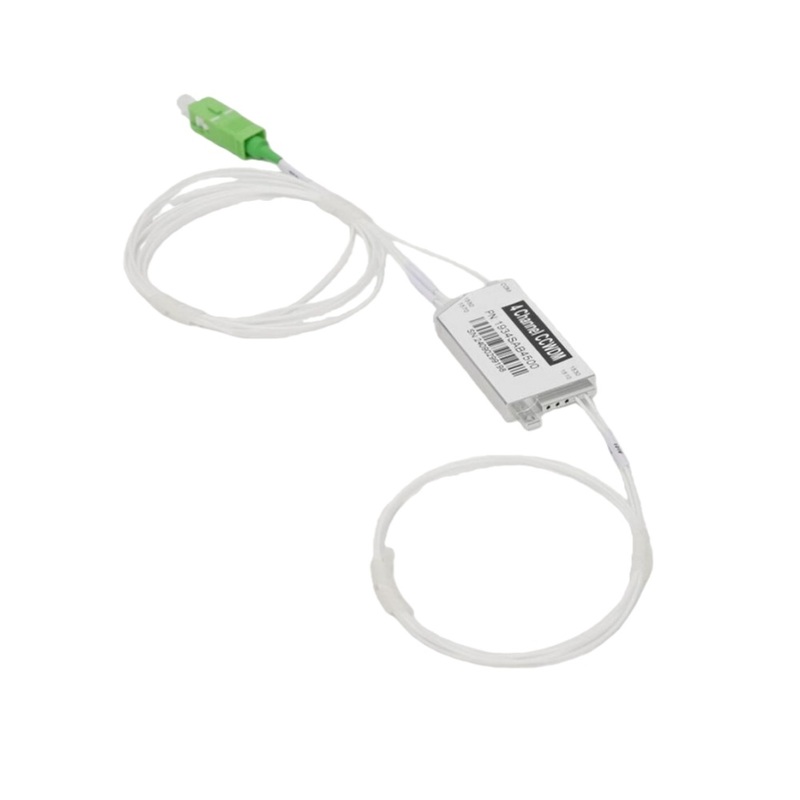

4CH Compact CWDM MUX DEMUX Combo CCWDM Multiplexer Cost-Effective for Fiber Optic Communication Systems

4CH Compact CWDM MUX DEMUX Combo CCWDM Multiplexer Cost-Effective for Fiber Optic Communication Systems

4CH CCWDM MUX DEMUX combo

compact CWDM multiplexer for fiber optic

cost-effective CCWDM MUX DEMUX

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC ISO9001

Model Number:

HJY-CCWDM-4CH-Module-3

Contact Us
Request A Quote
Product Details
Waveband:
1270~1610 Nm
Connector Type:
LC/UPC
Number Of Channels:
4CH
Package Type:
CCWDM Box
Storage Temperature:
-40-85°C
Channel Spacing:
20nm
Highlight:

4CH CCWDM MUX DEMUX combo

,

compact CWDM multiplexer for fiber optic

,

cost-effective CCWDM MUX DEMUX

Payment & Shipping Terms
Minimum Order Quantity
1 pc
Price
Please inquiry sales@huajiayu.com
Packaging Details
Roll, Neutrial Packing or with OEM LOGO
Delivery Time
5~8 working days
Payment Terms
T/T,Western Union,L/C
Supply Ability
100,000 pcs
Product Description
4CH Compact CWDM MUX DEMUX Combo CCWDM Multiplexer Cost-Effective for Fiber Optic Communication Systems
1. Unique Design, Enhancing Signal Transmission Efficiency

The 4CH Compact CWDM MUX DEMUX Combo (CCWDM Multiplexer/Demultiplexer Combo) adopts an innovative design. For adjacent channel processing, it realizes cascaded transmission in free space using parallel light beams. This design breaks the structural limitations of traditional multiplexer/demultiplexer equipment, effectively reducing interference and loss during light beam transmission. It allows signals of different channels to be stably transmitted in independent spatial paths, which not only improves the accuracy of signal transmission but also simplifies the internal structure of the equipment. This lays a foundation for subsequent miniaturized packaging and cost control, meeting the demand for efficient signal processing in fiber optic communication systems.

2. Core Product Parameters, Clarifying Performance Indicators
Parameter Category Parameter Details
Number of Channels 4 Channels (MUX + DEMUX Integrated)
Operating Wavelength 1270nm-1610nm (CWDM Standard Wavelength)
Insertion Loss ≤0.8dB (Typical Value)
Channel Isolation ≥40dB
Operating Temperature -40℃~85℃
Polarization Dependent Loss (PDL) ≤0.3dB
Return Loss ≥50dB
Interface Type SC/LC (UPC/APC Optional)
Applicable Fiber Single-Mode Fiber (SMF-28e)
Package Size L120×W100×H8mm (Compact Type)
3. High-Quality Materials, Ensuring Stable Product Performance

During the manufacturing process of this multiplexer/demultiplexer combo, high-quality optical materials and precision electronic components are selected. The core optical lenses are made of high-light-transmittance quartz material, which reduces the refraction loss of optical signals. The internal circuit components are industrial-grade temperature-resistant parts, which can adapt to temperature fluctuations in complex environments. At the same time, the equipment shell is made of corrosion-resistant and impact-resistant alloy material. This not only improves the physical protection capability of the equipment but also effectively shields external electromagnetic interference. From the material perspective, it ensures the long-term operation stability and reliability of the product and reduces the later maintenance cost.

4. Energy-Saving Design, Guaranteeing Channel Signal Consistency

The equipment incorporates the concept of energy-saving design. By optimizing the internal optical path structure and circuit power consumption control, it reduces the overall energy consumption while focusing on ensuring the consistency of signals in each channel. The built-in signal equalization module can adjust the optical power and wavelength stability of each channel in real time, avoiding transmission errors caused by signal differences between channels. Even under long-term high-load operation, the attenuation amplitude and phase shift of signals in each channel can still be kept within an extremely small range, providing strong support for the stable transmission of fiber optic communication systems.

5. High Compatibility, Supporting Integration of Multiple Devices and Systems

This multiplexer/demultiplexer combo has excellent compatibility and can support the integration of various network devices and systems. Whether it is SDH/SDN equipment in the telecommunications field, servers and storage arrays in data centers, or switches and routers in enterprise campus networks, all can be seamlessly connected to this equipment through standard interfaces. In addition, its compact design is suitable for cabinet installation of different specifications, enabling flexible integration into the existing fiber optic communication architecture. It can improve the network bandwidth utilization without large-scale transformation, providing users with a cost-effective system upgrade solution.

  • Lower insertion Loss

    Lower insertion loss makes CCWDM module have lower signaattenuation in operation, thus reducing the power requirement ofsignal transmitter.

  • High lsolation

    The higher isolation value enables sufficient signal isolation duringmulti-signal transmission in the CcWDM module, effectivelypreventing crosstalk between signals and causing distortion of thetransmission signal.

  • Mature Production Process

    The CCWDM module of HJY has mature production technology,stable and reliable performance, supports the work in the harshenvironment of -40~+85 'C,and ensures the stable transmissionof signals.

Performance Specifications
Parameter 4 Ch 4+UPG 8 Ch 8+UPG1 8+UPG2
Operating Wavelength (nm) 1260~1620
Channel Wavelength (nm) 1270,1290, -,1590,1610, or 1271,1291,-,1591,1611
UPG Port Wavelength Range(nm) NA TBD NA 1260~1360 1260~1457
Channel Spacing(nm) 20
Channel Passband (nm) CWL+/-6.5nm
Insertion Loss(dB)* ≤0.8 ≤0.8 ≤1.5 ≤1.5 ≤1.5
Channel Ripple(dB) ≤0.3
Isolation(dB) Adjacent >30
Non-adjacent >40
UPG Isolation(dB) NA >15 NA >15 >15
Polarization Mode Dispersion(PS) ≤0.2
Polarization Dependent Loss(dB) ≤0.2
Directivity(dB) >45
Return Loss(dB) >45
Maximum Power Handling(mW) 500
Operating Temperature(℃) -5~+70
Storage Temperature(℃) -40~85
Fiber Type G657A1
Connector TBD
Package dimension(mm) L55 x W35 x H8 or L44 x W25 x H6

*Above specification are for device without connector.

Unique Free-Space Technology

The CCWDM Mux adopts Free-Space technology, which uses light propagating in free space to wirelessly transmit data. Inside the device, adjacent signal channels are cascaded by parallel beam instead of the fiber. This saves a lot of space for package box, and the unique workmanship also helps CCWDM Mux Demux with low insertion loss.

Comparison between CCWDM and CWDM
Insertion Loss <2.6 dB

The insertion loss of CCWDM Mux is about half of the conventional CWDM Mux. This reduces the overall loss of the whole link, and leaves more choices for the design of the solution.

4CH Compact CWDM MUX DEMUX Combo CCWDM Multiplexer Cost-Effective for Fiber Optic Communication Systems 0 4CH Compact CWDM MUX DEMUX Combo CCWDM Multiplexer Cost-Effective for Fiber Optic Communication Systems 1
Compact Package Design

CCWDM Mux uses the parallel beam for cascading instead of the fiber, which saves significant space. The minimum dimension of CCWDM aluminum box module is less than the 1/4 size of minimum CWDM ABS pigtailed module.

CCWDM Module Application
  1. Telecommunications Applications
    • Fiber Optic System Capacity Boost: CCWDM modules in fiber optic networks multiplex diverse wavelength optical signals into one fiber. In metro network access, operators use them to combine users' signals like Ethernet and voice onto different wavelength carriers in one fiber, enhancing fiber utilization and cutting new fiber installation costs.
    • Long-Distance Transmission Aid: In long-haul links, while DWDM leads in high-capacity, CCWDM serves auxiliary roles. It transmits monitoring, backup data with lower bandwidth needs cost-effectively.
  2. CATV Network Use
    • Program Transmission Expansion: In CATV headends, CCWDM modules modulate multiple TV channel signals to different wavelengths for fiber transmission to sub-headends or users. Operators adding HD channels can use it to expand capacity by multiplexing new and old signals.
  3. Data Center Interconnection Role
    • Connecting Different Data Centers: As data center scale and number grow, CCWDM modules interconnect them. They multiplex internal network signals like server data and storage backups via fiber, improving connection efficiency, bandwidth use, and reducing costs. In cloud service providers' data center interconnections, it enables high-speed data transfer.

The compact CWDM is ultra low loss, super thermal stability, and excellent reliability, with smaller size compact design to save much space in the application. Applicable to CWDM system and optional special service

Compact coarse wavelength division multiplexers (CCWDM Mux) is the mini version of CWDM Mux. Compared with traditional CWDM technology, CCWDM technology uses free-space optics platform which can significantly improve optical performance, in a package less than 1/4 the size of conventional CWDM modules. Main advantages of CCWDM Mux are high wavelength accuracy and stability, low insertion loss, high isolation and low PDL(polarization dependent loss). It's protocol and rates transparent supporting such applications as the CWDM system, PON networks, and CATV Links.

Order Information
Configuration Channel No. Pigtail Type Fiber length Declension(mm) Connector
CC=CCWDM 40=4 Channel
41=4+UPG
80=8 Channel
81=8+UPG1
82=8+UPG2
---
0=250um
1=900um
0=0.5m
1=1m
2=1.5m
3=others
1= L55 x W35 xH8
2=L44 x W25 x H6
0=None
1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=others

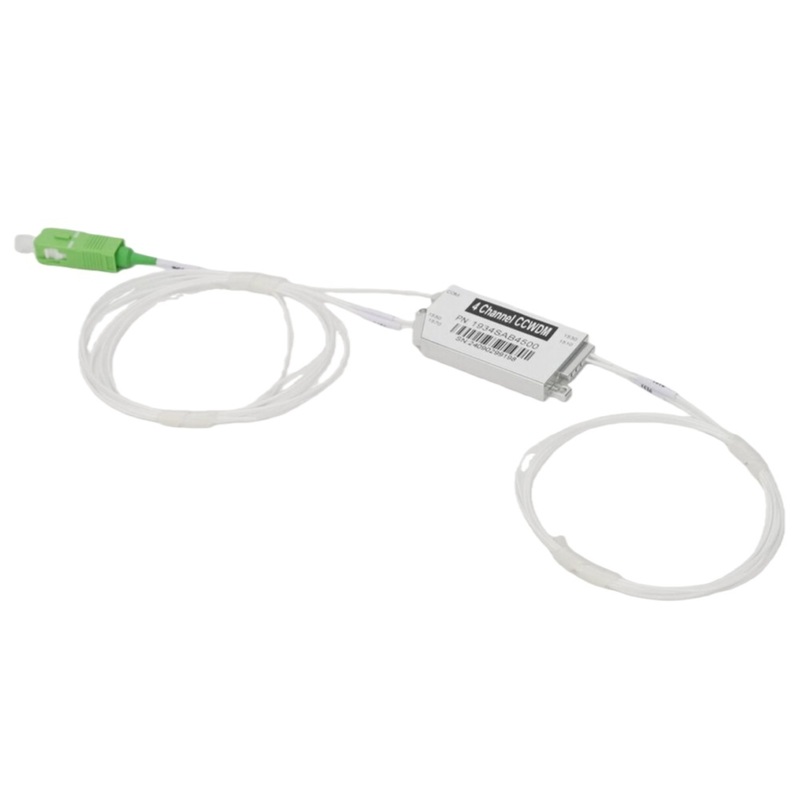

Type1:
4CH Compact CWDM MUX DEMUX Combo CCWDM Multiplexer Cost-Effective for Fiber Optic Communication Systems 2

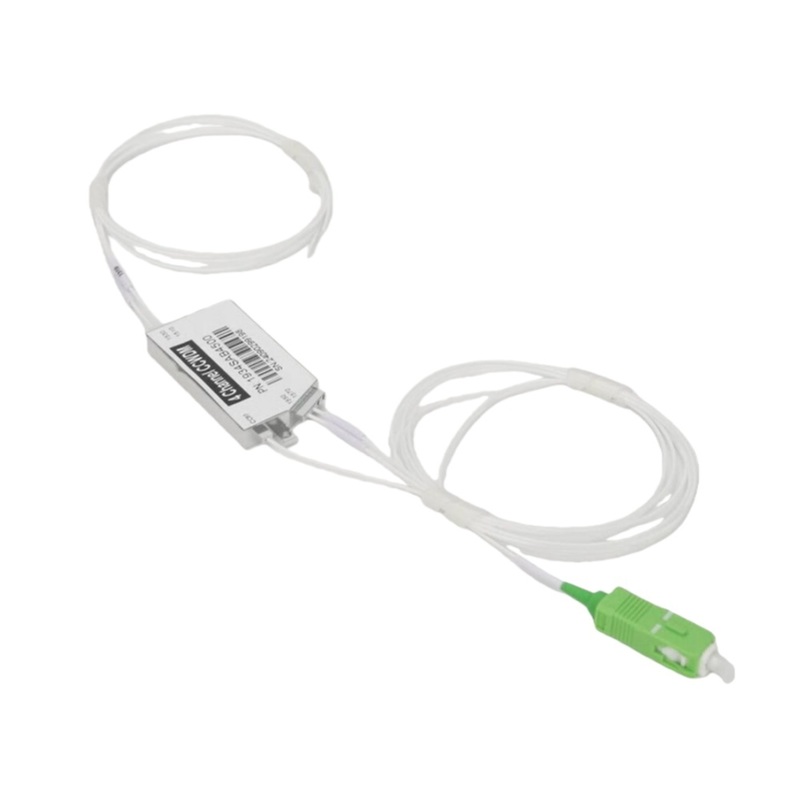

Type 2:
4CH Compact CWDM MUX DEMUX Combo CCWDM Multiplexer Cost-Effective for Fiber Optic Communication Systems 3
