LGX Box FWDM Filter 1310 1550 1650nm Wavelengths Low Insertion Loss for Optical Communication

LGX Box FWDM Filter 1310nm 1550nm

FWDM Filter low insertion loss

optical communication FWDM Filter LGX

Place of Origin:

China

Brand Name:

HJY

Certification:

ISO9001

Model Number:

WDM

Request A Quote

LGX Box FWDM Filter 1310 1550 1650nm Wavelengths Low Insertion Loss for Optical Communication

Product Details

Central Wavelengths:

1310,1550,1650nm

Pass Channel Wavelength Range:

1310+-25nm And 1550+-25nm

Reflection Channel Wavelength Range:

1650+-20nm

Dimensions:

129*118*44mm

Package Dimension:

LGX Box

Operatingtemperature:

-40°C To +85°C

Productname:

FWDM Filter

Packagetype:

Module / Box

Power Handling:

≤ 500mW

Fwdm:

1650nm Reflection WDM Filter

Operating Bandwidth:

±20nm

Centerwavelength:

1310 Nm / 1550/1650 Nm

Polarizationdependentloss:

≤ 0.2 DB

Pass Channel Isolation:

>30

Insertion Loss:

<1.5dB

Operting Humidity Range:

5 To 90%

Return Loss:

>50dB

Highlight:

LGX Box FWDM Filter 1310nm 1550nm

FWDM Filter low insertion loss

optical communication FWDM Filter LGX

Payment & Shipping Terms

Minimum Order Quantity

10pcs

Price

12-100

Packaging Details

Neutrial Packing

Delivery Time

5-8 work days

Payment Terms

L/C,T/T

Supply Ability

1500 per weeks

Professional LGX Box FWDM Filter with 1310 1550 1650nm Wavelengths and Thin Film Filter Technology for Fiber Optic Networks

Get Best Price

FWDM Filter with 1650nm Reflection for 1310/1550/1650nm Wavelengths in LGX Box Package

Get Best Price

1650nm Reflection FWDM Filter with 1260-1670nm Operating Wavelength and 500mW Power Handling for Efficient Signal Separation

Get Best Price

FWDM MODULE MUX/DEMUX 1260-1660nm FTTH GPON 1290-1330&1480-1500nm NGA 1260-1280&1575-1650nm, Single mode Edge Filter WDM OADM

Get Best Price

86-13632552896

sales@huajiayu.com

Contact Now

Product Description

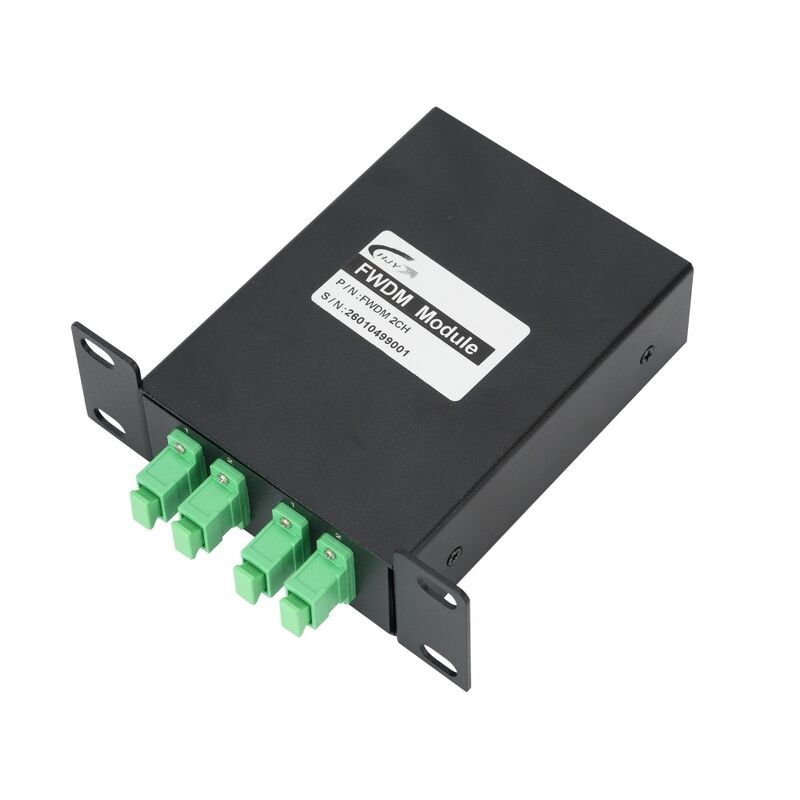

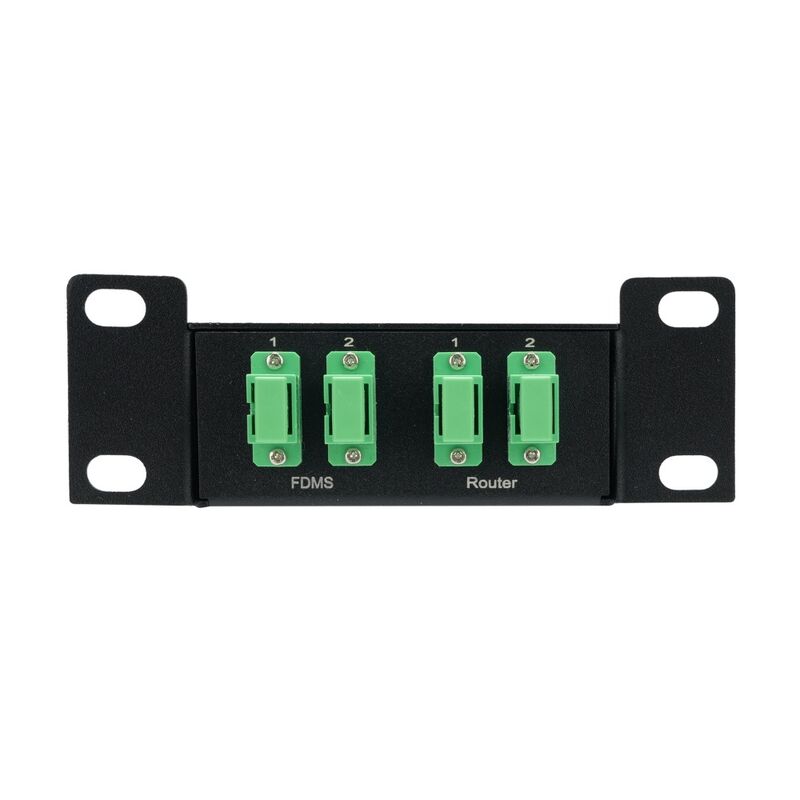

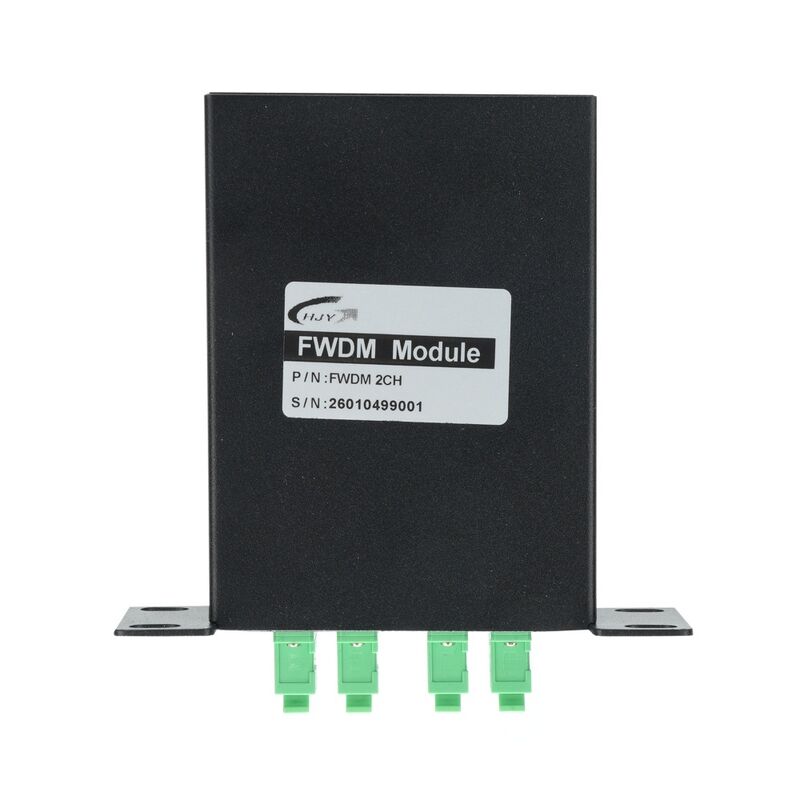

LGX Box FWDM Filter 1310 1550 1650nm Wavelengths Low Insertion Loss for Optical Communication

Crafted for high-performance optical network upgrades, this LGX Box FWDM Filter integrates dual FWDM filters paired with spliced reference branches, enabling targeted bypass of 1650nm wavelengths. Leveraging premium Thin Film Filter (TFF) technology, it delivers stable, consistent operation even in harsh optical network conditions, making it a reliable choice for fiber optic transmission system enhancement.

Product Overview

FTTX Filter WDM Modules are widely deployed across EDFA systems, Raman amplifiers, WDM optical networks and professional fiber optic instrumentation. Engineered to integrate and split optical signals of distinct wavelengths across a broad spectrum, these modules dramatically boost single-fiber bandwidth, enabling high-efficiency bidirectional data transmission. They serve as a cornerstone component for optical network upgrades, infrastructure expansion and the rollout of full-featured new business services.

Dimensions

Technical Specifications

Central Wavelengths	1310, 1550, 1650nm	Technology	TFF (Thin Film Filter)
Passband	1310±25nm and 1550±25nm	Reflection	1650±20nm
Passband Ripple	≤0.30dB	IL @ Passband	≤0.60dB
Reflection Band Ripple	≤0.20dB	IL @ Reflection	≤0.40dB
Transmission Isolation (Adjacent Channel)	≥30dB	Transmission Isolation (Non-Adjacent Channel)	≥50dB
Reflection Isolation	≥15dB	Polarization Dependent Loss	≤0.1dB
Polarization Mode Dispersion	≤0.2ps	Thermal Stability	≤0.005N
Directivity	≥50dB	Return Loss	≥45dB
Optical Power Handling	≤500mW	Operating Temperature	-40 to 85°C
Fiber Type	SMF-28e	Storage Temperature	-40 to 85°C
Package Dimension	LGX Box 12811844mm

Application Diagram

The Filter WDM system employs a Multiplexer at the transmitter to combine multiple wavelengths (each carrying different signals up to 10G bite-rate) and a demultiplexer at the receiver to separate them. With low insertion loss, minimal polarization dependence, and high isolation, this filter is widely used in CATV systems, FTTx and PON systems, fiber communication networks, and test instrumentation.

Ordering Information

HJY-FW	Package	Connector Type	U/A	Wavelength	Fiber Type	Fiber Length	Ports Type
FW	S: Steel B: ABS BOX Others	0: No connector 1: LC 2: SC 3: FC 4: Others	U: UPC A: APC	T: Transmission wavelength range (nm) R: Transmission wavelength range (nm)	9: 0.9mm 20: 2.0mm 30: 2.0mm Others	005: 0.5±0.1m 01: 1.0±0.1m others	Com Reflect Pass

Note:
1) All specifications are based on devices without connectors and guaranteed over wavelength, polarization and temperature.
2) PMD and chromatic dispersion values are guaranteed by design.
3) Specifications are subject to change without notice.
