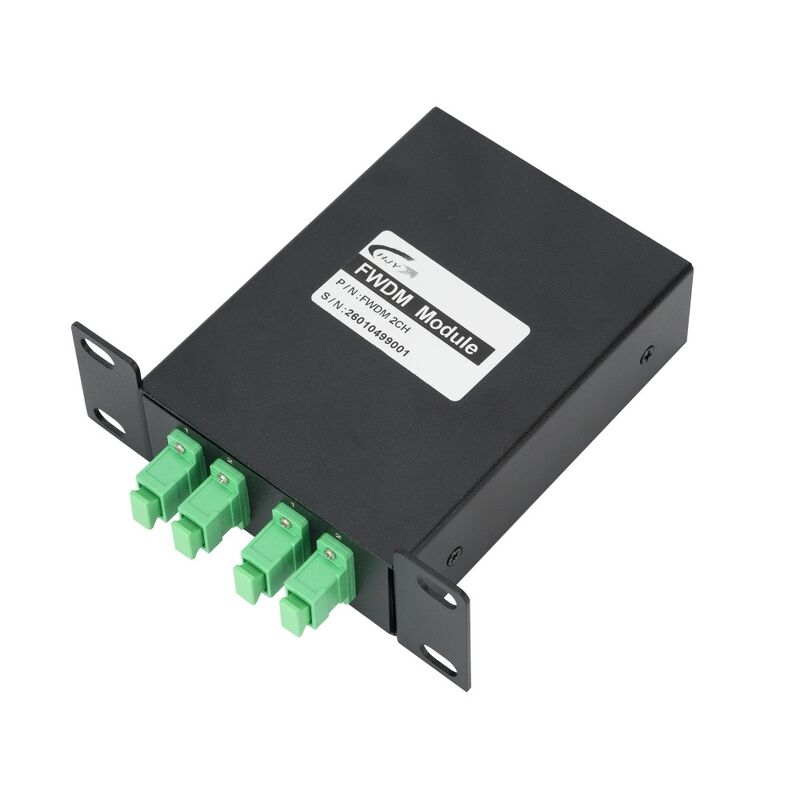

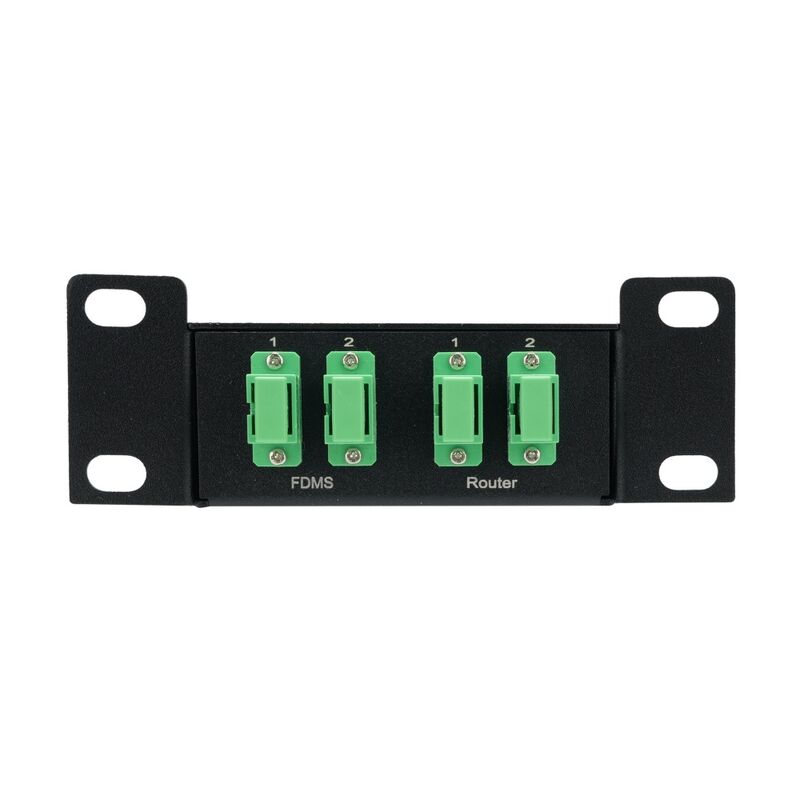

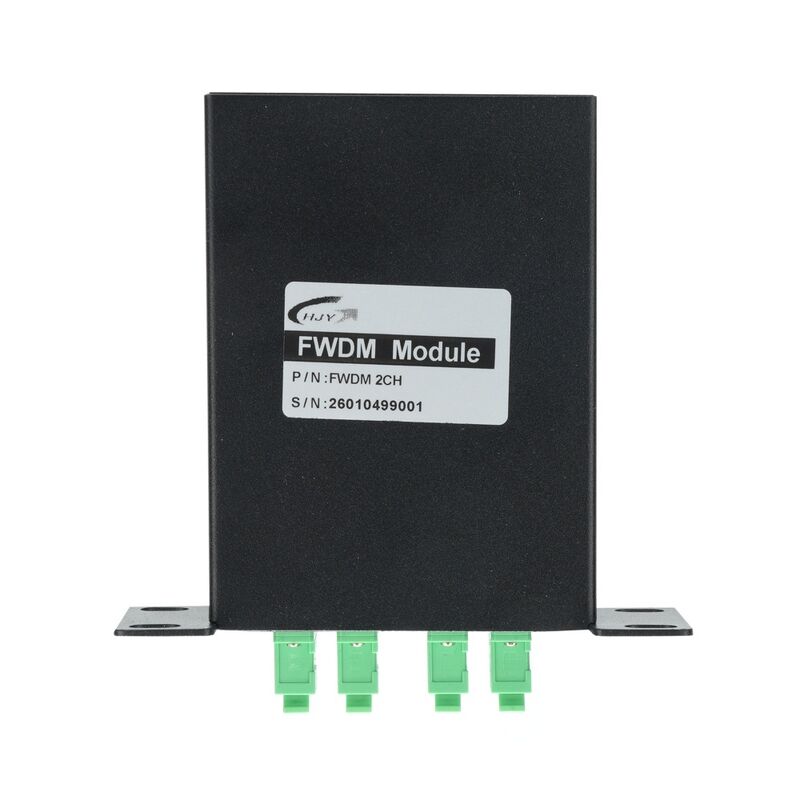

Professional LGX Box FWDM Filter

Ideal for next-generation optical network expansion and maintenance, our LGX Box FWDM Filter features dual-filter architecture with spliced reference legs, specifically engineered to bypass 1650nm wavelength signals. Built with industry-proven Thin Film Filter (TFF) technology, it excels in demanding deployment environments, ensuring minimal signal loss and long-term durability for critical fiber optic communication infrastructure.

Product Overview

Tailored for next-generation optical communication needs, our FTTX Filter WDM Modules deliver exceptional compatibility with EDFA, Raman amplifiers, WDM networks and fiber optic test instrumentation. By merging or isolating light waves of varying wavelengths over an extended range, the modules maximize single-fiber utilization and unlock expanded capacity for two-way communication. Perfectly suited for network enhancement projects, infrastructure scaling and the launch of innovative commercial applications.

Dimensions

Technical Specifications

Central Wavelengths	1310, 1550, 1650nm	Technology	TFF (Thin Film Filter)
Passband	1310±25nm and 1550±25nm	Reflection	1650±20nm
Passband Ripple	≤0.30dB	IL @ Passband	≤0.60dB
Reflection Band Ripple	≤0.20dB	IL @ Reflection	≤0.40dB
Transmission Isolation (Adjacent Channel)	≥30dB	Transmission Isolation (Non-Adjacent Channel)	≥50dB
Reflection Isolation	≥15dB	Polarization Dependent Loss	≤0.1dB
Polarization Mode Dispersion	≤0.2ps	Thermal Stability	≤0.005N
Directivity	≥50dB	Return Loss	≥45dB
Optical Power Handling	≤500mW	Operating Temperature	-40 to 85°C
Fiber Type	SMF-28e	Storage Temperature	-40 to 85°C
Package Dimension	LGX Box 12811844mm

Application Diagram

The Filter WDM system employs a Multiplexer at the transmitter to combine multiple wavelengths (each carrying different signals up to 10G bite-rate) and a demultiplexer at the receiver to separate them. With low insertion loss, minimal polarization dependence, and high isolation, this filter is widely used in CATV systems, FTTx and PON systems, fiber communication networks, and test instrumentation.

Ordering Information

HJY-FW	Package	Connector Type	U/A	Wavelength	Fiber Type	Fiber Length	Ports Type
FW	S: Steel B: ABS BOX Others	0: No connector 1: LC 2: SC 3: FC 4: Others	U: UPC A: APC	T: Transmission wavelength range (nm) R: Transmission wavelength range (nm)	9: 0.9mm 20: 2.0mm 30: 2.0mm Others	005: 0.5±0.1m 01: 1.0±0.1m others	Com Reflect Pass

Note:
1) All specifications are based on devices without connectors and guaranteed over wavelength, polarization and temperature.
2) PMD and chromatic dispersion values are guaranteed by design.
3) Specifications are subject to change without notice.
