Name: AWG Module DWDM Multiplexer Demultiplexer with 100GHz Channel Spacing Low Insertion Loss and High Isolation for Optical Communication
Brand: Guangdong Huajiayu Technology Co., Ltd
SKU: AWG-40/48
Price: 500.00 USD
Availability: InStock

Home > Products > AWG Module >

AWG Module DWDM Multiplexer Demultiplexer with 100GHz Channel Spacing Low Insertion Loss and High Isolation for Optical Communication

100GHz Channel Spacing AWG Module

Low Insertion Loss DWDM Multiplexer Demultiplexer

High Isolation AAWG Module

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC ISO9001

Model Number:

AWG-40/48

Request A Quote

AWG Module DWDM Multiplexer Demultiplexer with 100GHz Channel Spacing Low Insertion Loss and High Isolation for Optical Communication

Product Details

Output Amplitude Range:

-6 DBm To +10 DBm

Frequency Range:

1 MHz To 20 GHz

Output Flatness:

±0.5 DB

Output Accuracy:

±0.2 DB

Sampling Rate:

65 GSa/s

Output Impedance:

50 Ohm

Resolution:

14 Bits

Highlight:

100GHz Channel Spacing AWG Module

Low Insertion Loss DWDM Multiplexer Demultiplexer

High Isolation AAWG Module

Payment & Shipping Terms

Minimum Order Quantity

10 pcs

Price

1~999

Packaging Details

Roll, Neutrial Packing or with OEM LOGO

Delivery Time

5~8 working days

Payment Terms

T/T,Western Union,L/C

Supply Ability

100,000 pcs

50Ohm 100GHZ AWG Module DWDM AAWG MODULE For Optical Networking

Get Best Price

5G Fronthaul and Metro DWDM Networks 40 Channels AAWG Module with Dual Fiber and Real Time Monitoring from C21to C60

Get Best Price

Dual Fiber 40CH AWG Module AAWG C21 To C60 DWDM MUX DEMUX 1310nm With Monitor

Get Best Price

100GHz AWG Module Athermal Module DWDM AAWG ITU Compliant for DWDM Networks

Get Best Price

86-13632552896

sales@huajiayu.com

Contact Now

Product Description

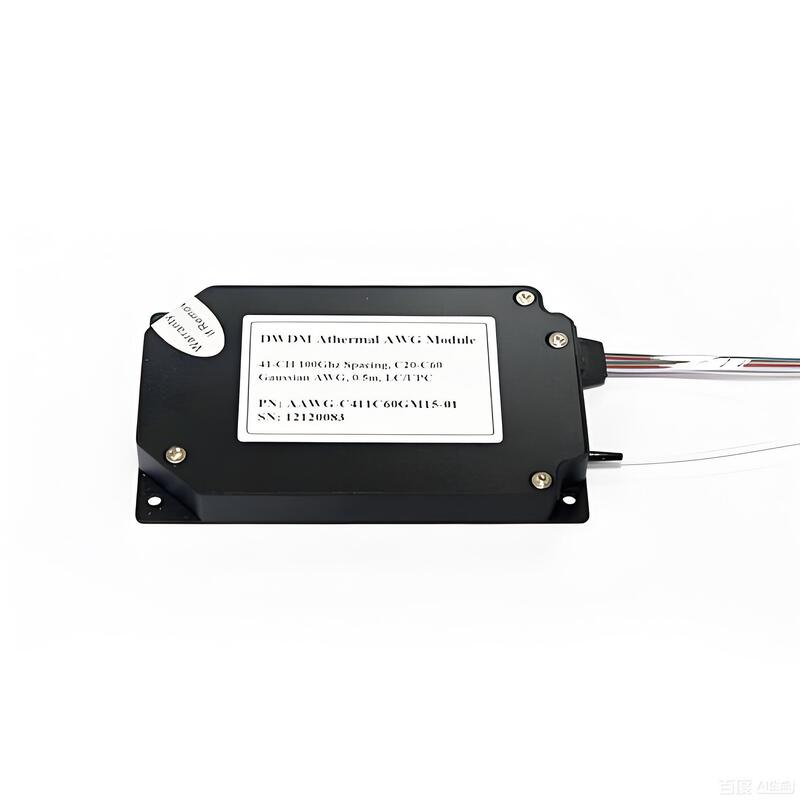

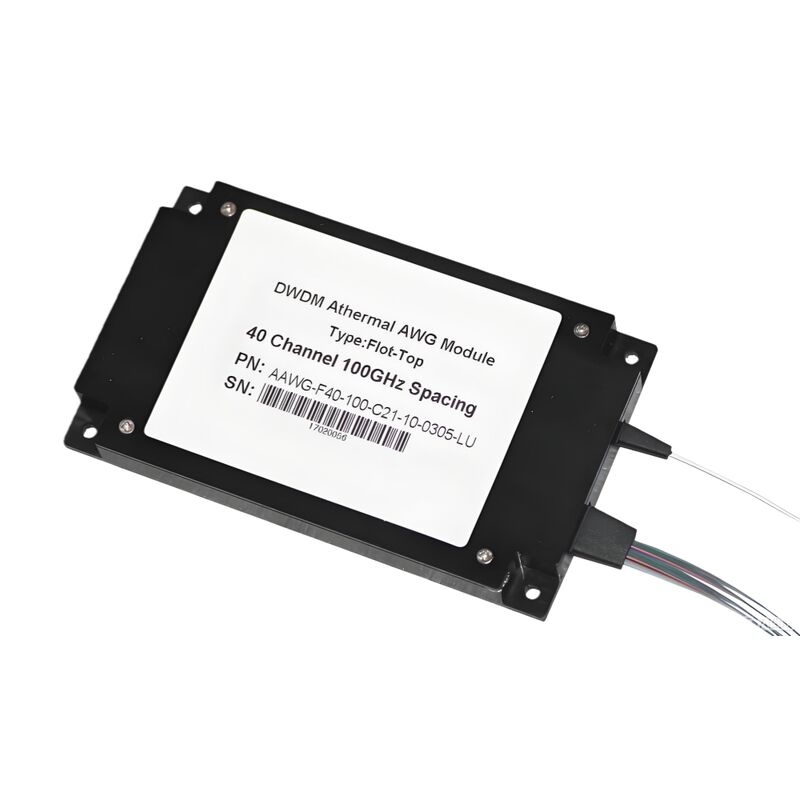

AWG Module DWDM Multiplexer Demultiplexer with 100GHz Channel Spacing Low Insertion Loss and High Isolation for Optical Communication

HJY's Wavelength Division Multiplexer (WDM) utilizes advanced AWG technology to deliver superior performance in optical communication systems. These DWDM series modules are passive optical multiplexer/demultiplexer units engineered for metro access applications, representing the cutting edge in fiber optics design.

The Mux/Demux module efficiently multiplexes and demultiplexes multiple DWDM wavelengths with 100GHz channel spacing into ring or point-to-point networks, making them ideal for telecommunications and networking infrastructure.

HJY's Dense Wavelength Division Mux/Demultiplexer Athermal Arrayed Waveguide Grating (AAWG) Modules feature high-performance silica-on-silicon planar technology and unique athermal packaging design. These completely passive DWDM solutions require no electrical power, software, or temperature control while offering exceptional reliability, very low loss, and high channel isolation.

Key Features

Low insertion loss for optimal signal transmission
High isolation between channels
Low Polarization Dependent Loss (PDL)
Compact, space-saving design
Excellent channel-to-channel uniformity
Wide operating wavelength range
Broad operating temperature: -20°C to 70°C

Applications

DWDM systems and networks
PON (Passive Optical Network) infrastructure
CATV transmission links
Fiber optical amplifiers
Wavelength routing systems

Technical Specifications

Parameter	Unit	Specifications
ITU Band	GHz	ITU, C-band
Channel Spacing	GHz	100
Number of channels		40CH \| 48CH
Wavelength accuracy	nm	0.05 Max
Insertion Loss	dB	3.5 \| 4.0 Max
-1dB passband	nm	0.3 Min
-3dB passband	nm	0.5 Min
Isolation - Adjacent Channel	dB	25 Min
Isolation - Non-adjacent Channel	dB	30 Min
Total Crosstalk	dB	23 Min
Ripple in Passband	dB	0.75 Max
Polarization Dependent Loss	dB	0.5 Max
Uniformity	dB	1.5 Max
Directivity	dB	50 Min
Return Loss	dB	45 Min
Polarization Mode Dispersion	ps	0.5 Max
Power Handling	mW	300 Max
Fiber Type		Corning SMF-28 / SMF-28e or customize
Operating Temperature	°C	5~70
Storage Temperature	°C	-40~85
Package Weight		0.5kg
Dimensions	mm	(L)120(W)70(H)12.7
