Product Description

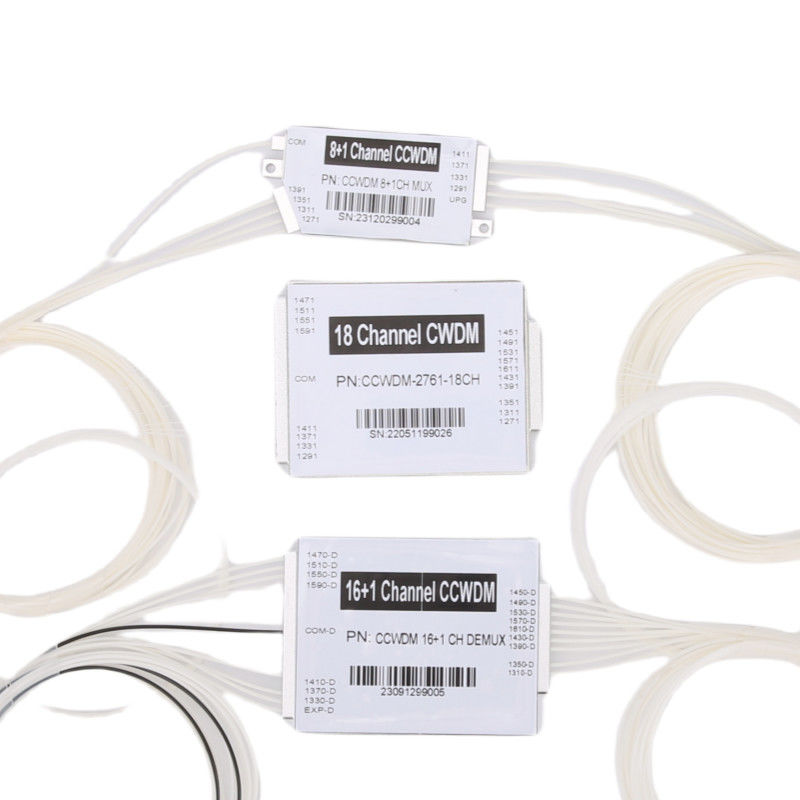

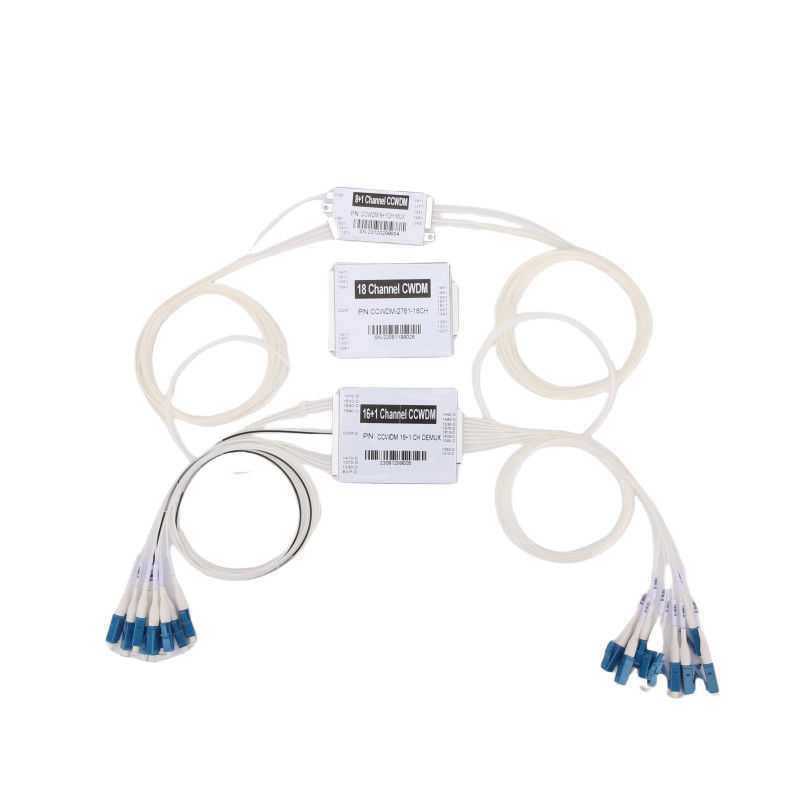

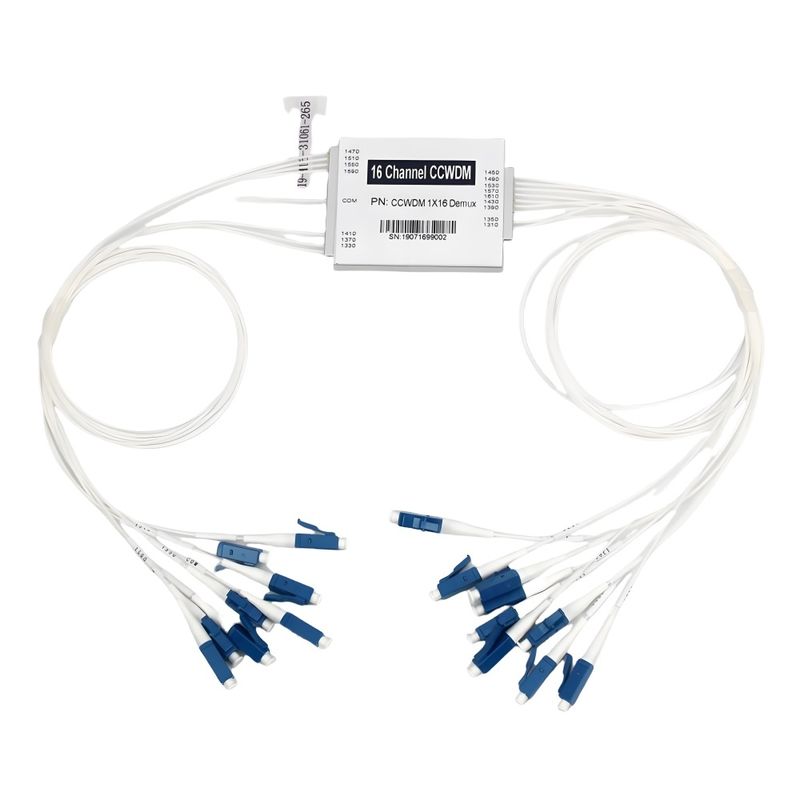

High Wavelength Accuracy and Stability 16CH Compact CWDM CCWDM Multiplexer for Protocol and Rates Transparent Applications

Our ‌16-channel compact CWDM/CCWDM multiplexer‌ delivers industry-leading ‌±0.3nm wavelength accuracy‌ and ‌<0.02dB/km stability‌, ideal for fiber networks requiring protocol-agnostic performance.

Key features:

* Future-proof design‌: Compatible with all protocols (Ethernet, SDH, Fibre Channel) and data rates (1G to 100G+)

*‌ Space-saving‌: 1U rack-mount or modular chassis options for high-density deployments

* Low IL/PDL‌: Insertion loss <2.5dB, polarization dependency <0.2dB

* Extended operating range‌: -40°C to +85°C for harsh environments

Perfect for ‌5G fronthaul, DCI, and metro networks‌ needing transparent wavelength management. ‌RoHS/GR-1209-CORE compliant‌.

HJY offers a compact CWDM module that provides bandwidth capacity expansion for future network growth in one of the small packages. Its compact size and unique carrier tray set it apart, and can be installed in a variety of field situations.

The compact CWDM is ultra low loss, super thermal stability, and excellent reliability, with smaller size compact design to save much space in the application. Applicable to CWDM system and optional special service

Performance Specifications:

Parameter		10 Ch	12Ch	14 Ch	16Ch	18Ch
Operating Wavelength (nm)		1260~1620
Channel Wavelength (nm)		1270,1290,...,1590,1610, or 1271,1291,...,1591,1611
Channel Spacing(nm		20
Channel Passband (nm)		CWL+/-6.5nm
Insertion Loss (dB)		≤1.5	≤1.5	≤1.8	≤1.8	≤2.0
Channel Ripple (dB)		≤0.4
Isolation (dB)	Adjacent	>30
	Non-adjacent	>40
Polarization Mode Dispersion (PS)		≤0.2
Polarization Dependent Loss (dB)		≤0.2
Directivity (dB)		>45
Return Loss(dB)		>45
Maximum Power Handling (mW)		500
Operating Temperature (ºC)		-5~+70
Storage Temperature (ºC)		-40~85
Fiber Type		G657A1
Connector		TBD
Package dimension (mm)		L55 x W45 x H6

Remark:Above specification are for device without connector

Unique Free-Space Technology

The CCWDM Mux adopts Free-Space technology, which uses light propagating in free space to wirelessly transmit data. Inside the device, adjacent signal channels are cascaded by parallel beam instead of the fiber. This saves a lot of space for package box, and the unique workmanship also helps CCWDM Mux Demux with low insertion loss.

Comparison between CCWDM and CWDM

Insertion Loss <2.6 dB

The insertion loss of CCWDM Mux is about half of the conventional CWDM Mux. This reduces the overall loss of the whole link, and leaves more choices for the design of the solution.

Compact Package Design

CCWDM Mux uses the parallel beam for cascading instead of the fiber, which saves significant space. The minimum dimension of CCWDM aluminum box module is less than the 1/4 size of minimum CWDM ABS pigtailed module.

Order Information

Configuration	Channel No.	Pigtail Type	Fiber length	Declension(mm)	Connector
CC=CCWDM	40=4 Channel 41=4+UPG 80=8 Channel 81=8+UPG1 82=8+UPG2 ---	0=250um 1=900um	0=0.5m 1=1m 2=1.5m 3=others	1= L55 x W35 xH8 2=L44 x W25 x H6	0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=others

Type1:

Type 2:
