Compact Design 18CH CWDM CCWDM Multiplexer with High Wavelength Accuracy and Stability for Optimal Network Performance

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC ISO9001

Model Number:

HJY-CCWDM-18CH-Module-8

Request A Quote

Compact Design 18CH CWDM CCWDM Multiplexer with High Wavelength Accuracy and Stability for Optimal Network Performance

Product Details

Waveband:

1270~1610 Nm

Channel Spacing:

20nm

Operating Temperature:

-30℃ ~ +75℃

Passband Ripple:

< 0.3dB

Return Loss:

>45dB

Connector Type:

LC/UPC

Number Of Channels:

Package Type:

CCWDM Box

Payment & Shipping Terms

Minimum Order Quantity

10 pcs

Price

1~999

Packaging Details

Neutrial Packing or with OEM LOGO

Delivery Time

5~8 working days

Payment Terms

T/T, Western Union, L/C

Supply Ability

100,000 pcs

LC 18 Channel Compact MUX DEMUX CWDM CCWDM Multiplexer Thermal Stability

Get Best Price

UPC Optical Network Fiber Optic Mux 18CH Compact CCWDM CWDM Mux Demux Multiplexer

Get Best Price

55mm Optical CCWDM MUX Module 4 ~ 8CH Compact Box Type CWDM Multiplexer

Get Best Price

High Lsolation DEMUX Module 4CH Compact CWDM MUX CCWDM Multiplexer For Network Performance

Get Best Price

8613556217949

francesgdut@gmail.com

Contact Now

Product Description

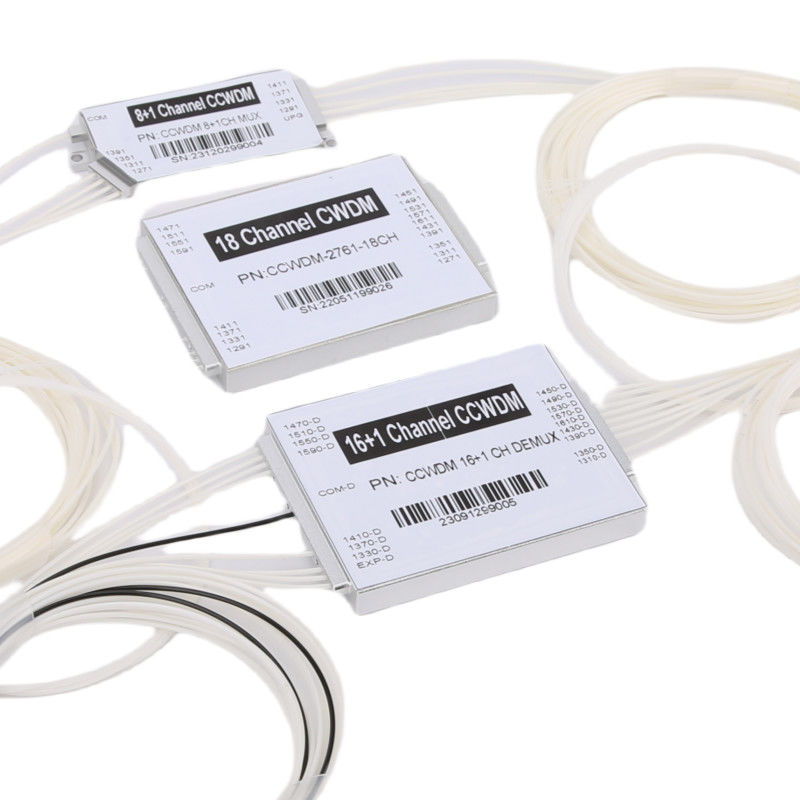

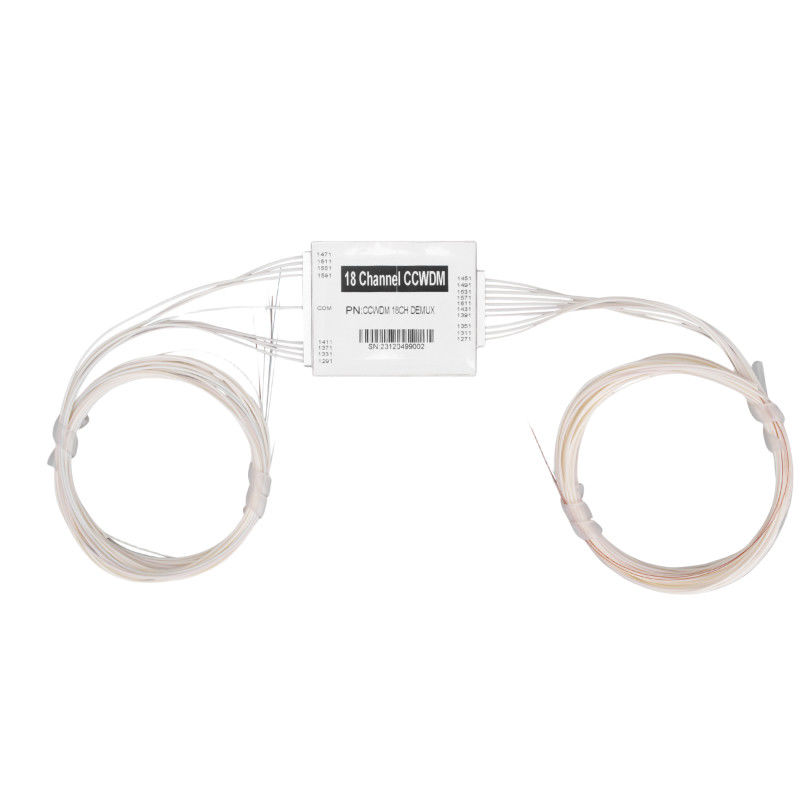

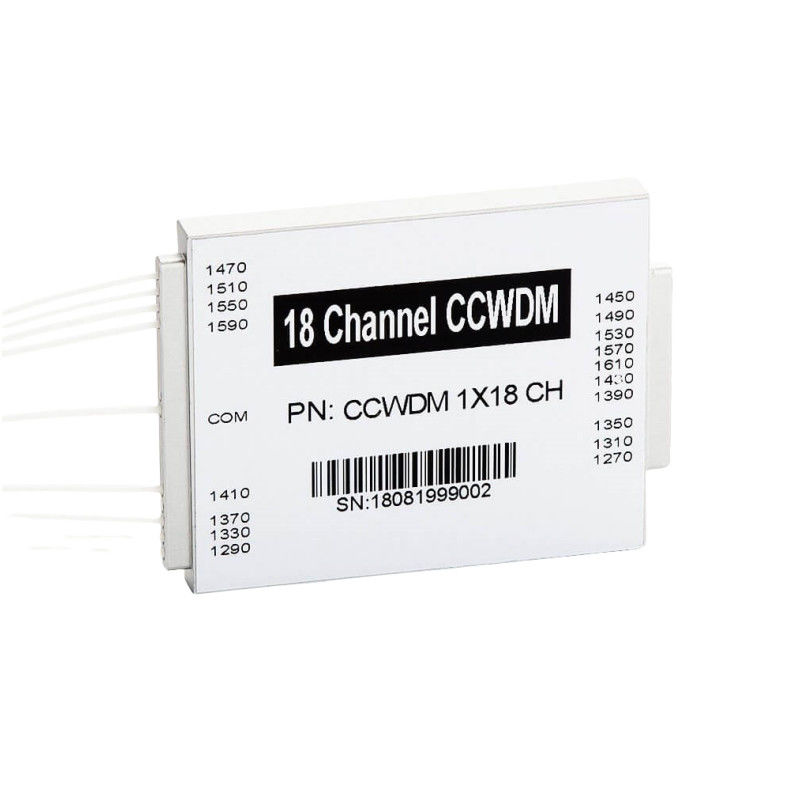

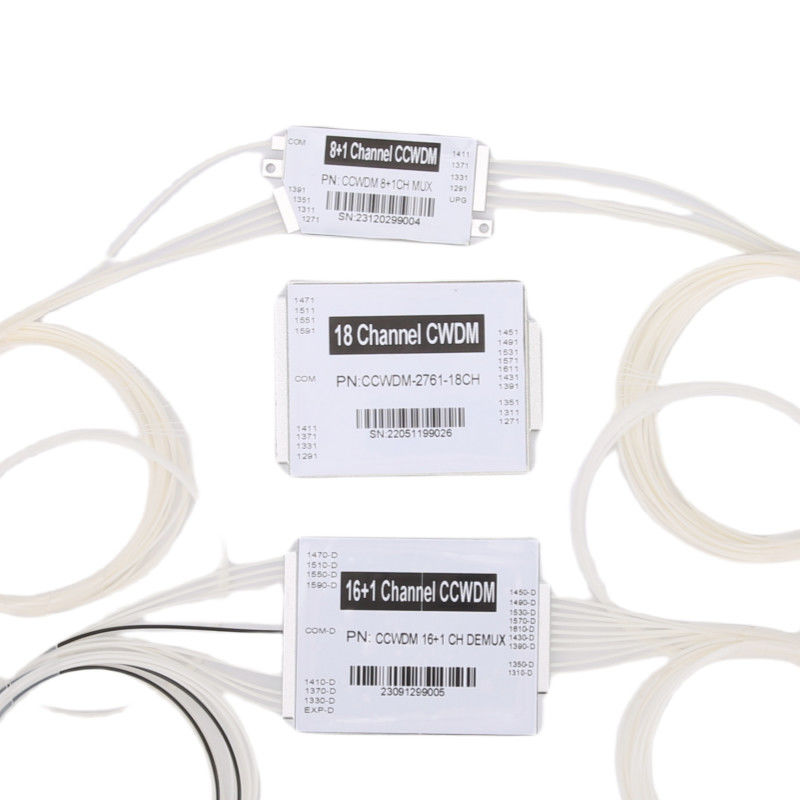

Compact Design 18CH CWDM CCWDM Multiplexer with High Wavelength Accuracy and Stability for Optimal Network Performance

The 18CH Compact Coarse Wavelength Division Multiplexer (CCWDM Mux) delivers the functionality of traditional CWDM in a radically miniaturized form factor. Utilizing advanced free-space optics technology, CCWDM achieves superior optical performance within a package over 75% smaller than conventional CWDM modules.

Key Advantages Driving CCWDM Adoption:

* Space Efficiency: Ideal for high-density applications where rack space is critical.

* Enhanced Optical Performance: Significantly improved wavelength accuracy, stability, and lower insertion loss compared to standard CWDM.

* Superior Signal Integrity: Features high channel isolation and minimal polarization-dependent loss (PDL).

* Protocol & Rate Agnostic: Transparently supports any protocol or data rate (e.g., 1G to 400G+, OTU, Ethernet, Fibre Channel).

Ideal Applications Include:

* Maximizing capacity in space-constrained CWDM optical networks.

* Enhancing PON (Passive Optical Network) infrastructure for FTTx deployments.

* Extending reach and bandwidth in CATV/Video transport links.

* Enabling efficient wavelength division in 5G fronthaul/midhaul, data center interconnects (DCI), and enterprise backbones.

HJY offers a compact CWDM module that provides bandwidth capacity expansion for future network growth in one of the small packages. Its compact size and unique carrier tray set it apart, and can be installed in a variety of field situations.

The compact CWDM is ultra low loss, super thermal stability, and excellent reliability, with smaller size compact design to save much space in the application. Applicable to CWDM system and optional special service

Performance Specifications:

Parameter		10 Ch	12Ch	14 Ch	16Ch	18Ch
Operating Wavelength (nm)		1260~1620
Channel Wavelength (nm)		1270,1290,...,1590,1610, or 1271,1291,...,1591,1611
Channel Spacing(nm		20
Channel Passband (nm)		CWL+/-6.5nm
Insertion Loss (dB)		≤1.5	≤1.5	≤1.8	≤1.8	≤2.0
Channel Ripple (dB)		≤0.4
Isolation (dB)	Adjacent	>30
	Non-adjacent	>40
Polarization Mode Dispersion (PS)		≤0.2
Polarization Dependent Loss (dB)		≤0.2
Directivity (dB)		>45
Return Loss(dB)		>45
Maximum Power Handling (mW)		500
Operating Temperature (ºC)		-5~+70
Storage Temperature (ºC)		-40~85
Fiber Type		G657A1
Connector		TBD
Package dimension (mm)		L55 x W45 x H6

Remark:Above specification are for device without connector

Unique Free-Space Technology

The CCWDM Mux adopts Free-Space technology, which uses light propagating in free space to wirelessly transmit data. Inside the device, adjacent signal channels are cascaded by parallel beam instead of the fiber. This saves a lot of space for package box, and the unique workmanship also helps CCWDM Mux Demux with low insertion loss.

Comparison between CCWDM and CWDM

Insertion Loss <2.6 dB

The insertion loss of CCWDM Mux is about half of the conventional CWDM Mux. This reduces the overall loss of the whole link, and leaves more choices for the design of the solution.

Compact Package Design

CCWDM Mux uses the parallel beam for cascading instead of the fiber, which saves significant space. The minimum dimension of CCWDM aluminum box module is less than the 1/4 size of minimum CWDM ABS pigtailed module.

Order Information

Configuration	Channel No.	Pigtail Type	Fiber length	Declension(mm)	Connector
CC=CCWDM	40=4 Channel 41=4+UPG 80=8 Channel 81=8+UPG1 82=8+UPG2 ---	0=250um 1=900um	0=0.5m 1=1m 2=1.5m 3=others	1= L55 x W35 xH8 2=L44 x W25 x H6	0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=others

Type1:

Type 2:
