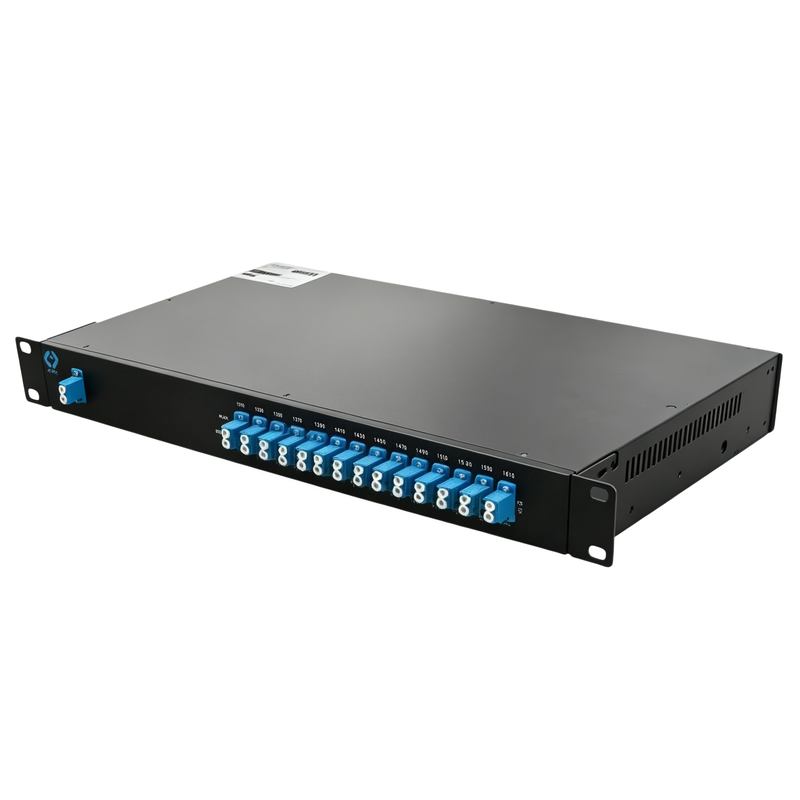

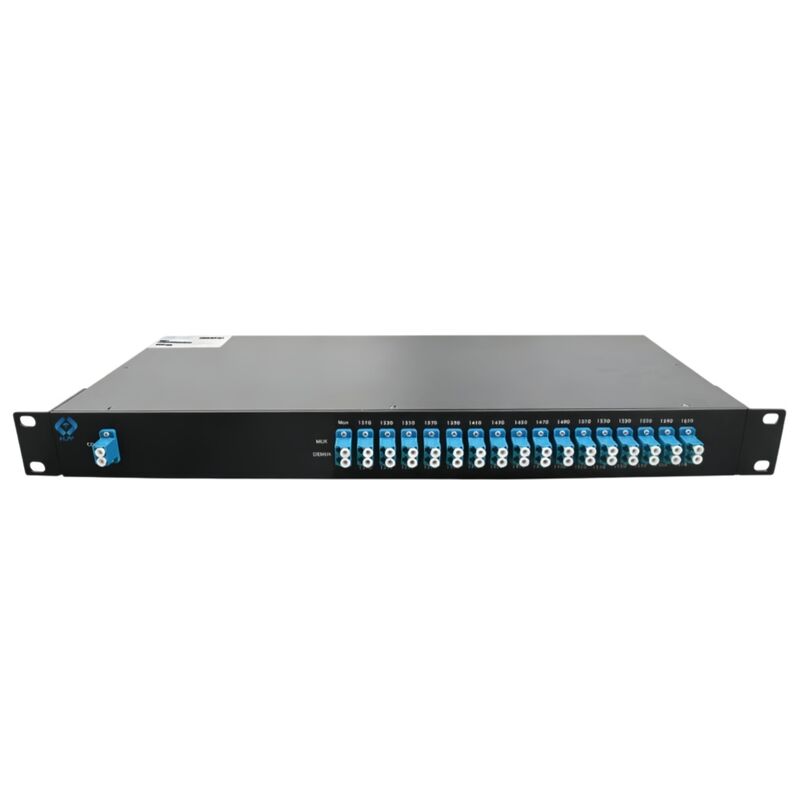

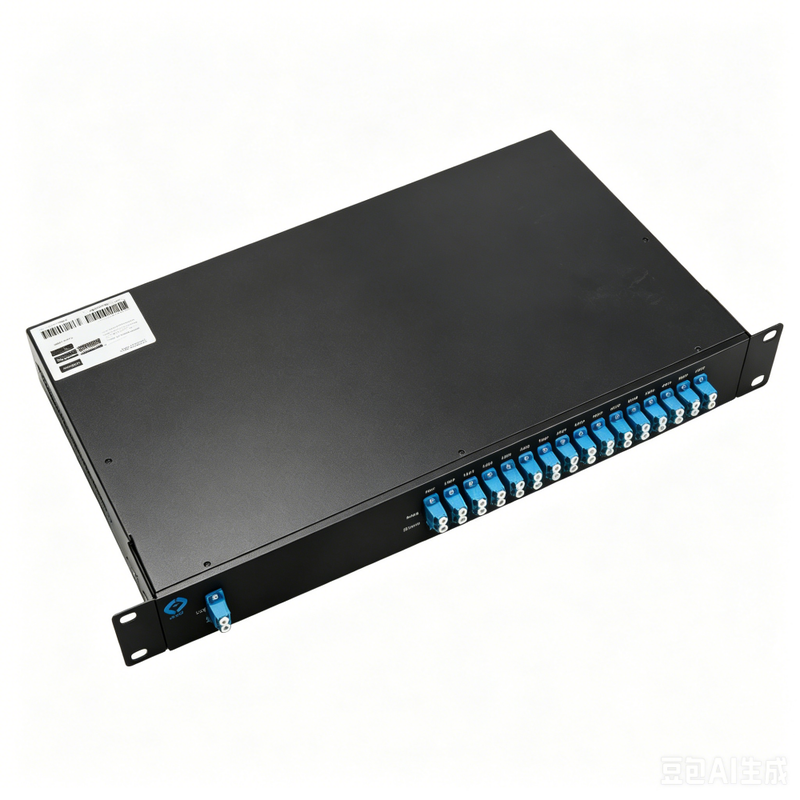

Mux Demux CWDM 16+1 Channel Duplex LC/UPC Mon Port 1310-1610nm 1RU Ind Temp
CWDM optional channel Mux & Demux, 1U rack type, dual fibre, LC/UPC connectors.
Provides low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path.
We proudly offer a compatibility guarantee and limited lifetime warranty. Our rigorously tested products record a unique traceable serial number and are fully compliant with all standards & protocols.
Item Details
- 16+1 channels CWDM mux and demux in one 1U Rack
- Com port is simplex
- 1U 19 inch Rack Mount Housing
- It is equipped with configuration ports like Monitor, Express port according to customer choice (see options)
- Front panel is equipped with adapters according to customer choice (see options)
- Passive, no electric power required. (MTBF ca. 500 years)
- Low insertion loss
- Simple to install, requires no configuration or maintenance
- ISO 9001 manufacturing facility
- It should be used with another 8 channels 1RU Rack Mount box, Duplex Dual Fiber Transmission, CWDM Mux and Demux in pair.
Dual Fiber Transmission should be used in pairs, MUX/DEMUX Portfor specific wavelength must be opposite CWDM
HJY CWDM Mux/Demux is a passive technology, it allows for any protocol to be transported over the link, as long as it is at a specific wavelength (i.e. T1 over fiber at 1570nm transported alongside 10Gbps Ethernet at 1590nm). This allows for long-term future proofing of the networking infrastructure because the multiplexers simply refract light at any network speed, regardless of the protocol being deployed.
HJY provides a complete portfolio of CWDM Mux Demux and Optical Add Drop Multiplexer (OADM) units to suit all applications such as: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV. And we provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice.
Maximize Your Fiber with WDM Network
A single fiber can be shared for multiple different data or services in WDM network. It maximizes the usefulness of fiber and generates substantial savings.
Mix of Services Multiplexing at Any Rate
Flexible mix of 1G/10G/25G/40G/100G/200G Ethernet, 8G/16G FC, SAN, OTN, SDH/SONET and native video services, it's transparent to any rate, any service multiplexing and upgrade
Product Specification
| Wavelength |
1270-1610nm |
Channel Spacing |
20nm |
| Channel Passband |
±6.5nm |
Technology |
TFF (Thin Film Filter) |
| Insertion Loss |
Regular :≤ 5.4dB (With 8 Skip 0:≤3.0dB) |
Link Loss(A+B) |
Regular :≤ 6.2dB (With 8 Skip 0:≤4.0dB) |
| Center Wavelength Accuracy |
±0.05nm |
Return Loss |
≥ 45dB |
| Directivity |
≥ 45dB |
Polarization Mode Dispersion |
≤ 0.1ps |
| Polarization Dependent Loss |
≤ 0.3dB |
Channel Isolation |
Adjacent ≥30dB Non-adjacent ≥45dB |
| Connector |
LC/UPC |
Temperature |
Operating -40 to 85°C Storage -40 to 85°C |
| Net Weight |
1U 19ich Chassis 1.2KG |
Dimensions (HxWxD) |
1u Rack 44*440*230mm |
Note: Specified with connectors.
Mechanical Details for Housing
Note: Please, note that the drawings shown here only show the dimensions and do not the specific configuration of the module.
