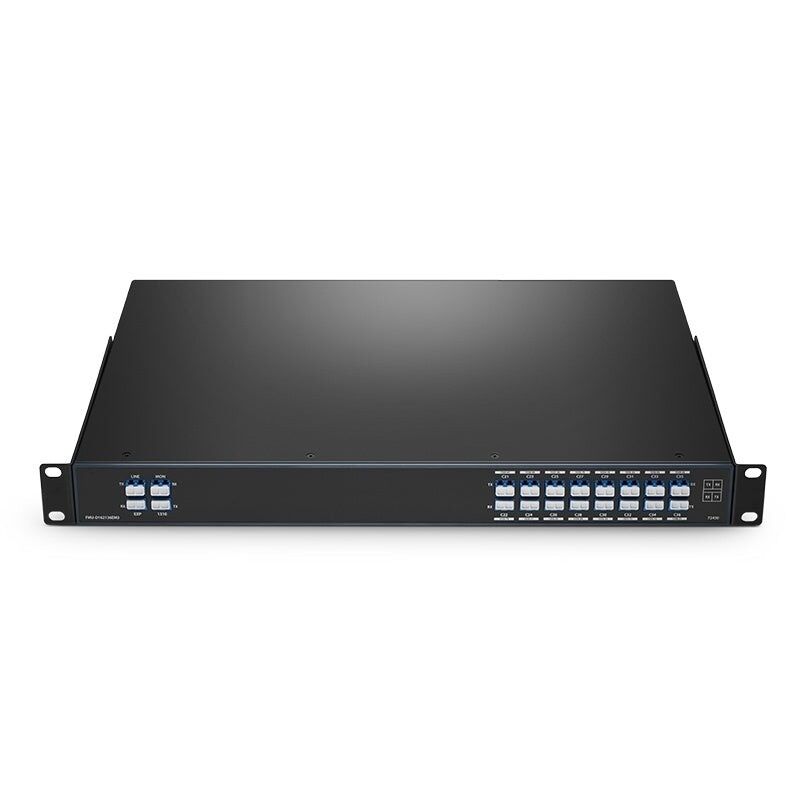

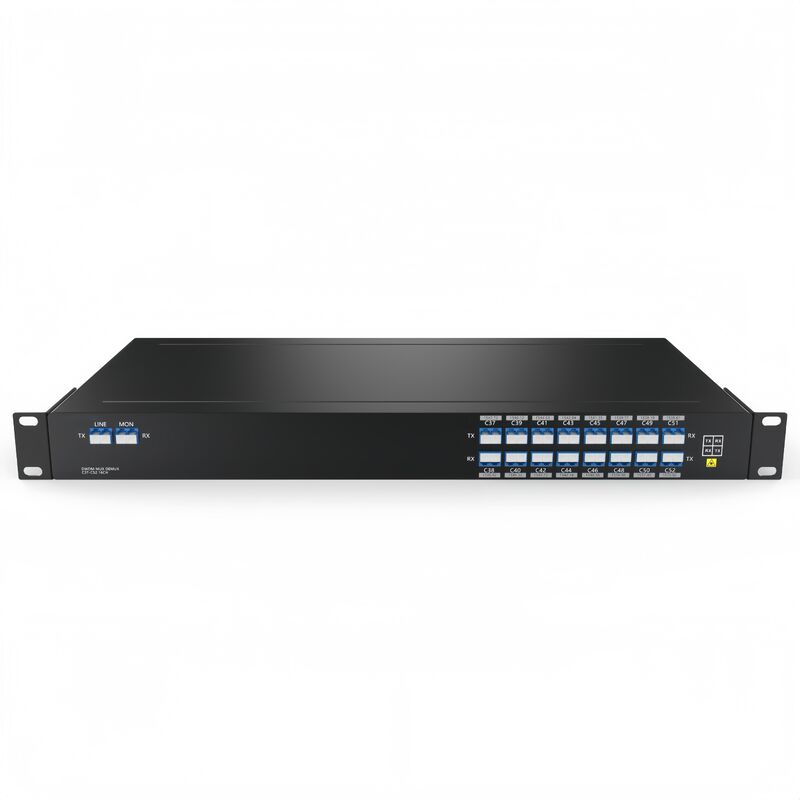

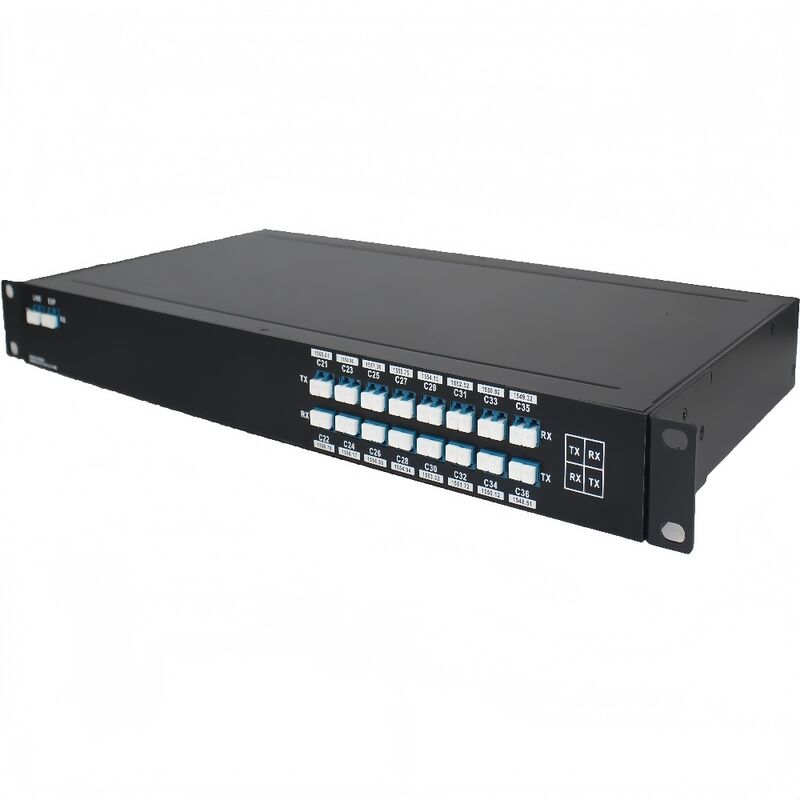

Name: High Isolation 16CH DWDM Mux Demux C41 C56 Dual Fiber 1U Rack LC UPC
Brand: Guangdong Huajiayu Technology Co., Ltd
SKU: HJY-DWDM-D16CH-19INCH-3
Price: 500.00 USD
Availability: InStock

Home > Products > DWDM MUX DEMUX >

High Isolation 16CH DWDM Mux Demux C41 C56 Dual Fiber 1U Rack LC UPC

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC

Model Number:

HJY-DWDM-D16CH-19INCH-3

Request A Quote

High Isolation 16CH DWDM Mux Demux C41 C56 Dual Fiber 1U Rack LC UPC

Product Details

Channels:

Wavelength Range:

C41 To C56 (1560.61nm~1548.51nm)

Insertion Loss:

≤ 3.5dB

Channel Spacing:

100GHz (0.8nm)

Operating Temperature:

-40 To 85°C

Dimensions:

44*440*230mm

Payment & Shipping Terms

Minimum Order Quantity

1pc

Price

Please find sales@huajiayu.com

Packaging Details

Neutrial Standard Packing

Delivery Time

3~7 working days

Payment Terms

L/C,T/T,Western Union

Supply Ability

10000000pcs/month

High Isolation 16CH DWDM Mux Demux C41 C56 Dual Fiber 1U Rack LC UPC

Get Best Price

16 Channels DWDM MUX DEMUX with Low Insertion Loss and Expansion Port for Future Bandwidth

Get Best Price

Video

Future Proof 8 Channel DWDM Box Supports 100GHz or 200GHz Grid Spacing‌

Get Best Price

Video

Plug and Play 8 Channel DWDM Solution for Data Centers and FTTx Networks‌

Get Best Price

86-13632552896

sales@huajiayu.com

Contact Now

Product Description

High Isolation 16CH DWDM Mux Demux C41 C56 Dual Fiber 1U Rack LC UPC

The 16ch DWDM is totally passive DWDM device, and support low insertion loss( wavelength ports＜3.5dB;). And it conjunct with The DWDM amplifiers and DCM device, the 16ch DWDM transfer system can support a long distance transmission.

The 16ch DWDM MUX DEMUX is designed by HJY, wavelength from C21 to C60(1544.53nm~1532.68nnm),(By the way, we can support customize other waves); in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.

Expansion Port for Future Bandwidth Increasing, makes it possible to increase the network capacity by connecting it to the line port of another DWDM MUX/DEMUX supporting different wavelengths, without the need of installing or leasing additional fibers.

Features

Low Insertion Loss
High Isolation
Low PDL
Multiplexing of 16CH over dual Fiber Network
Wide Operating Wavelength
Wide Operating Temperature: -20 to 70°C

Applications

DWDM systems, fiber optical amplifier
CATV links, wavelgnth routing
PON networks

Product specification

Wavelength	16channels C41-C56	Channel Spacing	100GHz (0.8nm)
Channel Passband	±0.11nm	Technology	TFF (Thin Film Filter)
Insertion Loss	≤ 3.5dB	Link Loss	≤ 4.5dB
Center Wavelength Accuracy	±0.05nm	Return Loss	≥ 45dB
Directivity	≥ 45dB	Polarization Mode Dispersion	≤ 0.1ps
Polarization Dependent Loss	≤ 0.3dB	Channel Isolation	Adjacent ≥30dB
Channel Isolation	Non-adjacent ≥ 45dB	Temperature	Operating -40 to 85°C Storage -40 to 85°C
Net Weight	3.5KG	Dimensions (HxWxD)	*44440230mm*

Channels	4	8	16
Insertion Loss	<1.5dB	<2.4dB	<4.0dB

Wavelength Range	16channels	Technology	TFF (Thin Film Filter)
Channel Spacing	100GHZ(0.8nm)	Passband Ripple	≤0.5dB
Channel Passband	±0.11nm	Channel Isolation	Adjacent ≥30dB Non-adjacent ≥45dB
Polarization Dependent Loss	≤0.2dB	Polarization Mode Dispersion	≤0.2ps
Directivity	≥50dB	Return Loss	≥45dB
Optical Power Handling	≤500mW	Temperature	Operating -40 to 85°C Storage -40 to 85°C
Fiber Type	SMF-28e+	Connector	LC/SC/FC or other
Net Weight	1U Rack: 1.5kg	Package dimensions	482440230mm(1U)

Notes:

HJY Support Customized Design, please contact us by email sales@huajiayu.com
If you want to order, please email us and tell us how many waves and which waves do you want, we will send you more detail datasheet which you want.

16 Channels DWDM MUX DEMUX supports 16 channels difference business in two optical fiber for point-to-point transmission.
It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.

Package Information

Dense Wavelength Division Multiplexing (DWDM)
ITU Grid: C-Band, 100 GHz Spacing
Channel	Frequency	Wavelength	Channel	Frequency	Wavelength
(#)	(GHz)	(nm)	(#)	(GHz)	(nm)
1	190100	1577.03	37	193700	1547.72
2	190200	1576.20	38	193800	1546.92
3	190300	1575.37	39	193900	1546.12
4	190400	1574.54	40	194000	1545.32
5	190500	1573.71	41	194100	1544.53
6	190600	1572.89	42	194200	1543.73
7	190700	1572.06	43	194300	1542.94
8	190800	1571.24	44	194400	1542.14
9	190900	1570.42	45	194500	1541.35
10	191000	1569.59	46	194600	1540.56
11	191100	1568.77	47	194700	1539.77
12	191200	1567.95	48	194800	1538.98
13	191300	1567.13	49	194900	1538.19
14	191400	1566.31	50	195000	1537.40
15	191500	1565.50	51	195100	1536.61
16	191600	1564.68	52	195200	1535.82
17	191700	1563.86	53	195300	1535.04
18	191800	1563.05	54	195400	1534.25
19	191900	1562.23	55	195500	1533.47
20	192000	1561.41	56	195600	1532.68
21	192100	1560.61	57	195700	1531.90
22	192200	1559.79	58	195800	1531.12
23	192300	1558.98	59	195900	1530.33
24	192400	1558.17	60	196000	1529.55
25	192500	1557.36	61	196100	1528.77
26	192600	1556.55	62	196200	1527.99
27	192700	1555.75	63	196300	1527.22
28	192800	1554.94	64	196400	1526.44
29	192900	1554.13	65	196500	1525.66
30	193000	1553.33	66	196600	1524.89
31	193100	1552.52	67	196700	1524.11
32	193200	1551.72	68	196800	1523.34
33	193300	1550.92	69	196900	1522.56
34	193400	1550.12	70	197000	1521.79
35	193500	1549.32	71	197100	1521.02
36	193600	1548.51	72	197200	1520.25
Note:	For 200GHz spacing use either odd or even numbered channels.

Ordering Information:

DWDM	No. of CHs	1st CH	Fiber Type	Fiber Length	In/Out Connector
100=100G 200=200G	04=4 Channel 08=8 Channel 16=16 Channel 18=18 Channel N=N Channel ……	11=1568.77nm 20=1561.41nm 49=1538.19nm …… 60=1529.55nm SS=special	1-G652D 2-G657A 3-Other	1=1m 2=1.5m S=Specify	0=None 1=FC/APC 2=FC/UPC 3=SC/APC 4=SC/UPC 5=LC/UPC ……
