Name: Low Loss ABS Box CWDM Mux Demux 1270-1610nm 2-18CH Module
Brand: Guangdong Huajiayu Technology Co., Ltd
SKU: CWDM-ABS-16CH-A-1-90-10-LP
Price: 500.00 USD
Availability: InStock

Home > Products > CWDM MUX DEMUX >

Low Loss ABS Box CWDM Mux Demux 1270-1610nm 2-18CH Module

ABS CWDM Mux Demux module

Low loss CWDM Mux Demux 1270-1610nm

2-18CH CWDM Mux Demux with warranty

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC ISO9001

Model Number:

CWDM-ABS-16CH-A-1-90-10-LP

Document:

2~18CH CWDM ABS box type MU...UX.pdf

Request A Quote

Product Details

Insertion Loss:

< 1.5dB

Return Loss:

> 45dB

Polarization Dependent Loss:

< 0.2dB

Directivity:

> 50dB

Wavelength Range:

1270nm-1610nm

Storage Temperature:

-40℃~+85℃

Box Material:

ABS

Logo:

Can Be Customized

Package Type:

ABS, LGX, 1U Rackmount

Port:

1x16

Highlight:

ABS CWDM Mux Demux module

Low loss CWDM Mux Demux 1270-1610nm

2-18CH CWDM Mux Demux with warranty

Payment & Shipping Terms

Minimum Order Quantity

10 pcs

Price

1~999

Packaging Details

Roll, Neutrial Packing or with OEM LOGO

Delivery Time

5~8 working days

Payment Terms

T/T,Western Union,L/C

Supply Ability

100,000 pcs

ABS Box CWDM Mux Demux 1270nm to 1610nm 2 to 18CH for Multi-Wavelength Network Applications

Get Best Price

Video

ABS Box CWDM Multiplexer Module with Low Insertion Loss High Channel Isolation and Wide Operating Wavelength

Get Best Price

CWDM LGX Box 8+1CH+UPG 1271-1411, 1411-1611

Get Best Price

Video

Customizable 8CH 1270 to 1410nm CWDM MUX DEMUX for Dual Fiber Data Transmission with Advanced Thin Film Coating

Get Best Price

86-13632552896

sales@huajiayu.com

Contact Now

Product Description

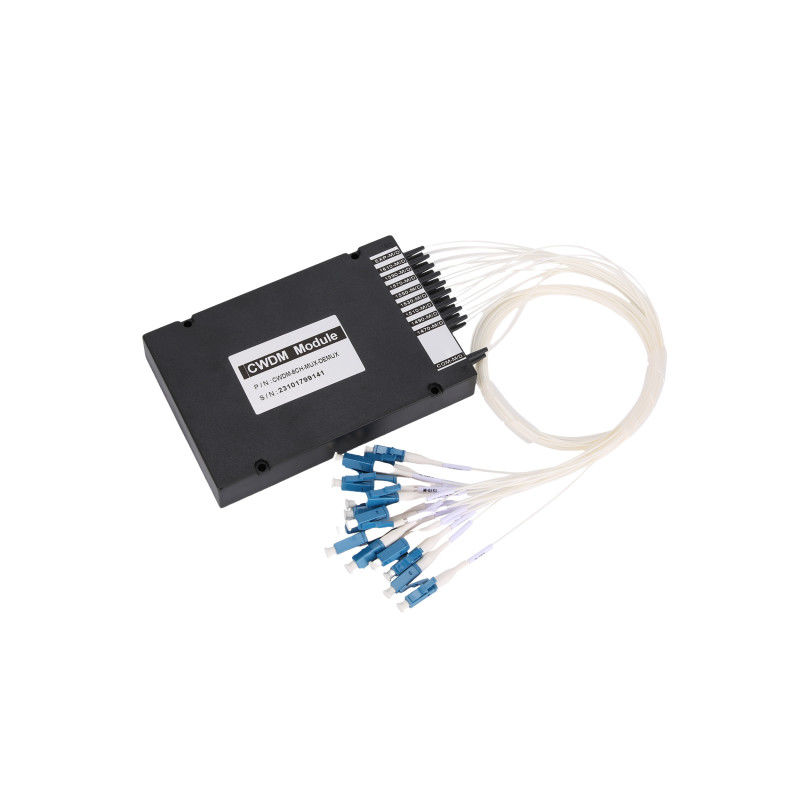

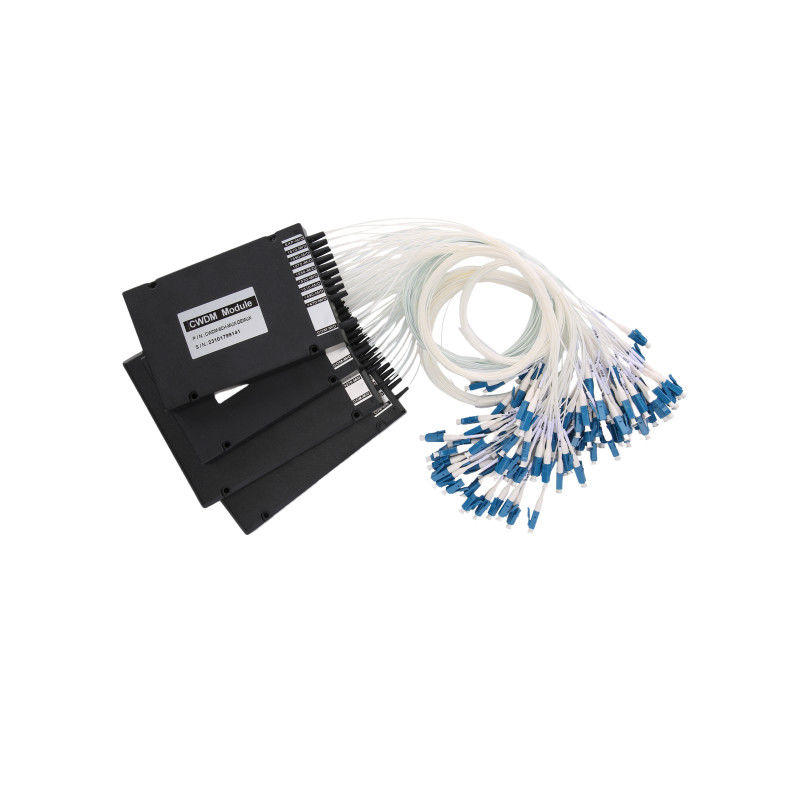

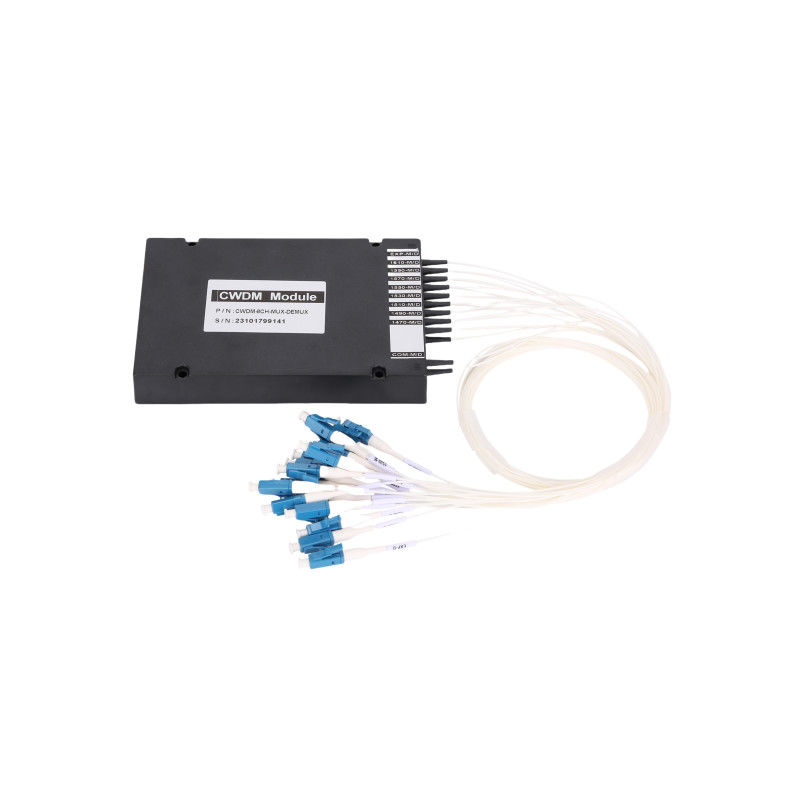

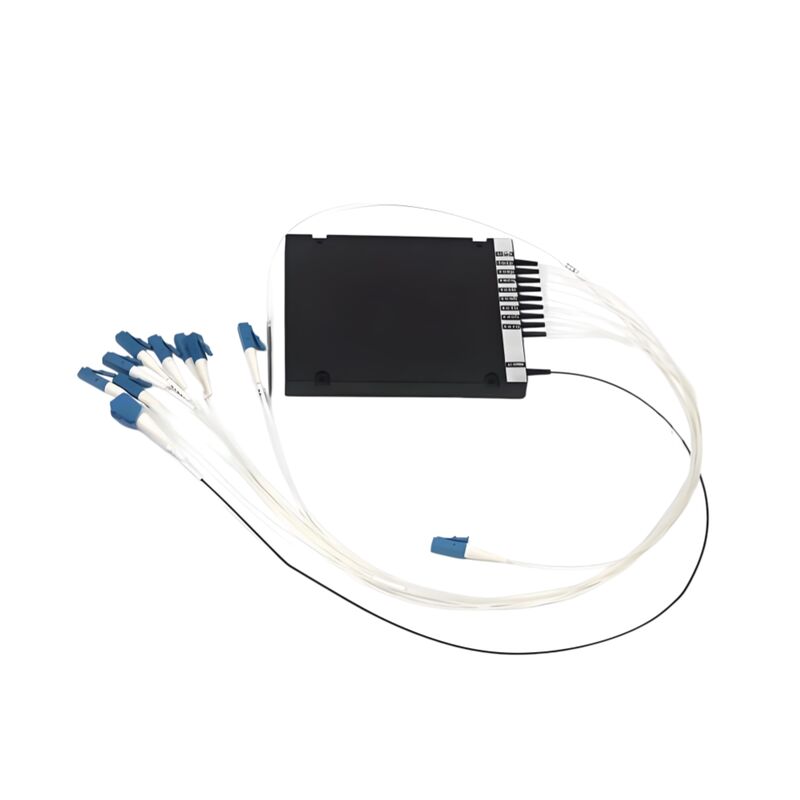

Low Loss ABS Box CWDM Mux Demux 1270-1610nm 2-18CH Module

The H J Y ABS Box CWDM Mux DeMux is designed for multi-wavelength CWDM network applications. It is based on TFF technology and operates at 20nm channel spacing ITU Grid CWDM wavelengths from 1270nm to 1610nm. The Mux Type, Port Configuration (2-18CH Ports, 1310nm Port, Upgrade Port, Monitoring Port), Box Size, Fiber Type, Fiber Length, and Connector Type can be customized.

Features

Low insertion loss
High isolation
Low polarization dependent loss
Compact design
Good channel-to-channel uniformity
Wide operating wavelength range
High reliability and high stability
Telcordia GR-1209-CORE-2001 compliant
Telcordia GR-1221-CORE-1999 compliant
ITU-T G.694.2 compliant
RoHS compliant

Applications

Data Center Interconnect Network
Metro Optical Transport Network
Telecommunications Network

Specifications

Channel Performance

Channels	1x4	1x8	1x16	1x18
Insertion Loss	<1.5dB	<2.4dB	<4.8dB	<5.4dB

Technical Parameters

Wavelength Range	1270-1610nm	Technology	TFF (Thin Film Filter)
Channel Spacing	20nm	Passband Ripple	≤0.5dB
Channel Passband	ITU±6.5nm	Channel Isolation	Adjacent ≥30dB Non-adjacent ≥45dB
Polarization Dependent Loss	≤0.2dB	Polarization Mode Dispersion	≤0.1ps
Directivity	≥50dB	Return Loss	≥45dB
Optical Power Handling	≤500mW	Temperature	Operating -40 to 85°C Storage -40 to 85°C
Fiber Type	SMF-28e+	Connector	LC/SC/FC or other
Net Weight	0.25kg	Package Dimensions	1008010mm 1208018mm Or other

Package Dimensions

Note: Fiber diameter options include 0.9mm/2.0mm/3.0mm. Fiber length is typically 1M or customizable. Connector types available: LC/SC/FC, or others. Please confirm specifications with us before ordering.

Order Information

Part Number Format: CWDM-ABS-XCH-①-②-③-④-⑤-⑥
When inquiring, please provide the correct P/N number according to our ordering information. Including a detailed description is recommended. We do not recommend choosing 250μm bare fiber pigtails for connector applications.

Wavelength	R-Wavelength	Fiber Type	Pigtails Diameter	Fiber Length	Connector
1270 nm 1290 nm ... 1590 nm 1610 nm Or 1271 nm 1291 nm ... 1591 nm 1611 nm	A: 1270~1610 B: 1270~1450 C: 1470~1610 D: 1271~1611 E: 1271~1451 F: 1471~1611	1: SMF-28e X: Others	25:250μm 90:900μm XX: Others	05:0.5m 10:1.0m 15:1.5m XX: Others	00:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC ST: ST/PC XX: Others

Part Number Example: CWDM-ABS-16CH-A-1-90-10-LP
Description: 18CH CWDM Multiplexer ABS box type, Wavelength 1270~1610nm, SMF-28e fiber, 0.9mm OD loose tube, 1.0m length fiber pigtails, LC/PC connectors at all ports.

Custom Parts Ordering: If you require customized specifications not listed above, please provide detailed requirements for your specific application.
