Ultra Low PDL Dual Fiber 4 Channels CWDM Mux Demux 1370-1530nm for Bidirectional Communication and Optimal Performance
Enabling Bidirectional Communication with Industry-Leading Performance
Key Features:
* 4-channel CWDM technology with 1370/1390/1410/1530nm wavelength configuration
* Ultra-low PDL (<0.2dB) ensures minimal signal distortion for data integrity
* Dual-fiber design supports simultaneous bidirectional transmission
* Compact LGX box packaging with SC/LC connector options
* -40℃~+75℃ operating temperature range
Technical Advantages:
✓ 0.8dB max insertion loss for optimal signal quality
✓ >30dB channel isolation prevents crosstalk
✓ 100Gbps aggregate capacity per fiber pair
✓ Telcordia GR-1209/1221 compliant reliability
Application Scenarios:
* Metro access networks
* 5G fronthaul/backhaul systems
* Enterprise dual-fiber ring architectures
* Data center interconnect (DCI) solutions

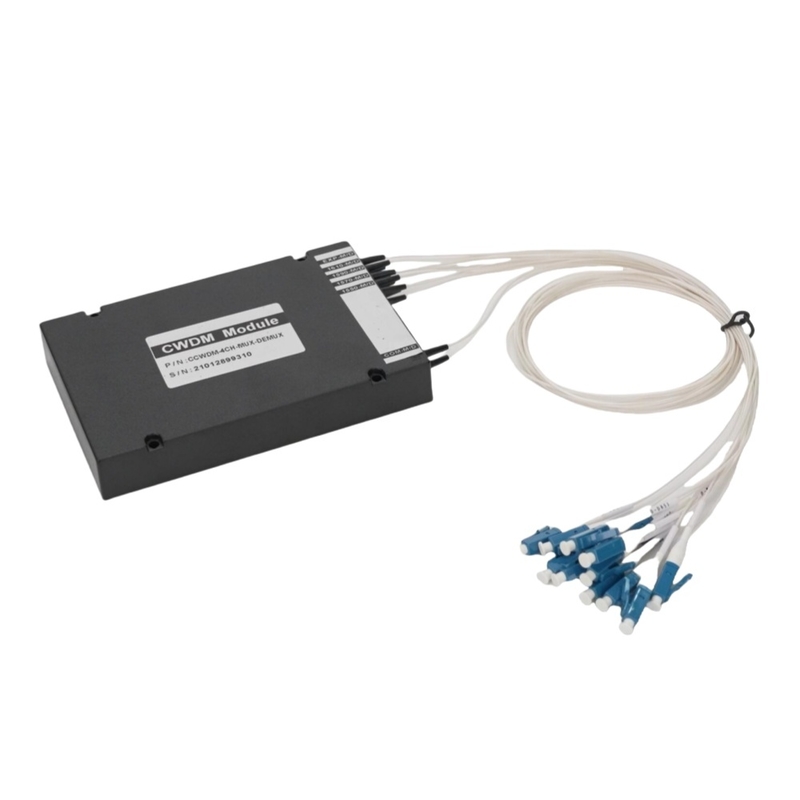

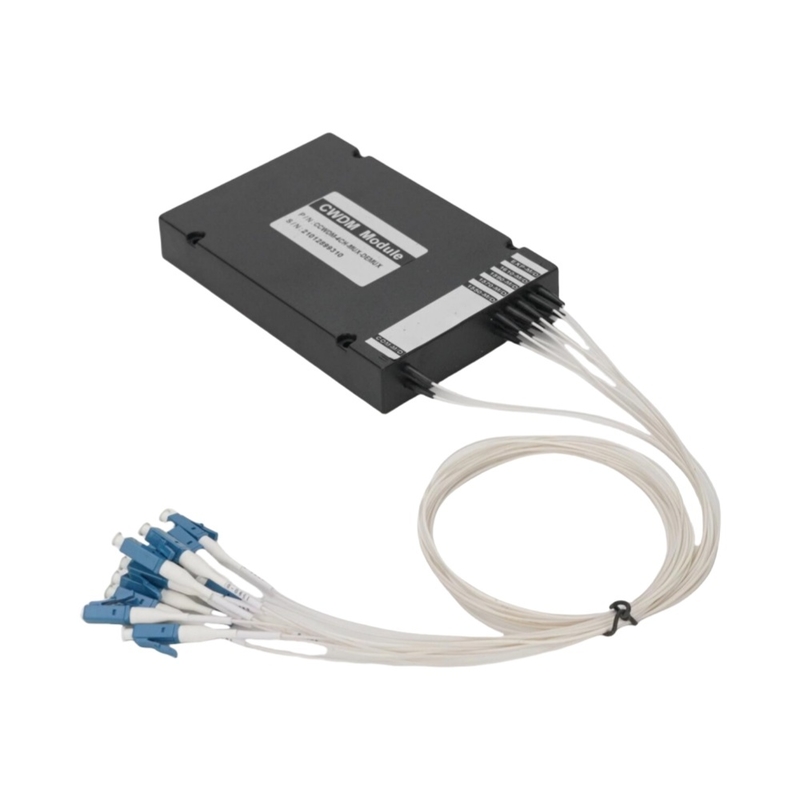

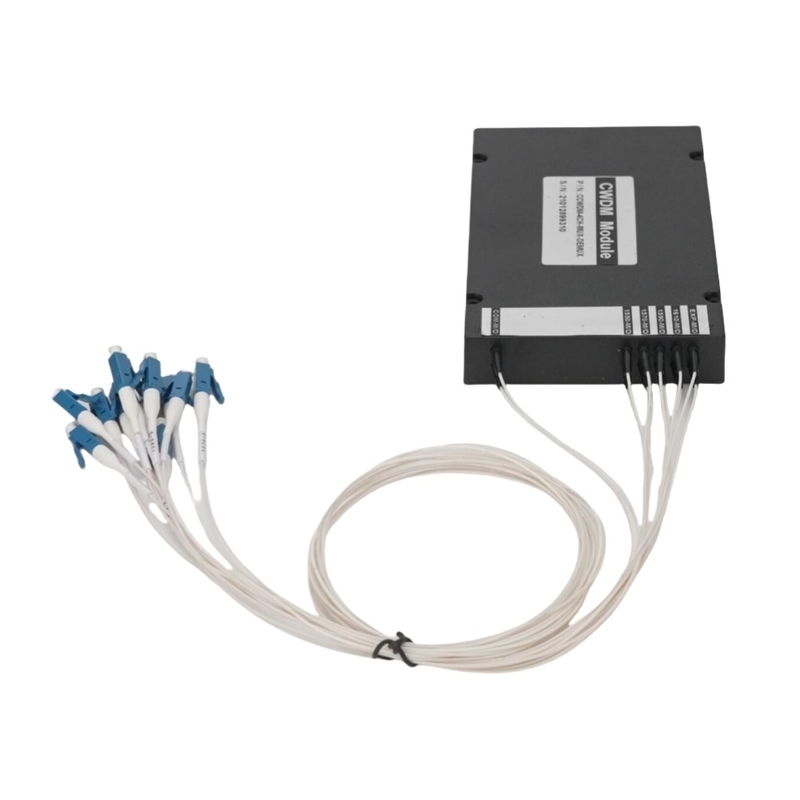

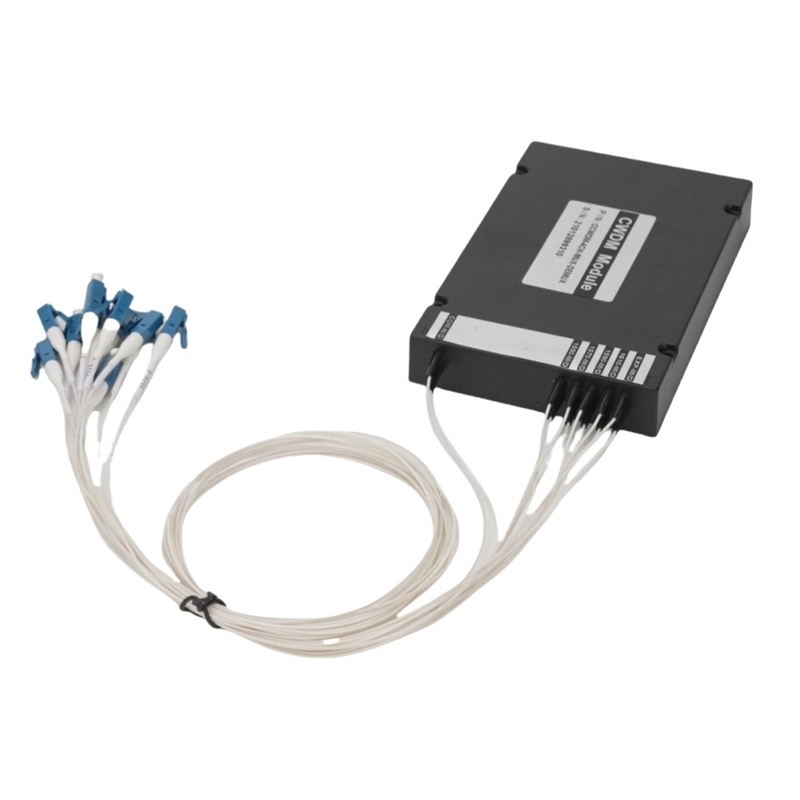

This professional-grade 4-channel CWDM mux demux module delivers ultra-low polarization dependent loss (PDL) performance for demanding bidirectional communication systems. Engineered for 1370-1530nm wavelength range, our dual-fiber CWDM solution provides 4 independent optical channels in single 1U rack space, reducing fiber count by 75% while maintaining <0.5dB ripple uniformity.
The hermetic sealed design ensures stable operation in harsh environments, making it ideal for FTTx deployments and mobile transport networks. With industry-leading >40dB return loss, this CWDM mux demux set significantly outperforms conventional WDM devices in OSNR-sensitive applications.
Package Includes:
1× 4CH CWDM Mux
1× 4CH CWDM Demux
2× Dust caps
Installation guide
Why Choose Our CWDM Solution?
→ Plug-and-play deployment with <15min commissioning time
→ 3-year warranty with lifetime technical support
→ RoHS/REACH compliant eco-friendly manufacturing
CWDM technology uses ITU standard 20nm spacing between the wavelengths, from 1270nm to 1610nm. Our CWDM module has 2 to 18 channels. The central wavelength of each channel is specified to one of the ITU-T grid wavelengths. The CWDM module features wide channel bandwidth (13nm). Its isolation is greater than 30dB for adjacent channels, and greater than 40dB for non-adjacent channels. The module also has high thermal stability to ensure reliable performance under different environment.
| Features |
Applications |
· Low Insertion Loss
· High Channel Isolation
· Optical path epoxy free
· Excellent thermal stability and reliability
· Good channel-to-channel uniformity
· Wide Operating Wavelength: 1270nm-1610nm /(1261nm~1611nm)
· Wide Operating Temperature: -20 to +70℃
· Telcordia GR-1221 Compliance and RoHS Environmental Protection Standard |
· CWDM Network
· Add/Drop System
· CATV Fiberoptic System
· Metro/Access Network
· Fiber Optical Amplifier |
Product specification
|
Channels
|
1x4
|
1x8
|
1x16
|
1x18
|
|
Insertion Loss
|
<1.5dB
|
<2.4dB
|
<4.8dB
|
<5.4dB
|
|
Wavelength Range
|
1270-1610nm
|
Technology
|
TFF (Thin Film Filter)
|
|
Channel Spacing
|
20nm
|
Passband Ripple
|
≤0.5dB
|
|
Channel Passband
|
ITU±6.5nm
|
Channel Isolation
|
Adjacent ≥30dB
Non-adjacent ≥45dB
|
|
Polarization Dependent Loss
|
≤0.2dB
|
Polarization Mode Dispersion
|
≤0.1ps
|
|
Directivity
|
≥50dB
|
Return Loss
|
≥45dB
|
|
Optical Power Handling
|
≤500mW
|
Temperature
|
Operating -40 to 85°C
Storage -40 to 85°C
|
|
Fiber Type
|
SMF-28e+
|
Connector
|
LC/SC/FC or other
|
|
Net Weight
|
0.25kg
|
Package dimensions
|
100*80*10mm
120*80*18mm
Or other
|
Package Dimension
Note:Fiber diameter can be 0.9mm/2.0mm/3.0mm. Fiber length is 1M or others. Connector can be LC/SC/FC, or others. If you want to order, please check with us first.
Order information
P/N: CWDM-ABS-XCH-①-②-③-④-⑤-⑥
When you inquire, please provide the correct P/N number according to our ordering information, and attach the appropriate description would be better. If need any connector, we do not recommend choosing a 250μm bare fiber pigtail.
|
①
|
②
|
③
|
④
|
⑤
|
⑥
|
|
Wavelength
|
R- Wavelength
|
Fiber Type
|
Pigtails Diameter
|
Fiber Length
|
Connector
|
|
1270 nm
1290 nm
…
1590 nm
1610 nm
Or
1271 nm
1291 nm
…
1591 nm
1611 nm
|
A: 1270~1610
B: 1270~1450
C: 1470~1610
D: 1271~1611
E: 1271~1451
F: 1471~1611
|
1: SMF-28e
X: Others
|
25:250μm
90:900μm
XX:
Others
|
05:0.5m
10:1.0m
15:1.5m
XX:
Others
|
00:None
FP: FC/PC
FA: FC/APC
SP: SC/PC
SA: SC/APC
LP: LC/PC
LA: LC/APC
ST: ST/PC
XX: Others
|
Part Number Example: CWDM-ABS-18CH-A-1-90-10-LP
Description: 18CH CWDM Multiplexer ABS box type, Wavelength 1270~1610nm,SMF-28e fiber, 0.9mm OD loose tube,1.0m length fiber pigtails, LC/PC connectors at all ports.
Ordering Information for Custom Parts:
If you need to customize other specifications, please provide detailed description for your requirement.
