Dual Fiber 4-Channel CWDM Mux/Demux (1350-1410nm) with Ultra-Low PDL
Premium Performance Optical Multiplexing Solution

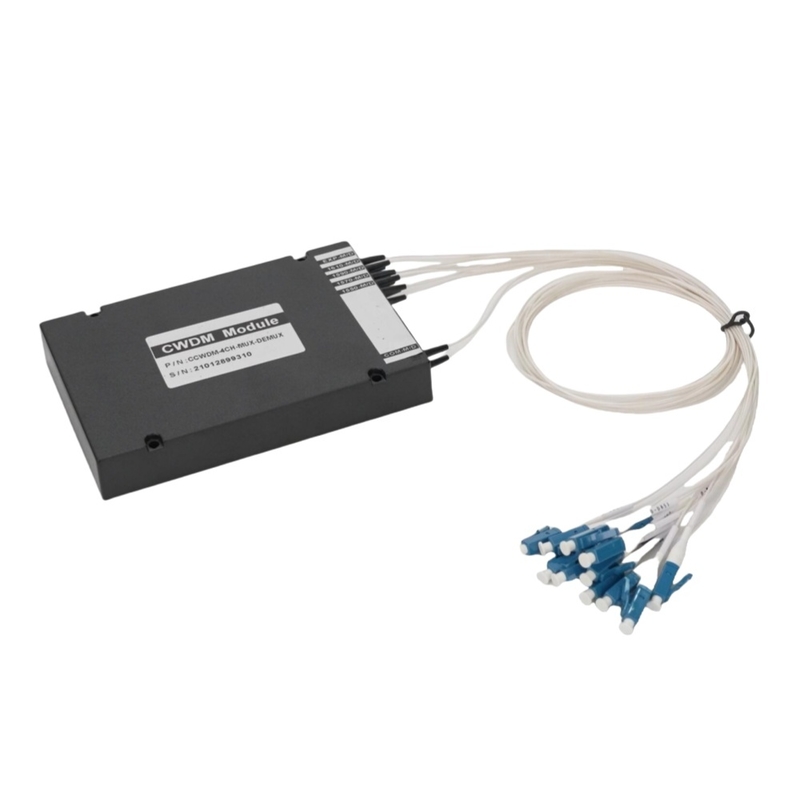

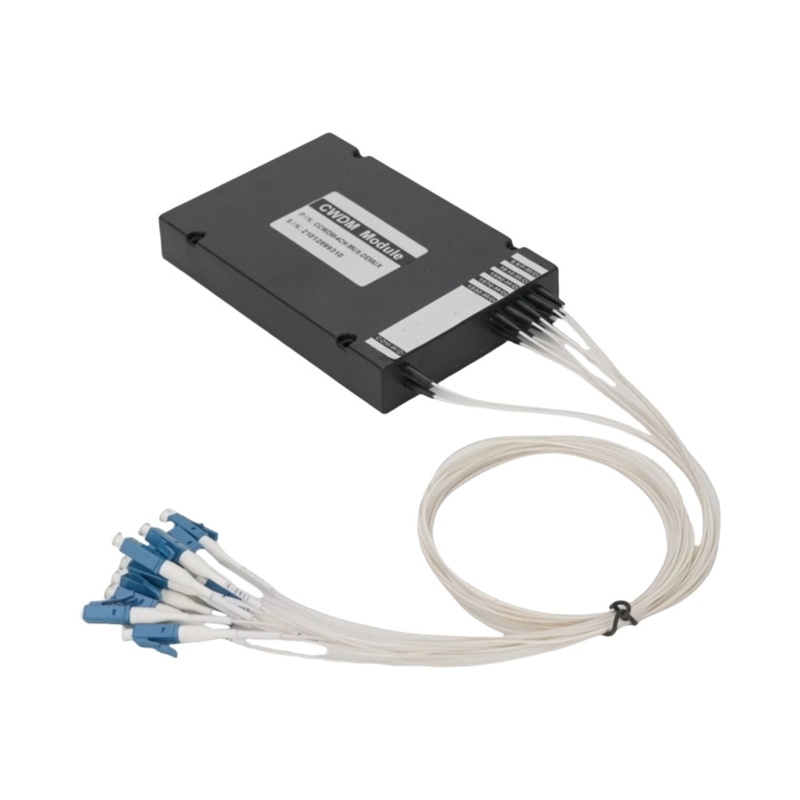

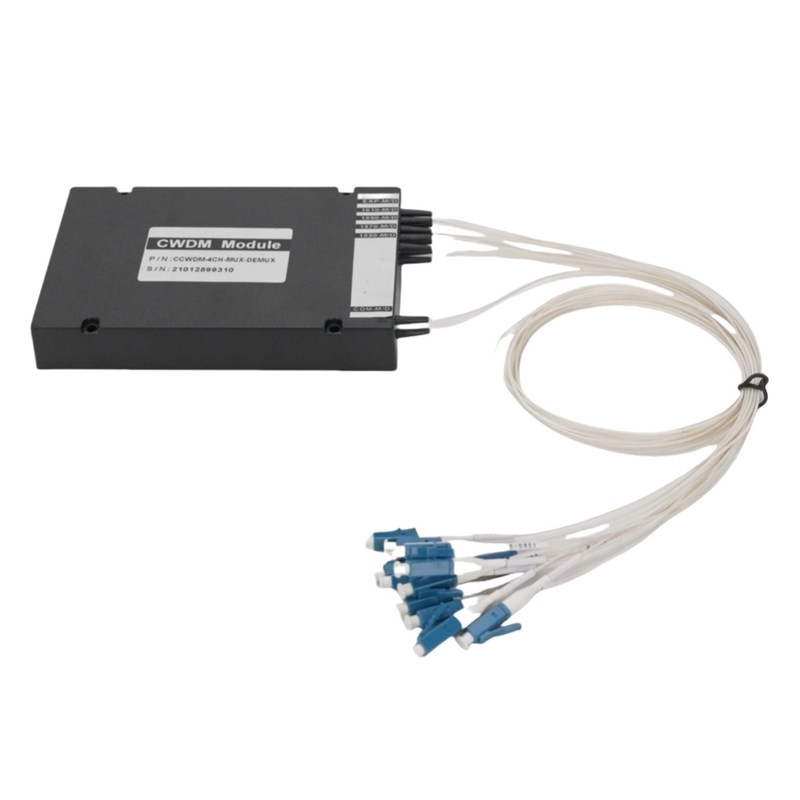

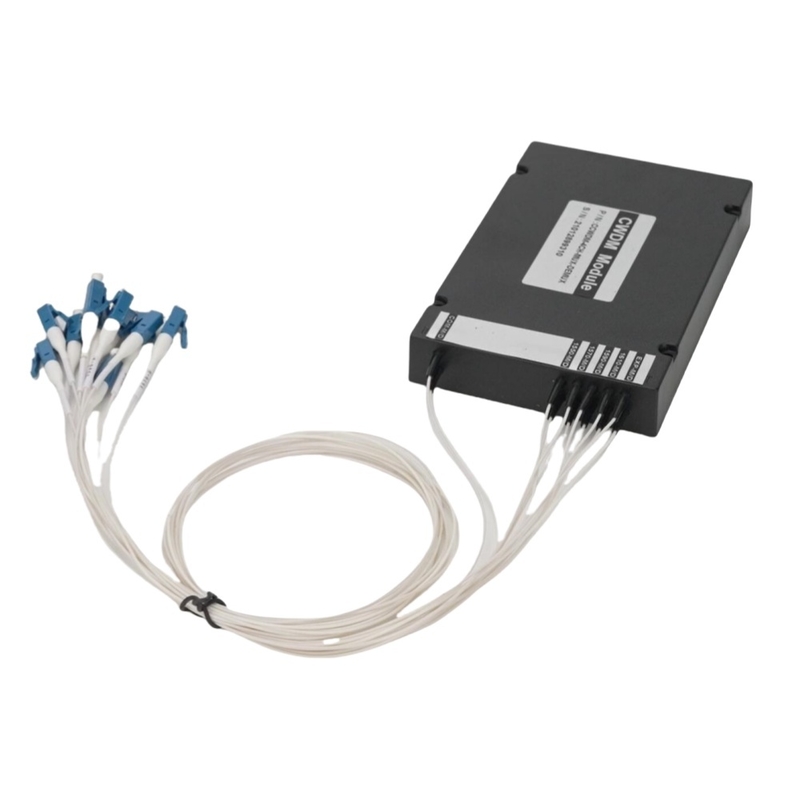

Our Dual Fiber 4-Channel CWDM Mux/Demux delivers exceptional wavelength division multiplexing performance across the 1350-1410nm spectrum. Engineered for network efficiency, this compact module features:
* Ultra-Low PDL (<0.2dB): Minimizes polarization-dependent loss for consistent signal quality
* 4-Channel Capacity: Supports simultaneous transmission of multiple signals
* Dual-Fiber Design: Enables bidirectional communication with superior reliability
* 1350-1410nm Range: Optimized for specific wavelength requirements
* Industrial-Grade Stability: -40°C to +85°C operating temperature range
Technical Highlights
Precision Optical Engineering:
* Insertion loss: ≤1.8dB
* Channel spacing: 20nm standard (customizable)
* 3dB bandwidth: ±6.5nm
* Directivity: >50dB
* Return loss: >45dB
Applications:
✔ Metropolitan area networks
✔ Fiber-to-the-x (FTTx) systems
✔ CATV networks
✔ Enterprise network expansion
✔ Mobile fronthaul/backhaul
This CWDM module is ROHS compliant and comes with optional 19" rack mount or LGX box packaging. Custom channel configurations available upon request.
Why Choose Our CWDM Solution?
-
Field-Proven Reliability: Thousands deployed in carrier-grade networks
-
Plug-and-Play Installation: No configuration required
-
Future-Proof Design: Compatible with most OEM equipment
-
Cost-Effective: Reduces fiber infrastructure requirements by 75%
-
5-Year Warranty: Industry-leading product support
For technical drawings, test reports, or OEM inquiries, please contact our optical engineering team. Volume discounts available for qualified projects.
CWDM technology uses ITU standard 20nm spacing between the wavelengths, from 1270nm to 1610nm. Our CWDM module has 2 to 18 channels. The central wavelength of each channel is specified to one of the ITU-T grid wavelengths. The CWDM module features wide channel bandwidth (13nm). Its isolation is greater than 30dB for adjacent channels, and greater than 40dB for non-adjacent channels. The module also has high thermal stability to ensure reliable performance under different environment.
| Features |
Applications |
· Low Insertion Loss
· High Channel Isolation
· Optical path epoxy free
· Excellent thermal stability and reliability
· Good channel-to-channel uniformity
· Wide Operating Wavelength: 1270nm-1610nm /(1261nm~1611nm)
· Wide Operating Temperature: -20 to +70℃
· Telcordia GR-1221 Compliance and RoHS Environmental Protection Standard |
· CWDM Network
· Add/Drop System
· CATV Fiberoptic System
· Metro/Access Network
· Fiber Optical Amplifier |
Product specification
|
Channels
|
1x4
|
1x8
|
1x16
|
1x18
|
|
Insertion Loss
|
<1.5dB
|
<2.4dB
|
<4.8dB
|
<5.4dB
|
|
Wavelength Range
|
1270-1610nm
|
Technology
|
TFF (Thin Film Filter)
|
|
Channel Spacing
|
20nm
|
Passband Ripple
|
≤0.5dB
|
|
Channel Passband
|
ITU±6.5nm
|
Channel Isolation
|
Adjacent ≥30dB
Non-adjacent ≥45dB
|
|
Polarization Dependent Loss
|
≤0.2dB
|
Polarization Mode Dispersion
|
≤0.1ps
|
|
Directivity
|
≥50dB
|
Return Loss
|
≥45dB
|
|
Optical Power Handling
|
≤500mW
|
Temperature
|
Operating -40 to 85°C
Storage -40 to 85°C
|
|
Fiber Type
|
SMF-28e+
|
Connector
|
LC/SC/FC or other
|
|
Net Weight
|
0.25kg
|
Package dimensions
|
100*80*10mm
120*80*18mm
Or other
|
Package Dimension
Note:Fiber diameter can be 0.9mm/2.0mm/3.0mm. Fiber length is 1M or others. Connector can be LC/SC/FC, or others. If you want to order, please check with us first.
Order information
P/N: CWDM-ABS-XCH-①-②-③-④-⑤-⑥
When you inquire, please provide the correct P/N number according to our ordering information, and attach the appropriate description would be better. If need any connector, we do not recommend choosing a 250μm bare fiber pigtail.
|
①
|
②
|
③
|
④
|
⑤
|
⑥
|
|
Wavelength
|
R- Wavelength
|
Fiber Type
|
Pigtails Diameter
|
Fiber Length
|
Connector
|
|
1270 nm
1290 nm
…
1590 nm
1610 nm
Or
1271 nm
1291 nm
…
1591 nm
1611 nm
|
A: 1270~1610
B: 1270~1450
C: 1470~1610
D: 1271~1611
E: 1271~1451
F: 1471~1611
|
1: SMF-28e
X: Others
|
25:250μm
90:900μm
XX:
Others
|
05:0.5m
10:1.0m
15:1.5m
XX:
Others
|
00:None
FP: FC/PC
FA: FC/APC
SP: SC/PC
SA: SC/APC
LP: LC/PC
LA: LC/APC
ST: ST/PC
XX: Others
|
Part Number Example: CWDM-ABS-18CH-A-1-90-10-LP
Description: 18CH CWDM Multiplexer ABS box type, Wavelength 1270~1610nm,SMF-28e fiber, 0.9mm OD loose tube,1.0m length fiber pigtails, LC/PC connectors at all ports.
Ordering Information for Custom Parts:
If you need to customize other specifications, please provide detailed description for your requirement.
Your message must be between 20-3,000 characters!
