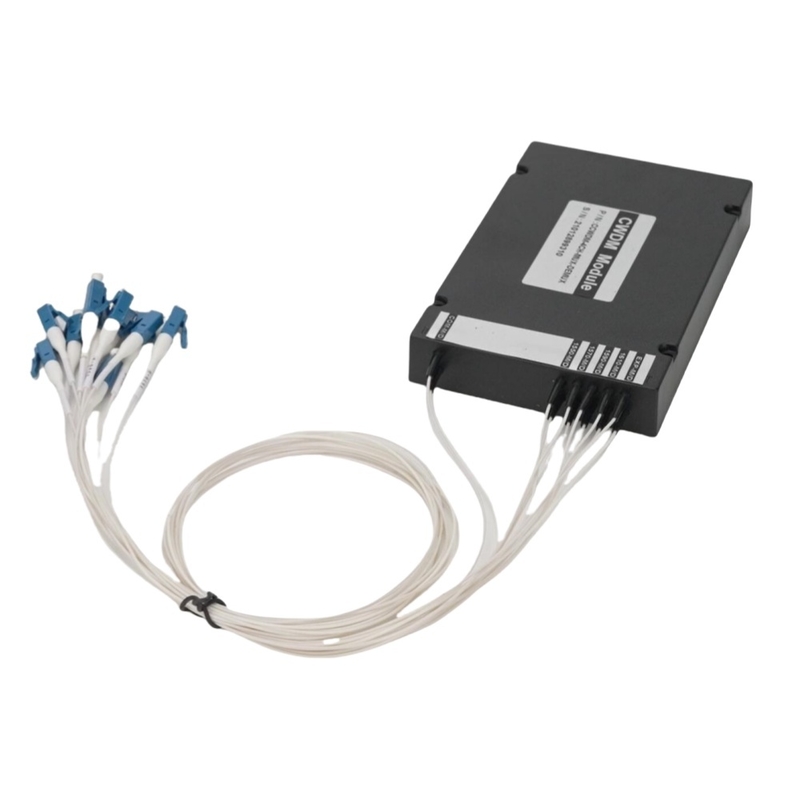

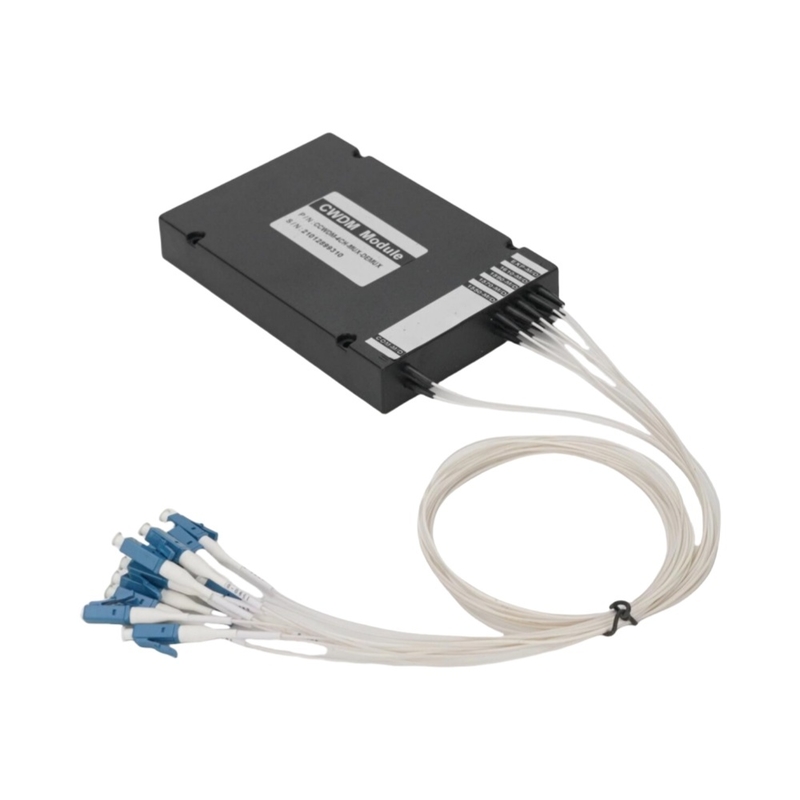

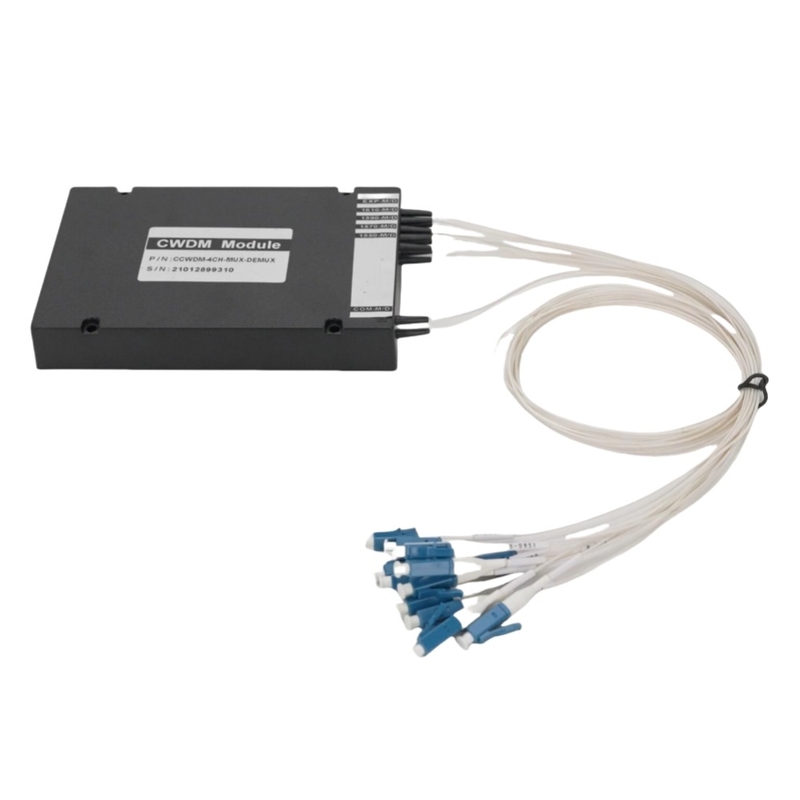

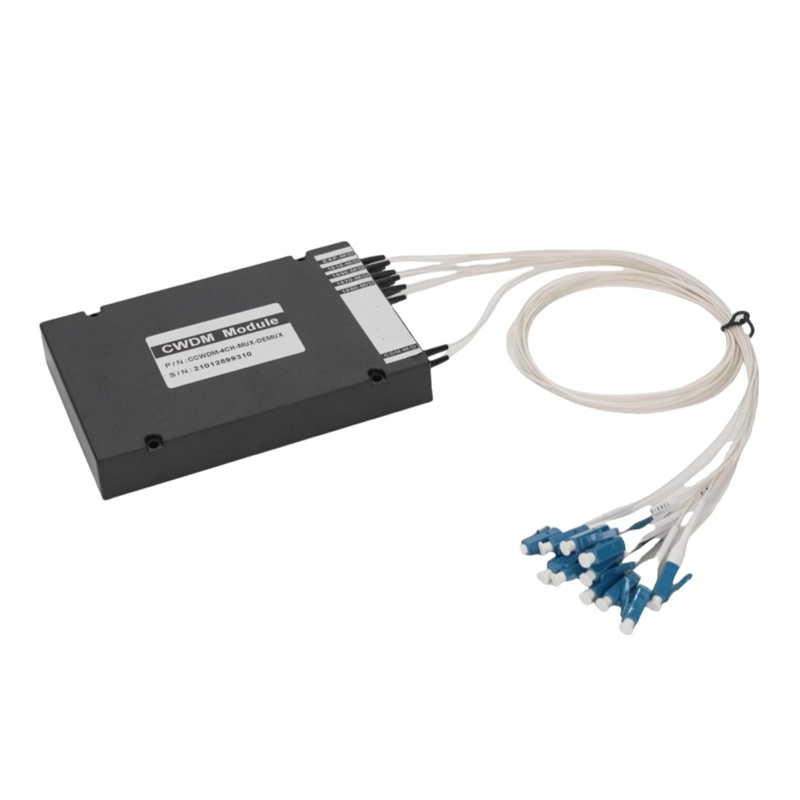

Dual Fiber 4 Channels CWDM Mux Demux 1470-1530nm for Fiber Optic Solutions in Metro Access 5G fronthaul and Data Centers
Dual Fiber 4-Channel CWDM Mux/Demux (1470-1530nm) - Future-Ready Optical Networking Solution
Product Highlights
* 4-Channel CWDM Technology: Precision wavelength division from 1470nm to 1530nm
* Dual-Fiber Design: Bidirectional transmission for metro access networks
* 5G Fronthaul Ready: Optimized for 10G/25G Ethernet in C-RAN architectures
* Data Center Grade: <1.5dB insertion loss with 40km transmission capability
* Industrial Stability: Operating temperature range -40°C to +85°C
Technical Advantages
Our CWDM multiplexer/demultiplexer implements thin-film filter technology to deliver:
* 100GHz channel spacing compliant with ITU-T G.694.2
* ≤3dB PDL (Polarization Dependent Loss)
* 30dB adjacent channel isolation
* Compact LGX box packaging with SC/LC connector options
Application Scenarios
✔ 5G Mobile Fronthaul: Aggregates CPRI/eCPRI streams
✔ Metro Edge Networks: Cost-effective wavelength expansion
✔ Data Center Interconnect: 4λ capacity over single fiber pair
✔ Fiber-to-the-Home: Enables multi-service delivery
CWDM technology uses ITU standard 20nm spacing between the wavelengths, from 1270nm to 1610nm. Our CWDM module has 2 to 18 channels. The central wavelength of each channel is specified to one of the ITU-T grid wavelengths. The CWDM module features wide channel bandwidth (13nm). Its isolation is greater than 30dB for adjacent channels, and greater than 40dB for non-adjacent channels. The module also has high thermal stability to ensure reliable performance under different environment.
| Features |
Applications |
· Low Insertion Loss
· High Channel Isolation
· Optical path epoxy free
· Excellent thermal stability and reliability
· Good channel-to-channel uniformity
· Wide Operating Wavelength: 1270nm-1610nm /(1261nm~1611nm)
· Wide Operating Temperature: -20 to +70℃
· Telcordia GR-1221 Compliance and RoHS Environmental Protection Standard |
· CWDM Network
· Add/Drop System
· CATV Fiberoptic System
· Metro/Access Network
· Fiber Optical Amplifier |
Product specification
|
Channels
|
1x4
|
1x8
|
1x16
|
1x18
|
|
Insertion Loss
|
<1.5dB
|
<2.4dB
|
<4.8dB
|
<5.4dB
|
|
Wavelength Range
|
1270-1610nm
|
Technology
|
TFF (Thin Film Filter)
|
|
Channel Spacing
|
20nm
|
Passband Ripple
|
≤0.5dB
|
|
Channel Passband
|
ITU±6.5nm
|
Channel Isolation
|
Adjacent ≥30dB
Non-adjacent ≥45dB
|
|
Polarization Dependent Loss
|
≤0.2dB
|
Polarization Mode Dispersion
|
≤0.1ps
|
|
Directivity
|
≥50dB
|
Return Loss
|
≥45dB
|
|
Optical Power Handling
|
≤500mW
|
Temperature
|
Operating -40 to 85°C
Storage -40 to 85°C
|
|
Fiber Type
|
SMF-28e+
|
Connector
|
LC/SC/FC or other
|
|
Net Weight
|
0.25kg
|
Package dimensions
|
100*80*10mm
120*80*18mm
Or other
|
Package Dimension
Note:Fiber diameter can be 0.9mm/2.0mm/3.0mm. Fiber length is 1M or others. Connector can be LC/SC/FC, or others. If you want to order, please check with us first.
Order information
P/N: CWDM-ABS-XCH-①-②-③-④-⑤-⑥
When you inquire, please provide the correct P/N number according to our ordering information, and attach the appropriate description would be better. If need any connector, we do not recommend choosing a 250μm bare fiber pigtail.
|
①
|
②
|
③
|
④
|
⑤
|
⑥
|
|
Wavelength
|
R- Wavelength
|
Fiber Type
|
Pigtails Diameter
|
Fiber Length
|
Connector
|
|
1270 nm
1290 nm
…
1590 nm
1610 nm
Or
1271 nm
1291 nm
…
1591 nm
1611 nm
|
A: 1270~1610
B: 1270~1450
C: 1470~1610
D: 1271~1611
E: 1271~1451
F: 1471~1611
|
1: SMF-28e
X: Others
|
25:250μm
90:900μm
XX:
Others
|
05:0.5m
10:1.0m
15:1.5m
XX:
Others
|
00:None
FP: FC/PC
FA: FC/APC
SP: SC/PC
SA: SC/APC
LP: LC/PC
LA: LC/APC
ST: ST/PC
XX: Others
|
Part Number Example: CWDM-ABS-18CH-A-1-90-10-LP
Description: 18CH CWDM Multiplexer ABS box type, Wavelength 1270~1610nm,SMF-28e fiber, 0.9mm OD loose tube,1.0m length fiber pigtails, LC/PC connectors at all ports.
Ordering Information for Custom Parts:
If you need to customize other specifications, please provide detailed description for your requirement.
