Name: Dual Fiber 4 Channels CWDM Mux Demux 1270 to 1330nm 1.0dB Typical IL LC UPC ABS BOX for Fiber Optic Networking Solution
Brand: Guangdong Huajiayu Technology Co., Ltd
SKU: HJY-CWDM-ABS-8CH-2
Price: 500.00 USD
Availability: InStock

Home > products > CWDM MUX DEMUX >

Dual Fiber 4 Channels CWDM Mux Demux 1270 to 1330nm 1.0dB Typical IL LC UPC ABS BOX for Fiber Optic Networking Solution

4 Channels CWDM Mux Demux

1270 to 1330nm CWDM Mux Demux

Dual Fiber CWDM Mux Demux

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC ISO9001

Model Number:

HJY-CWDM-ABS-8CH-2

Request A Quote

Product Details

Insertion Loss:

< 1.5dB

Wavelength Range:

1270nm-1330nm

Number Of Channels:

Storage Temperature:

-40℃~+85℃

Connector Type:

LC/UPC, LC/APC, SC/UPC, SC/APC

Type:

Dual Fiber

Highlight:

4 Channels CWDM Mux Demux

1270 to 1330nm CWDM Mux Demux

Dual Fiber CWDM Mux Demux

Payment & Shipping Terms

Minimum Order Quantity

10 pcs

Price

1~999

Packaging Details

Roll, Neutrial Packing or with OEM LOGO

Delivery Time

5~8 working days

Payment Terms

T/T,Western Union,L/C

Supply Ability

100,000 pcs

Dual Fiber 4 Channels CWDM Mux Demux 1350 to 1410nm Low PDL Polarization Dependent Loss for Optimal Performance

Get Best Price

Video

Ultra Low PDL Dual Fiber 4 Channels CWDM Mux Demux 1370-1530nm for Bidirectional Communication and Optimal Performance

Get Best Price

Video

16 Channels CWDM Mux Demux with Monitor and Expansion Port 4.5dB Typical IL LC/UPC Single Fiber ABS Box for Network Solutions

Get Best Price

Video

16 Channel Single Fiber CWDM Mux Demux Expansion and Monitor Ports 4.5dB Typical IL LC UPC

Get Best Price

8613556217949

francesgdut@gmail.com

Contact Now

Product Description

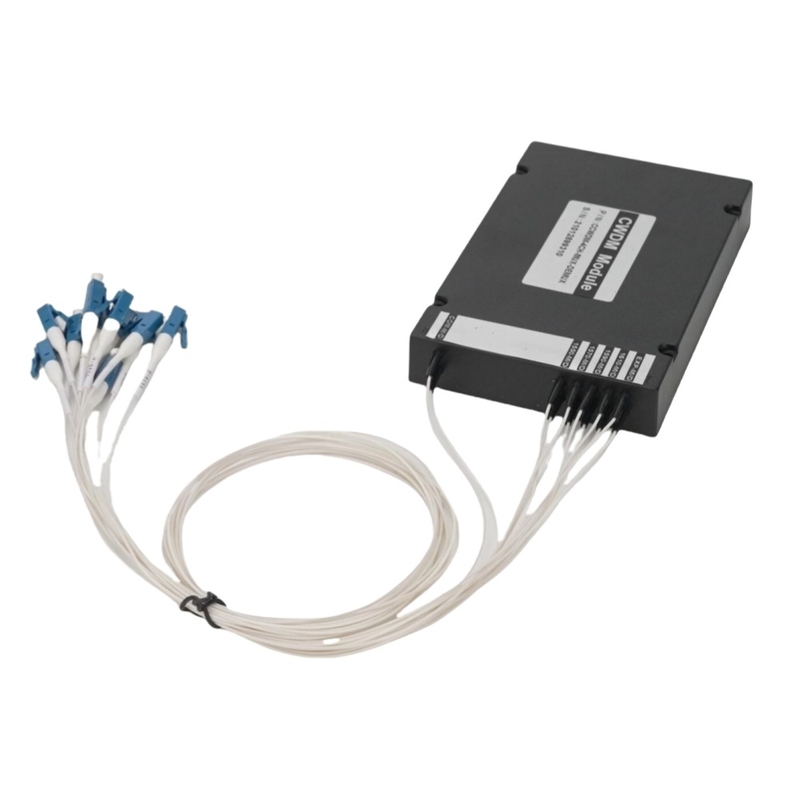

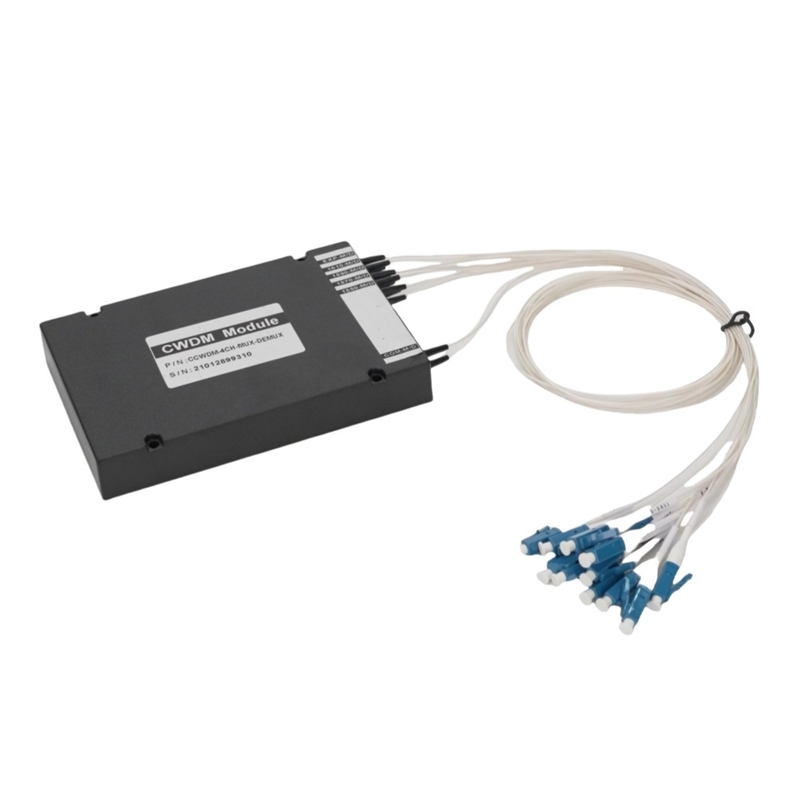

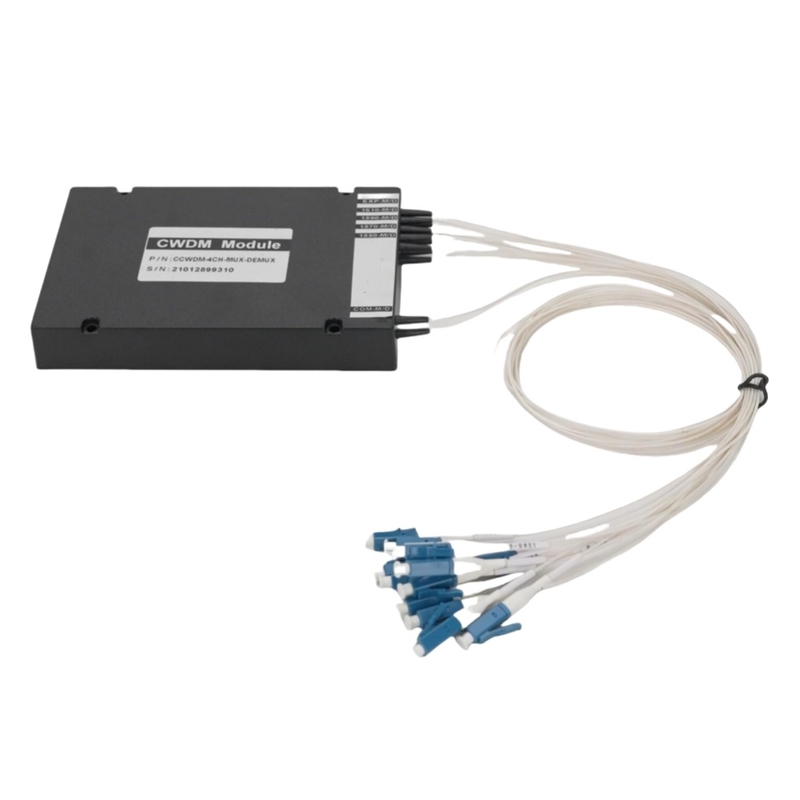

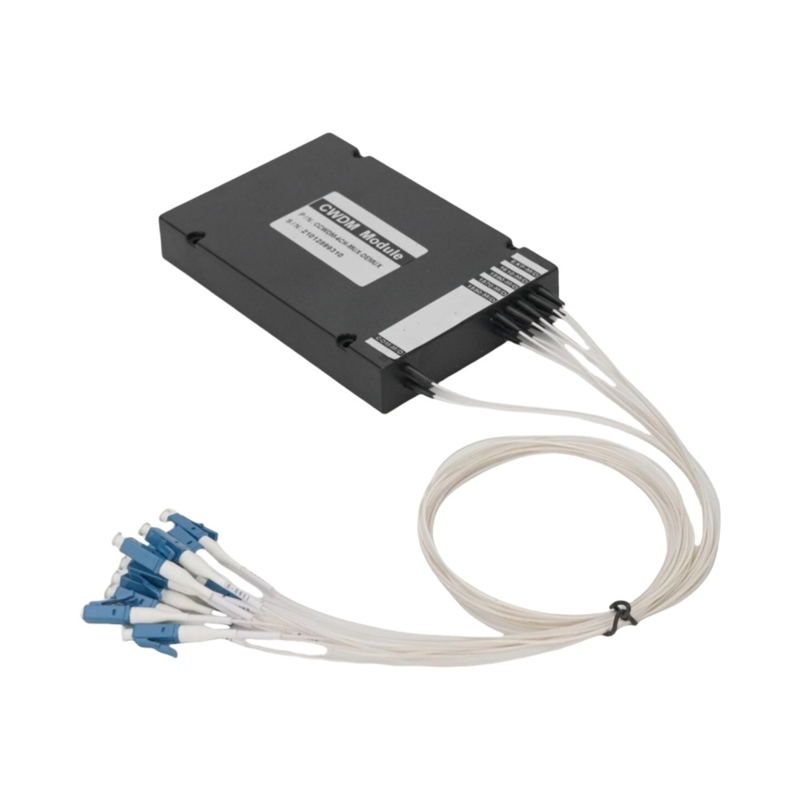

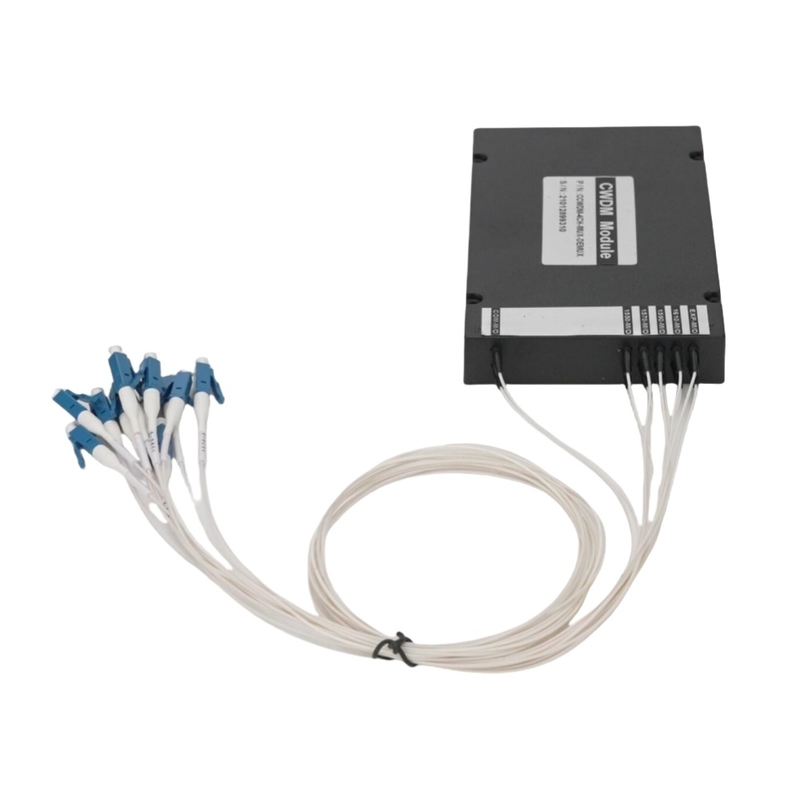

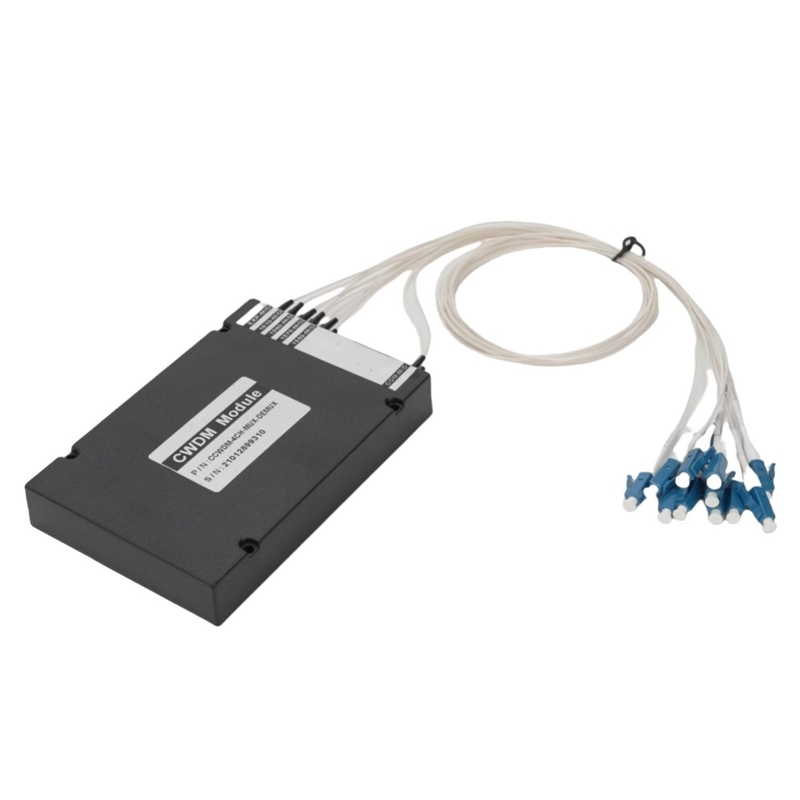

Dual Fiber 4 Channels CWDM Mux Demux 1270 to 1330nm 1.0dB Typical IL LC UPC ABS BOX for Fiber Optic Networking Solution

Dual Fiber 4-Channel CWDM Mux/Demux (1270-1330nm)
Optimize your fiber optic network with our high-performance CWDM Mux/Demux module featuring:
✓ 4-channel dual fiber design (1270/1290/1310/1330nm)
✓ Ultra-low insertion loss (1.0dB typical)
✓ LC/UPC connector for stable signal transmission
✓ Durable ABS box protects delicate optical components

Key Benefits:

* Bandwidth Expansion: Multiply fiber capacity without additional cabling

* Plug-and-Play: Pre-tested for seamless integration with existing infrastructure

* Telcordia-GR-1221 Compliant: Ensures carrier-grade reliability

Ideal for:
◉ Metro access networks
◉ 5G fronthaul/backhaul
◉ Data center interconnects

CWDM technology uses ITU standard 20nm spacing between the wavelengths, from 1270nm to 1610nm. Our CWDM module has 2 to 18 channels. The central wavelength of each channel is specified to one of the ITU-T grid wavelengths. The CWDM module features wide channel bandwidth (13nm). Its isolation is greater than 30dB for adjacent channels, and greater than 40dB for non-adjacent channels. The module also has high thermal stability to ensure reliable performance under different environment.

Features	Applications
· Low Insertion Loss · High Channel Isolation · Optical path epoxy free · Excellent thermal stability and reliability · Good channel-to-channel uniformity · Wide Operating Wavelength: 1270nm-1610nm /(1261nm~1611nm) · Wide Operating Temperature: -20 to +70℃ · Telcordia GR-1221 Compliance and RoHS Environmental Protection Standard	· CWDM Network · Add/Drop System · CATV Fiberoptic System · Metro/Access Network · Fiber Optical Amplifier

Product specification

Channels	1x4	1x8	1x16	1x18
Insertion Loss	<1.5dB	<2.4dB	<4.8dB	<5.4dB

Wavelength Range	1270-1610nm	Technology	TFF (Thin Film Filter)
Channel Spacing	20nm	Passband Ripple	≤0.5dB
Channel Passband	ITU±6.5nm	Channel Isolation	Adjacent ≥30dB Non-adjacent ≥45dB
Polarization Dependent Loss	≤0.2dB	Polarization Mode Dispersion	≤0.1ps
Directivity	≥50dB	Return Loss	≥45dB
Optical Power Handling	≤500mW	Temperature	Operating -40 to 85°C Storage -40 to 85°C
Fiber Type	SMF-28e+	Connector	LC/SC/FC or other
Net Weight	0.25kg	Package dimensions	1008010mm 1208018mm Or other

Package Dimension

Note:Fiber diameter can be 0.9mm/2.0mm/3.0mm. Fiber length is 1M or others. Connector can be LC/SC/FC, or others. If you want to order, please check with us first.

Order information

P/N: CWDM-ABS-XCH-①-②-③-④-⑤-⑥

When you inquire, please provide the correct P/N number according to our ordering information, and attach the appropriate description would be better. If need any connector, we do not recommend choosing a 250μm bare fiber pigtail.

①	②	③	④	⑤	⑥
Wavelength	R- Wavelength	Fiber Type	Pigtails Diameter	Fiber Length	Connector
1270 nm 1290 nm … 1590 nm 1610 nm Or 1271 nm 1291 nm … 1591 nm 1611 nm	A: 1270~1610 B: 1270~1450 C: 1470~1610 D: 1271~1611 E: 1271~1451 F: 1471~1611	1: SMF-28e X: Others	25:250μm 90:900μm XX: Others	05:0.5m 10:1.0m 15:1.5m XX: Others	00:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC ST: ST/PC XX: Others

Part Number Example: CWDM-ABS-18CH-A-1-90-10-LP

Description: 18CH CWDM Multiplexer ABS box type, Wavelength 1270~1610nm,SMF-28e fiber, 0.9mm OD loose tube,1.0m length fiber pigtails, LC/PC connectors at all ports.

Ordering Information for Custom Parts:

If you need to customize other specifications, please provide detailed description for your requirement.
