Name: SC/UPC 16CH CWDM Mux Demux Module Compatible with All Major Brands of CWDM Transceivers for CWDM OADM Performance
Brand: Guangdong Huajiayu Technology Co., Ltd
SKU: HJY-CWDM-ABS-16CH-A-2
Price: 500.00 USD
Availability: InStock

Home > products > CWDM MUX DEMUX >

SC/UPC 16CH CWDM Mux Demux Module Compatible with All Major Brands of CWDM Transceivers for CWDM OADM Performance

SC/UPC CWDM Mux Demux Module

16CH CWDM Mux Demux Module

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC ISO9001

Model Number:

HJY-CWDM-ABS-16CH-A-2

Request A Quote

Product Details

Insertion Loss:

< 2.2dB

Wavelength Range:

1270nm-1610nm

Number Of Channels:

16 Wavelengthes

Storage Temperature:

-40℃~+85℃

Connector Type:

LC/UPC, LC/APC, SC/UPC, SC/APC

Type:

Cwdm Oadm

Highlight:

SC/UPC CWDM Mux Demux Module

16CH CWDM Mux Demux Module

Payment & Shipping Terms

Minimum Order Quantity

1 pcs

Price

1~999

Packaging Details

Neutrial Packing or with OEM LOGO

Delivery Time

5~8 working days

Payment Terms

T/T,Western Union,L/C

Supply Ability

100,000 pcs

Dual Fiber 4 Channels CWDM Mux Demux 1350 to 1410nm Low PDL Polarization Dependent Loss for Optimal Performance

Get Best Price

Video

Ultra Low PDL Dual Fiber 4 Channels CWDM Mux Demux 1370-1530nm for Bidirectional Communication and Optimal Performance

Get Best Price

Video

16 Channels CWDM Mux Demux with Monitor and Expansion Port 4.5dB Typical IL LC/UPC Single Fiber ABS Box for Network Solutions

Get Best Price

Video

16 Channel Single Fiber CWDM Mux Demux Expansion and Monitor Ports 4.5dB Typical IL LC UPC

Get Best Price

8613556217949

francesgdut@gmail.com

Contact Now

Product Description

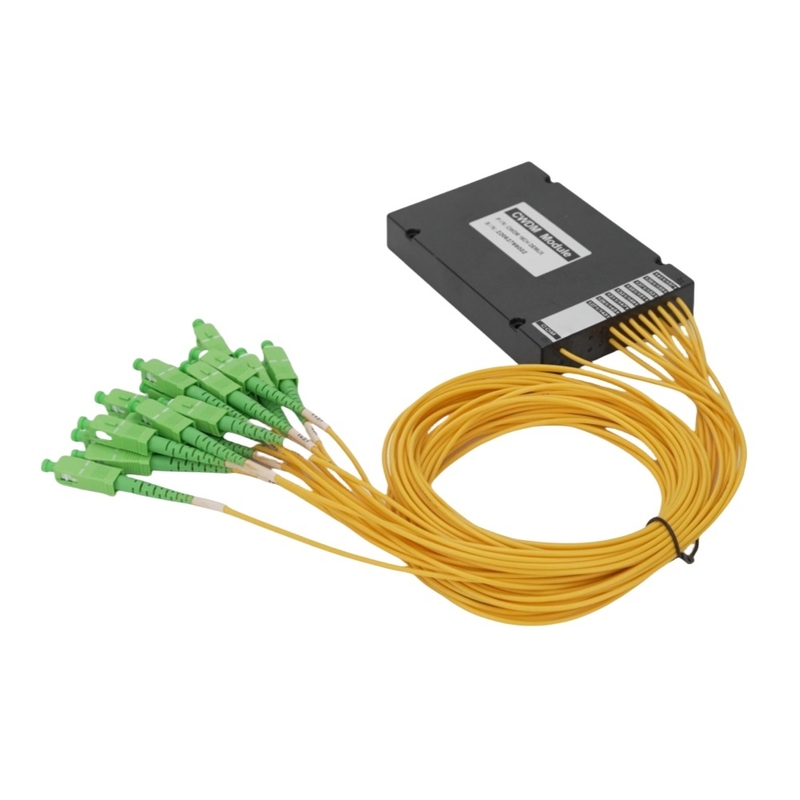

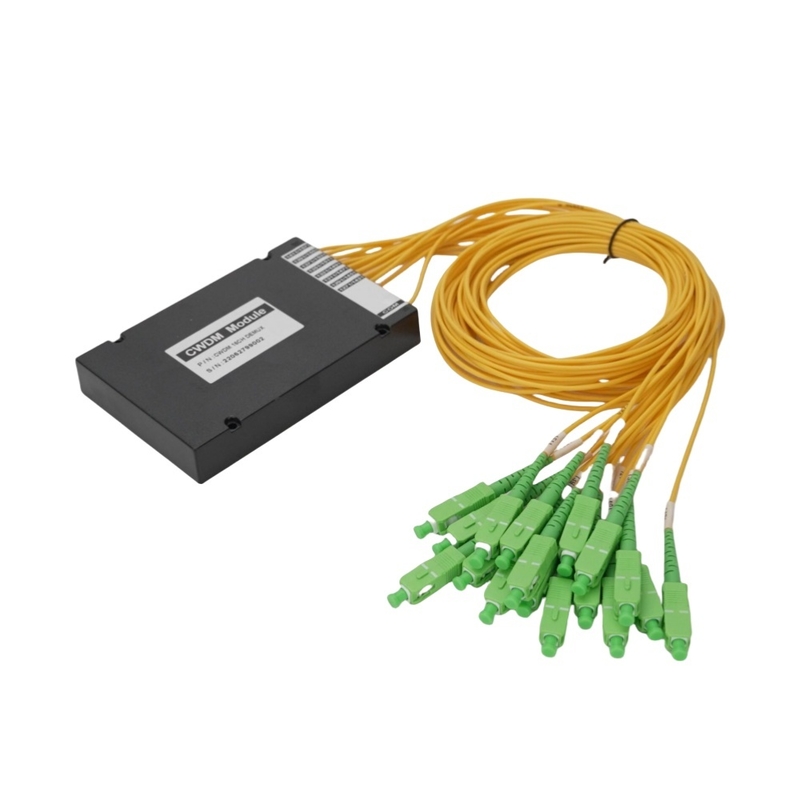

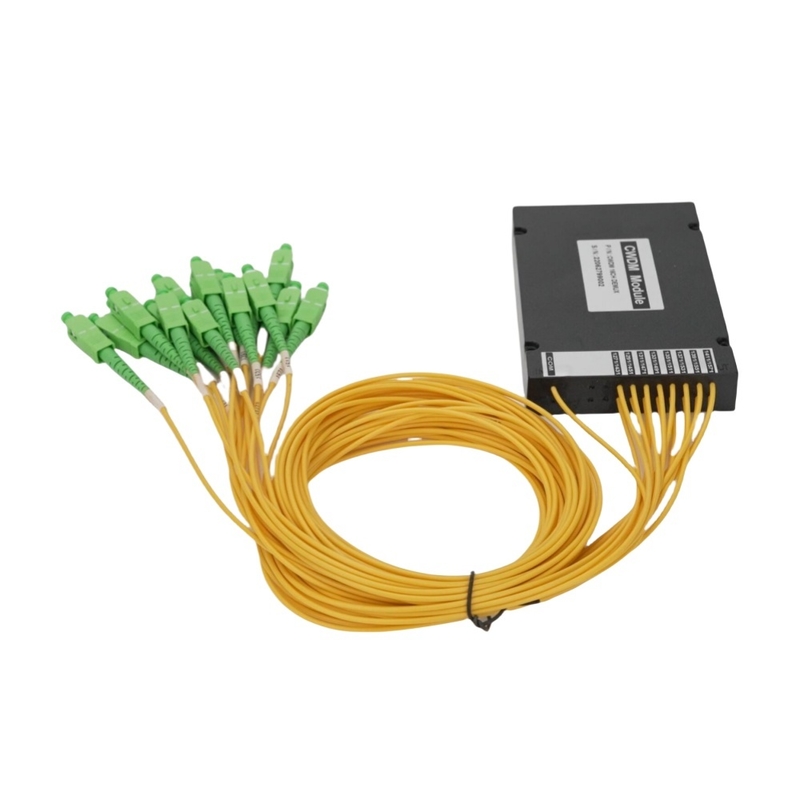

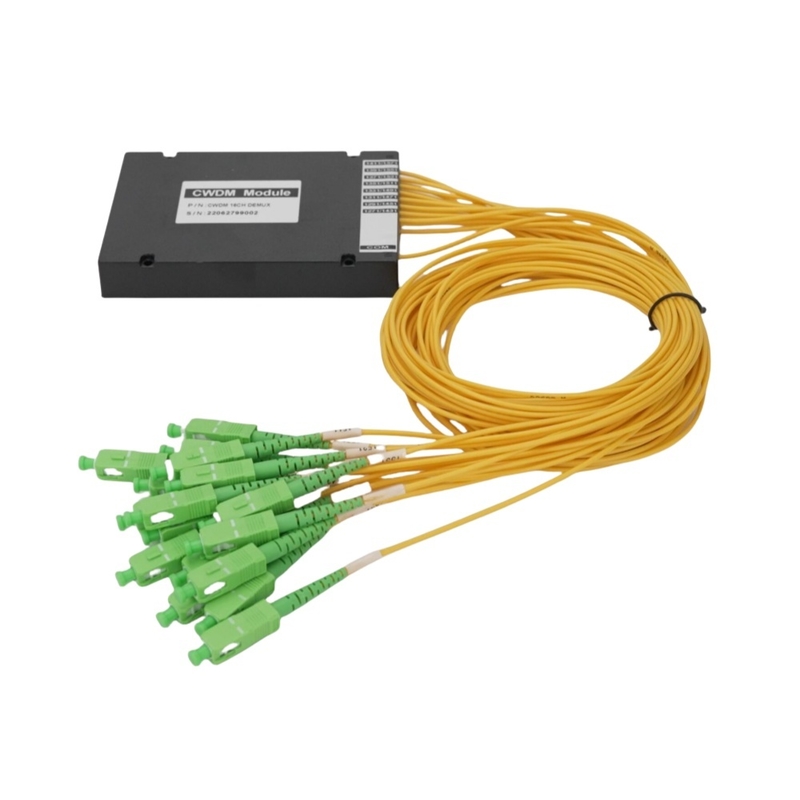

16CH CWDM Mux Demux Module Compatible with All Major Brands of CWDM Transceivers for CWDM OADM Performance

16CH CWDM Mux Demux Module‌ – A high-performance, universally compatible solution for ‌CWDM networks‌, seamlessly integrating with ‌all major brands of CWDM transceivers‌. Ideal for ‌CWDM OADM (Optical Add-Drop Multiplexer)‌ applications, this module ensures efficient wavelength management with minimal signal loss.

‌Key Features:‌
✔ 16-Channel CWDM‌ – Supports up to 16 wavelengths (1270nm–1610nm) for efficient bandwidth utilization.
✔ ‌Monitor & Expansion Port‌ – Enables network diagnostics and easy integration with additional modules.
✔ ‌Low Insertion Loss (4.5dB)‌ – Minimizes signal degradation for reliable long-distance transmission.
✔ ‌LC/UPC Single-Fiber ABS Enclosure‌ – Compact, durable housing ideal for space-constrained deployments.
✔ ‌High-Density Network Solutions‌ – Perfect for telecom, data centers, and enterprise networks.

‌Applications:‌
• Fiber optic backbone networks
• 5G infrastructure
• Data center interconnects (DCI)
• Enterprise/Carrier-grade CWDM systems

Engineered for performance and flexibility, this ‌CWDM Mux Demux module‌ delivers cost-effective, future-proof solutions for growing bandwidth demands.

Product specification

Channels	1x4	1x8	1x16	1x18
Insertion Loss	<1.5dB	<2.4dB	<4.8dB	<5.4dB

Wavelength Range	1270-1610nm	Technology	TFF (Thin Film Filter)
Channel Spacing	20nm	Passband Ripple	≤0.5dB
Channel Passband	ITU±6.5nm	Channel Isolation	Adjacent ≥30dB Non-adjacent ≥45dB
Polarization Dependent Loss	≤0.2dB	Polarization Mode Dispersion	≤0.1ps
Directivity	≥50dB	Return Loss	≥45dB
Optical Power Handling	≤500mW	Temperature	Operating -40 to 85°C Storage -40 to 85°C
Fiber Type	SMF-28e+	Connector	LC/SC/FC or other
Net Weight	0.25kg	Package dimensions	1008010mm 1208018mm Or other

Package Dimension

Note:Fiber diameter can be 0.9mm/2.0mm/3.0mm. Fiber length is 1M or others. Connector can be LC/SC/FC, or others. If you want to order, please check with us first.

Order information

P/N: CWDM-ABS-XCH-①-②-③-④-⑤-⑥

When you inquire, please provide the correct P/N number according to our ordering information, and attach the appropriate description would be better. If need any connector, we do not recommend choosing a 250μm bare fiber pigtail.

①	②	③	④	⑤	⑥
Wavelength	R- Wavelength	Fiber Type	Pigtails Diameter	Fiber Length	Connector
1270 nm 1290 nm … 1590 nm 1610 nm Or 1271 nm 1291 nm … 1591 nm 1611 nm	A: 1270~1610 B: 1270~1450 C: 1470~1610 D: 1271~1611 E: 1271~1451 F: 1471~1611	1: SMF-28e X: Others	25:250μm 90:900μm XX: Others	05:0.5m 10:1.0m 15:1.5m XX: Others	00:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC ST: ST/PC XX: Others

Part Number Example: CWDM-ABS-16CH-A-1-90-10-LP

Description: 16CH CWDM Multiplexer ABS box type, Wavelength 1270~1610nm,SMF-28e fiber, 0.9mm OD loose tube,1.0m length fiber pigtails, LC/PC connectors at all ports.

Ordering Information for Custom Parts:

If you need to customize other specifications, please provide detailed description for your requirement.
