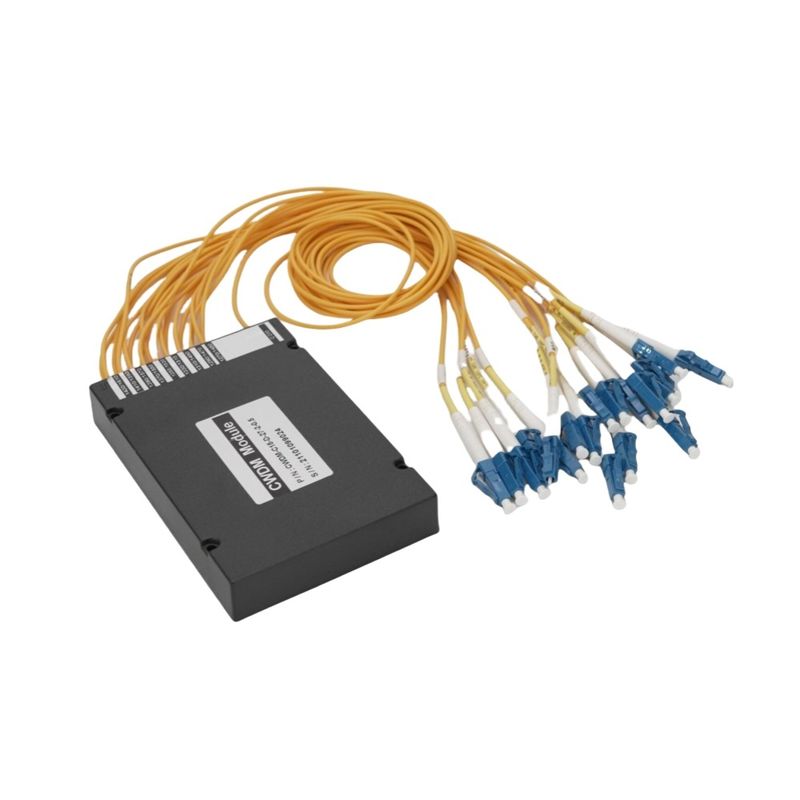

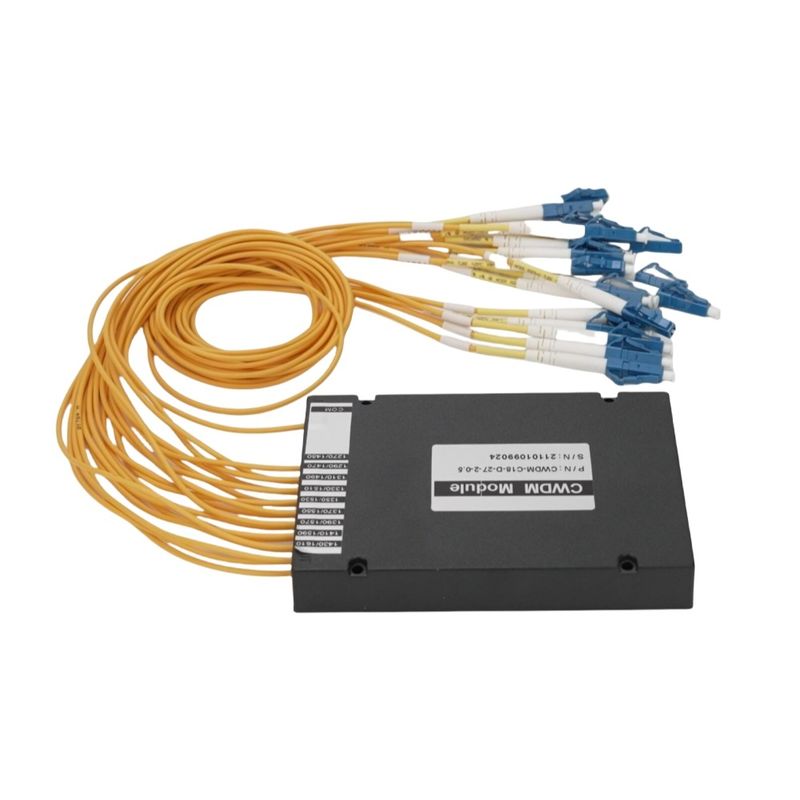

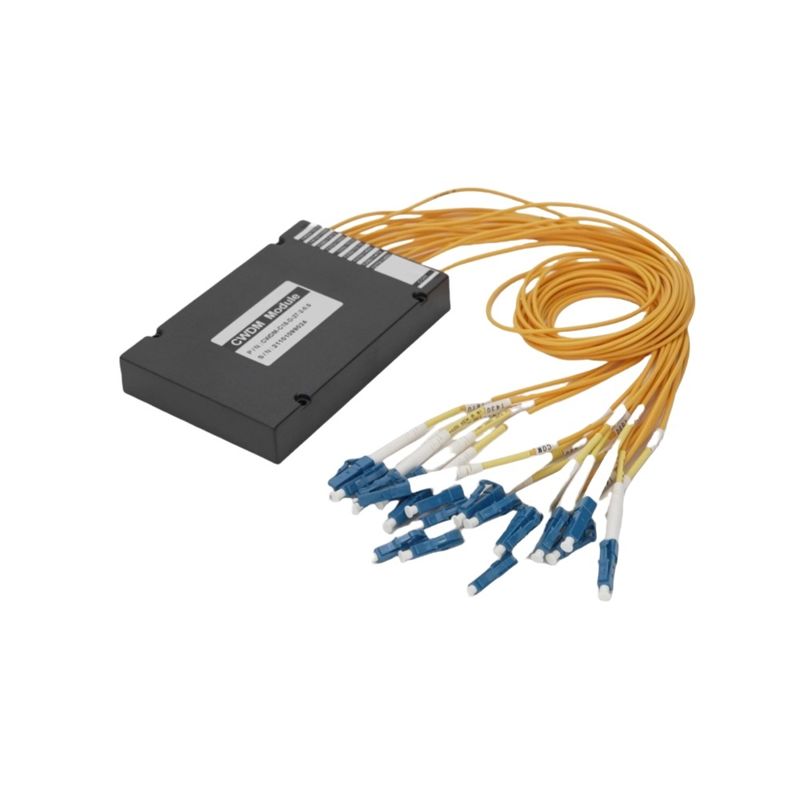

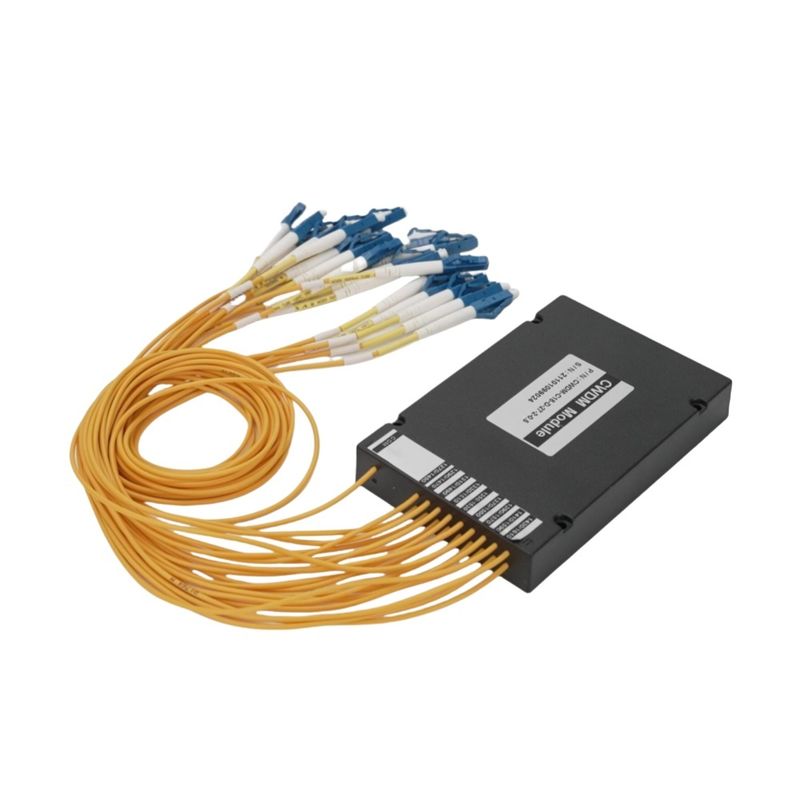

16 Channel Single Fiber CWDM Mux Demux Expansion and Monitor Ports 4.5dB Typical IL LC UPC

Optimize Your Fiber Network Efficiency
This 16-channel single fiber CWDM Mux Demux module delivers high-performance wavelength division multiplexing for scalable network solutions. Engineered with monitor ports for real-time signal inspection and expansion ports for future capacity upgrades, it ensures maximum flexibility in dense wavelength division multiplexing (DWDM/CWDM) deployments.

Key Features & Benefits:
* Ultra-Low Insertion Loss: 4.5dB typical IL maximizes signal integrity
* Critical Monitoring: Integrated monitor ports enable live troubleshooting
* Future-Proof Design: Expansion ports simplify channel upgrades
* Single-Fiber Bidirectional Operation: Saves fiber infrastructure costs
* Industrial-Grade Reliability: LC/UPC connectors with >40dB return loss
* ABS Housing: Rack-mountable chassis for harsh environments

Technical Specifications

• Channels: 16 (ITU-T G.694.2 Standard)
• Fiber Type: Single Fiber (Bidirectional)
• IL: 4.5dB (Typical) | PDL: ≤0.3dB | RL: >40dB
• Port Configuration: Monitor + Expansion Ports
• Connectors: LC/UPC
• Operating Temp: -5°C to +75°C
• Dimensions: ABS Box (Standard 1U Rack Mount)

Ideal Applications
* Metro/Access Network Expansion
* FTTx Systems & Cellular Backhaul
* Enterprise Network Bandwidth Scaling
* PON Monitoring & Test Access Points

Why Choose This CWDM Module?
1. Our 16ch CWDM multiplexer demultiplexer reduces operational costs through:

2. Fiber Resource Optimization (50% fiber reduction vs dual-fiber design)

3. Zero Downtime Monitoring with accessible test points

4. Scalable Architecture supporting incremental channel adds

5. Plug-and-Play Deployment with industry-standard LC/UPC interfaces
