Name: WDM GPON+XGSPON High Isolation Low Insertion Loss
Brand: Guangdong Huajiayu Technology Co., Ltd
SKU: WDM-GPON-XGSPON
Price: 500.00 USD
Availability: InStock

Home > Products > CWDM MUX DEMUX >

WDM GPON+XGSPON High Isolation Low Insertion Loss

High Isolation WDM GPON

Low Insertion Loss WDM GPON

WDM GPON+XGSPON

Place of Origin:

China

Brand Name:

HJY

Certification:

CE, ROHS, FCC ISO9001

Model Number:

WDM-GPON-XGSPON

Request A Quote

Product Details

Highlight:

High Isolation WDM GPON

Low Insertion Loss WDM GPON

WDM GPON+XGSPON

Payment & Shipping Terms

Minimum Order Quantity

10 pcs

Price

1~999

Packaging Details

Roll, Neutrial Packing or with OEM LOGO

Delivery Time

5~8 working days

Payment Terms

T/T, Western Union, L/C

Supply Ability

100,000 pcs

Customizable 8CH 1270 to 1410nm CWDM MUX DEMUX for Dual Fiber Data Transmission with Advanced Thin Film Coating

Get Best Price

Video

Precision Tuning and Flexible Port Options for High Speed Data Transmission with CWDM MUX DEMUX in 1470 to 1610nm Wavelengths

Get Best Price

Video

Custom Configurations Available for 1470 to 1610nm CWDM MUX DEMUX for High Speed Data Transmission

Get Best Price

Video

1470 to 1610nm CWDM MUX DEMUX for Dual Fiber Data Transmission with Advanced Thin Film Coating Technology

Get Best Price

Contact Now

Product Description

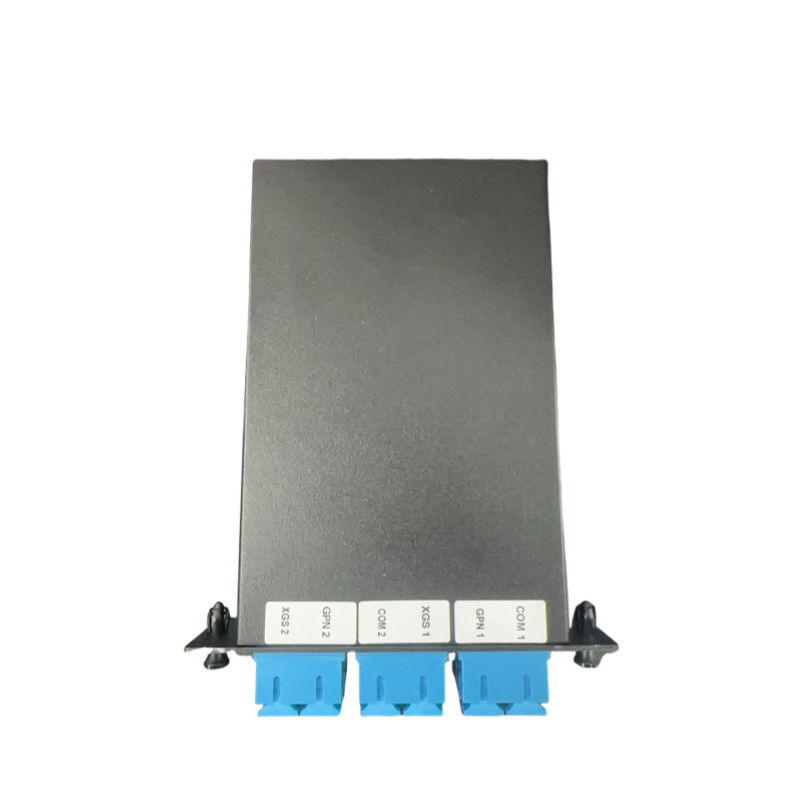

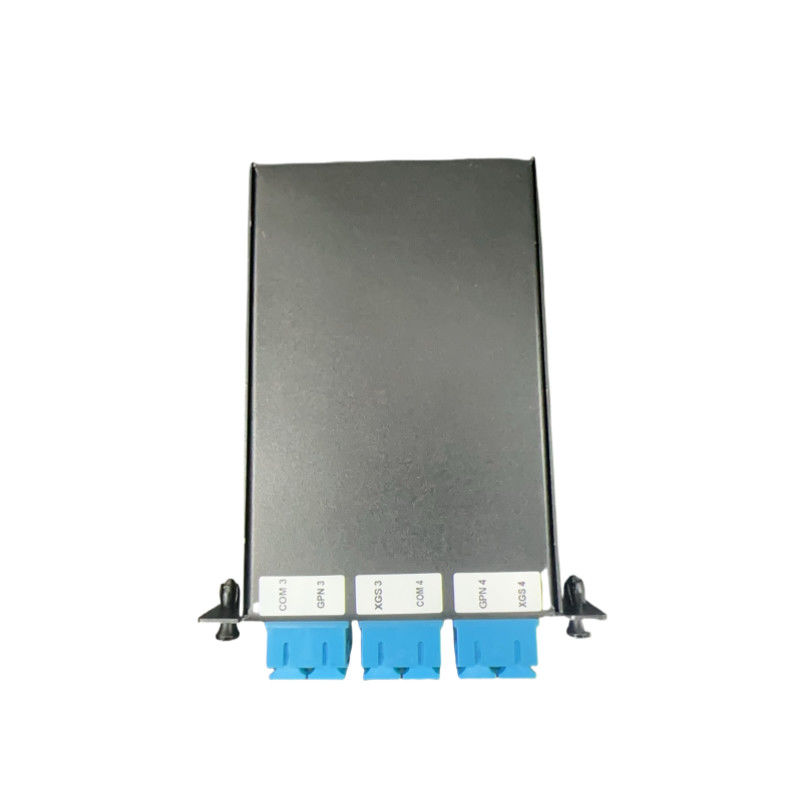

Plug and Play Design 4 circuits WDM Mux Demux LGX Box with Superior Signal Integrity and Low Insertion Loss

Experience seamless optical networking with our Plug and Play Design 4 circuits WDM Mux Demux LGX Box. This innovative device is engineered for easy installation, eliminating complex setup procedures. Its superior signal integrity ensures stable and high - quality data transmission, minimizing signal degradation.

Featuring a remarkably low insertion loss, it maximizes the efficiency of your optical network, reducing power consumption and enhancing overall performance. Ideal for both small - scale and large - scale network deployments, whether in enterprise settings or data centers, this LGX box is a reliable choice for optimizing your multiplexing and demultiplexing operations.

Duplex MUX and DEMUX

Multiplexer (MUX) and demultiplexer (DEMUX) are combined together into a single piece of equipment for Dual Fiber data transmission over two fibers.

Dual Fiber Transmission should be used in pairs, MUX/DEMUX Portfor specific wavelength must be opposite WDM.

HJY WDM Mux/Demux is a passive technology, it allows for any protocol to be transported over the link, as long as it is at a specific wavelength (i.e. T1 over fiber at 1570nm transported alongside 10Gbps Ethernet at 1590nm). This allows for long-term future proofing of the networking infrastructure because the multiplexers simply refract light at any network speed, regardless of the protocol being deployed.

HJY provides a complete portfolio of WDM Mux Demux and Optical Add Drop Multiplexer (OADM) units to suit all applications such as: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV. And we provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice.

Maximize Your Fiber with WDM Network

Dual fiber can be shared for multiple different data or services in WDM network. It maximizes the usefulness of fiber and generates substantial savings.

Technical Specification

Performance Specifications

Parameter		Single mode Edge Filter WDM
Com Wavelength Range(nm)		1260–1660 nm
Port1-GPON Wavelength Range(nm)		1290-1330&1480-1500
Port2-XGS Wavelength Range(nm)		1260~1280&1575~1581
Insertion Loss,dB	Port1	≤1.1(with Connector)
	Port2	≤1.1(with Connector)
Isolation(GPON) (dB)		≥45
Isolation(XGS) (dB)		≥45
Polarization Dependent Loss (dB)		≤0.10
PMD (ps)		≤0.10
Thermal Stability (dB/℃)		≤0.005
Return Loss (dB)		≥45
Directivity (dB)		≥50
Maximum Power Handing (mw)		300
Operating Temperature (℃)		-5 to 95°C
Storage Temperature (℃)		-40∽+85
Max. Tensile Load(N)		5
Fiber Type/Length(m)		Corning SMF-28e
loose tube Color and Connector		SC/UPC
Package Dimension (mm)		LGX
