Product Description

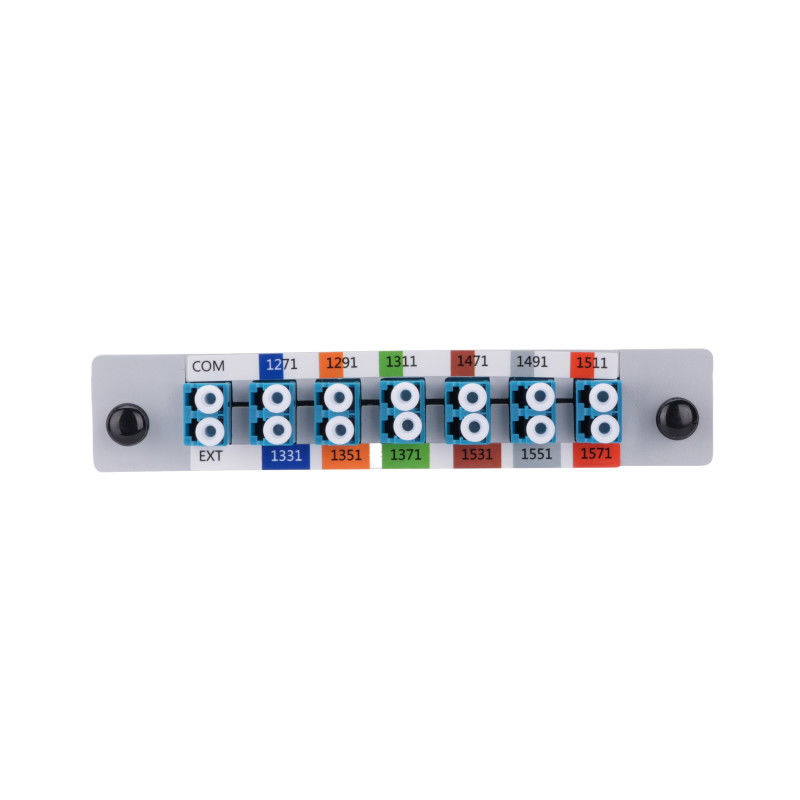

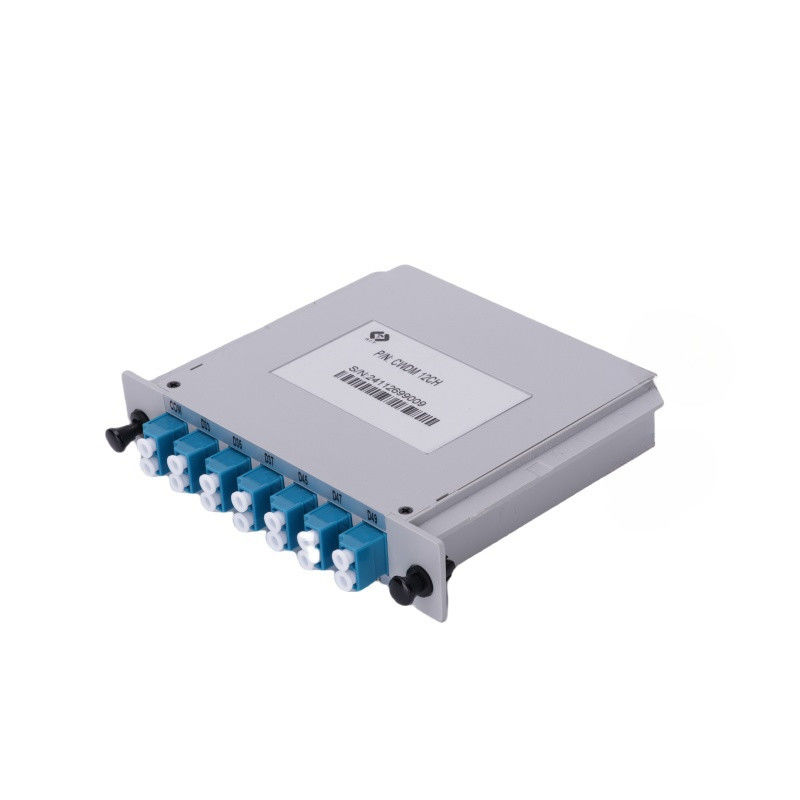

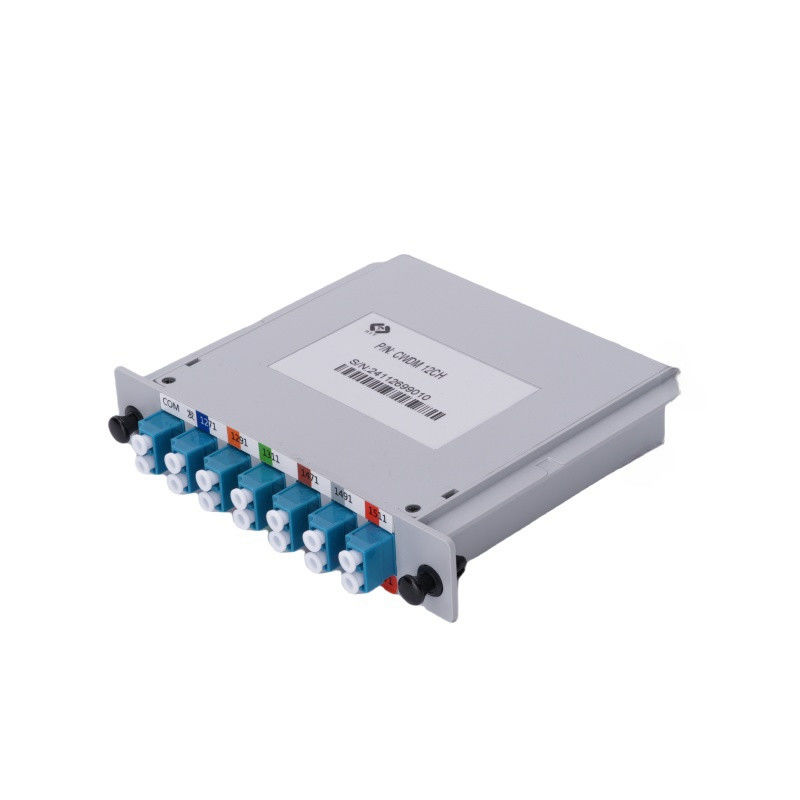

12 Channel CWDM MUX or DEMUX LGX Box Plastic Simplex BIDI Transmission for Telecom Communitcation

Introducing our 12 Channel CWDM MUX or DEMUX LGX Box, crafted from durable plastic, designed specifically for telecom communication. This compact yet powerful device features simplex BIDI (Bidirectional) transmission, simplifying fiber optic connections and reducing infrastructure costs.

With 12 channels, it offers a practical solution for multiplexing or demultiplexing optical signals in telecom networks. Whether you need to combine multiple wavelengths into a single fiber or separate them, this LGX box has got you covered. It ensures reliable data transfer, meeting the high - demand requirements of modern telecom applications. Its easy - to - install design makes it a go - to choice for network upgrades or new installations, providing seamless integration into existing telecom setups.

Simplex CWDM MUX and DEMUX

Multiplexer (MUX) and demultiplexer (DEMUX) are combined together into a single piece of equipment for bi-directional data transmission over one fiber.

HJY CWDM Mux/Demux is a passive technology, it allows for any protocol to be transported over the link, as long as it is at a specific wavelength (i.e. T1 over fiber at 1570nm transported alongside 10Gbps Ethernet at 1590nm). This allows for long-term future proofing of the networking infrastructure because the multiplexers simply refract light at any network speed, regardless of the protocol being deployed.

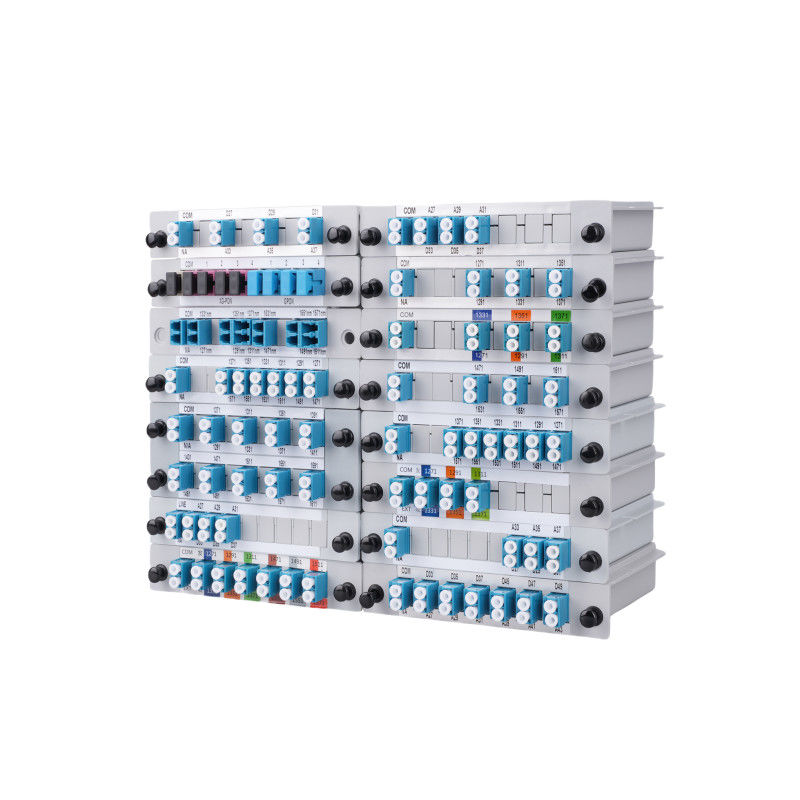

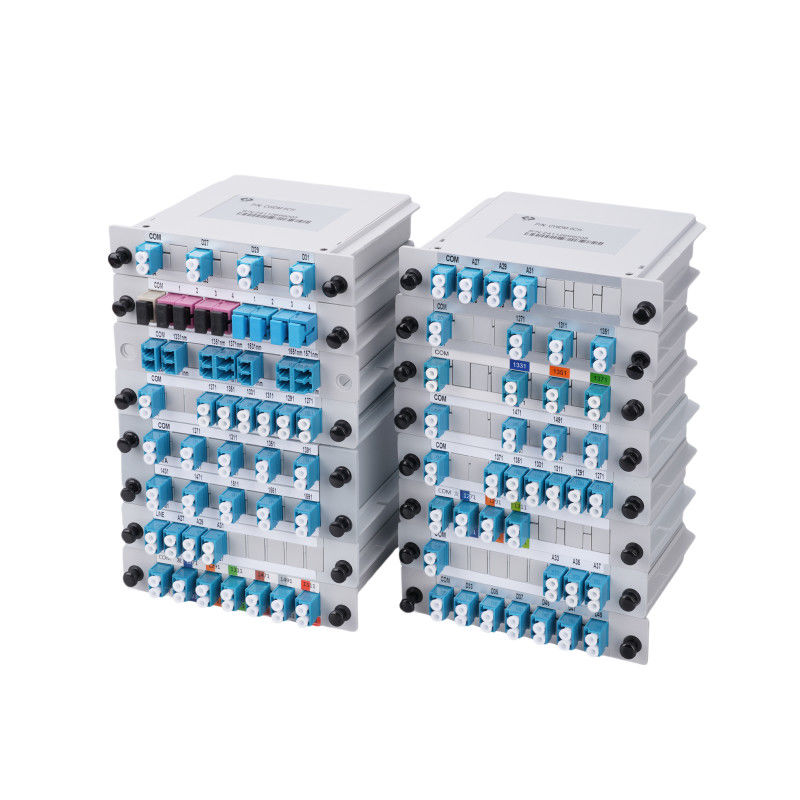

HJY provides a complete portfolio of CWDM Mux Demux and Optical Add Drop Multiplexer (OADM) units to suit all applications such as: Gigabit & 10G Ethernet, SDH/SONET, ATM, ESCON, Fibre Channel, FTTx and CATV. And we provide optional port configurations such as: Express Port, Monitor Port, 1310nm passband port and 1550nm port for these multiplexers according to customer choice.

Product Specification

Parameters			Unit	Specifications
Channel Count			Ch	12CH
Channel Center Wavelength			nm	1271nm-1371nm；1471nm-1571nm
Channel Passband		Min	nm	±6.5
Insertion Loss		Max	dB	<2.5
Isolation	Adjacent Channel	Min	dB	30
	Non-Adjacent Channel	Min	dB	40
Passband Ripple		Max	dB	0.3
Polarization Dependent Loss		Max	dB	0.1
Directivity		Min	dB	55
Return Loss		Min	dB	50
Polarization Mode Dispersion		Max	ps	0.1
Power Handling		Max	mW	500
Pigtail and Connector Type				LC/UPC
Fiber Type					SMF-28e
Operating Temperature			°C		-30 ~ 75
Storage Temperature			°C		-40 ~ 90
Package Dimension			mm		13010025 mm

12CH CWDM Modules 1271-1371nm, 1391-1491nm Mux/Demux Singel Fiber Low Insertion Loss High Isolation And Directivity Accept Customization 1
